| Standard | Astm A580, A493 / Asme Sa580, Sa313, Sa555, Sa493, Ams 5514 |
|---|---|
| Length | 0.125", 72 |
| Diameter | 10 Microns 1.0 Mm, 0.0004" To 0.040" |
| Technique | Cold Rolled, Hot Rolled |

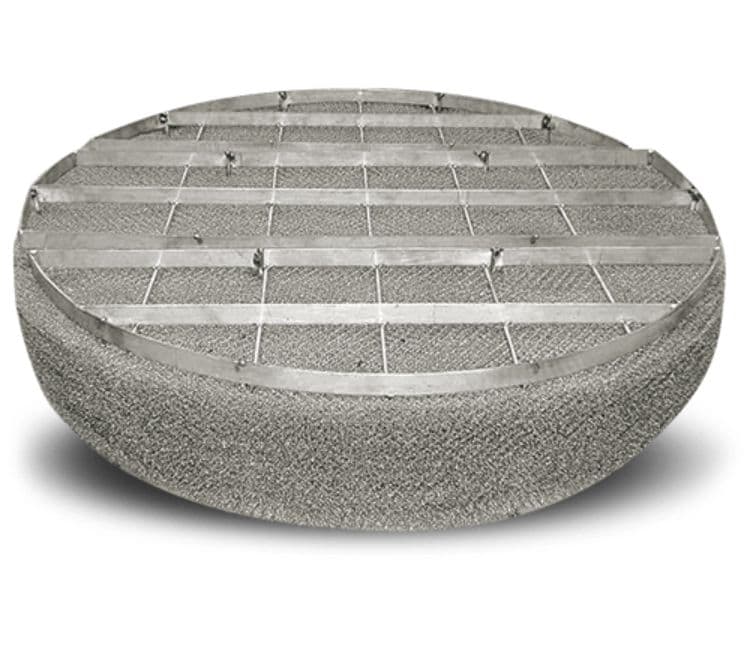

Mesh Demister Manufacturers In India
Timex Metals is a leading Mesh Demister Manufacturer, producing high-efficiency mist eliminators using stainless steel, polypropylene, and other corrosion-resistant materials. These demisters are formed from knitted wire mesh layers housed in support grids to capture entrained liquid droplets from vapor streams. Designed for vertical or horizontal installation, mesh demisters are ideal for use in distillation towers, evaporators, scrubbers, and gas separators. They are available in round, rectangular, and custom shapes with various mesh densities to match specific process requirements.
Mesh Demister – Material and Grades Table
| Material | Grade / Standard | Pad Thickness (mm) | Wire Diameter (mm) | Approx. Weight per Meter (kg/m²) |
|---|---|---|---|---|
| Stainless Steel | ASTM A240 TP304 | 100 | 0.20 | 6.5 |
| Stainless Steel | ASTM A240 TP304L | 150 | 0.23 | 8.4 |
| Stainless Steel | ASTM A240 TP316 | 100 | 0.20 | 7.1 |
| Stainless Steel | ASTM A240 TP316L | 150 | 0.23 | 9.2 |
| Monel Alloy | ASTM B164 | 100 | 0.22 | 7.8 |
| Inconel Alloy | ASTM B168 | 150 | 0.25 | 10.6 |
Type of Sub-products

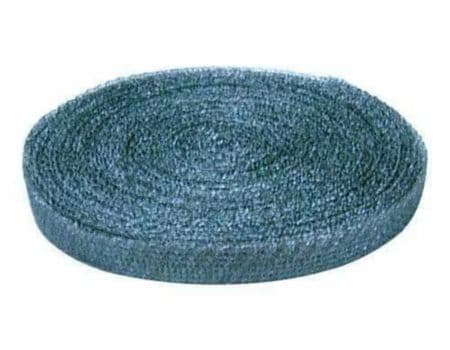

Standard Wire Mesh Demister Pad Standard Wire Mesh Demister Pad
Made with layered knitted wire mesh in a flat, cylindrical, or rectangular form. It is the most common type, designed for general purpose mist elimination in vertical flow systems.

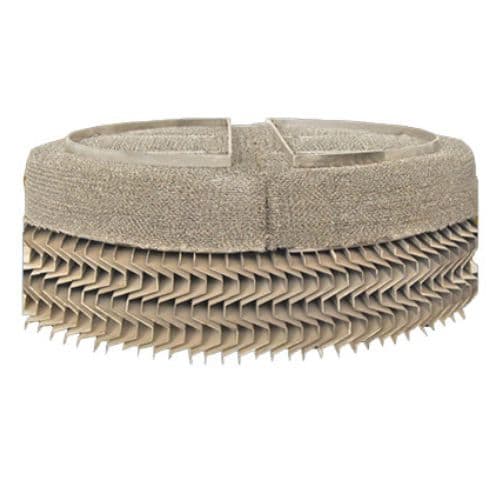

Vane Type Mesh Demister Vane Type Mesh Demister
Combines wire mesh with corrugated vane blades for dual-stage separation—effective in high-load mist or foam service. Offers enhanced separation and drainage.
