How is Monel K400 different from other nickel alloys like Inconel?

Monel K400 is a special alloy of nickel and copper as opposed to Inconel which is a nickel Chromium superalloy. Due to a high proportion of copper, Monel is more resistant to reducing acids and sea water. Another alloy is Inconel which is an alloy that is valued in its strength and corrosiveness at very high temperatures.

Does cold working a Monel K400 plate affect its magnetic properties?

Yes, cold working may have a slight influence on the magnetic properties of Monel K400 plate. Although this alloy is not magnetic in its annealed form, the cold working stress can cause a little magnetism. This is one of the main factors to take into account when using applications which demand an entirely non magnetic substance.

Can Monel K400 be used effectively in cryogenic applications?

Yes, Monel K400 is very applicable in cryogenic applications because its mechanical properties are very good and stable at low temperatures. It does not lose its ductility, strength and toughness unlike many other metals which become brittle. This renders it the best in the management of liquefied gases as well as other constituents in the cryogenic systems.

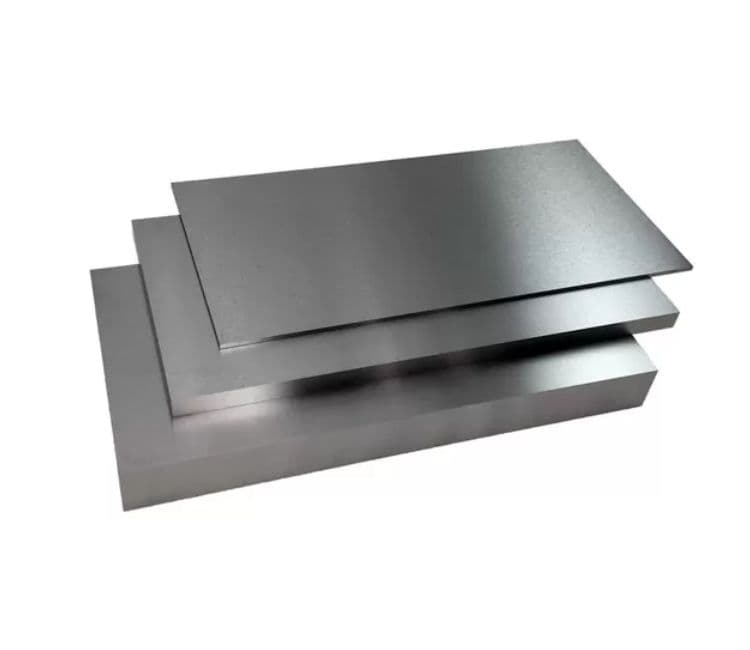

Monel 400 Plate Manufacturer In India Supplying Astm B127 / Asme Sb127 Standard Plates For Industrial Applications

Name: Monel 400 Plate Manufacturer In India Supplying Astm B127 / Asme Sb127 Standard Plates For Industrial Applications
Brand: United Stainless Llp
Availability: InStock
Rating: 4 (16 reviews)

₹50 - ₹153

Minimum Order : 100 piece

Customization as per requirements

Specification Details
Plate Standards	Astm A240, / Asme Sa240
Material Grades	405, 409, 409l, 410, 410s, 415, 416, 430, 431, 439, 436, 436l, 441, 446, 430ti, 409m, 410db, 420
Surface	2b, 2d, Ba, No.1, No.4, No.8, 8k, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching, Etc
Finish	Hot Rolled Plate (hr), Cold Rolled Plate (cr), 2b, 2d, Ba No(8), Satin (met With Plastic Coated)

Monel 400 Plate Manufacturer in India Delivering Export-Quality Plates Conforming to ASTM, ASME & EN Standards

United Stainless LLP is a prominent Monel Plates K400 Manufacturer in India that manufactures nickel-copper alloy plates which are highly resistant to corrosion, seawater and chemical attack. Monel Plates K400 are common to marine engineering, heat exchangers, chemical processing equipment, oil & gas systems and pump components where durability and reliability are very important. These plates are good in strength and toughness over a large range of temperatures.

Monel Plates K400, supplied in a reputable B2B marketplace, come in a number of different thicknesses and surface finishes to suit the requirements of the industry. Where corrosion resistance is needed in general, Monel Plate continues to be a favorite but where greater mechanical strength and age-hardening performance are necessary, Monel Plate K500 is used.

Monel Plates K400 are known to be providing a stable performance under harsh conditions that may include salt water, acid and alkaline conditions. Inconel Plate is also used as an alternative material in the applications that are subjected to high temperatures and oxidation. Since they are a trusted Monel Plates K400 Supplier In India, the plates are produced according to the international standards, with no error in dimension and with a high service life.

Material & Grades of Monel Plates K400

Monel Plates K400 come in various grades and thickness lines that are used in resistant corrosion and pressure bearing. Selection of the correct grade guarantees optimum performance and long service period.

Material	Grade / Standard	UNS No.	Thickness (mm)	Width (mm)	Typical Applications
Monel Alloy	K400	N04400	1.0 – 50.0	1000 – 2000	Marine components
Monel Alloy	K500	N05500	3.0 – 60.0	1000 – 2000	High-strength parts
Monel Alloy	Commercial Monel	N04400	6.0 – 100.0	1000 – 2500	Chemical vessels
Nickel Alloy	Inconel Plate	Various	2.0 – 80.0	1000 – 2000	High-temperature units

Key Features & Advantages

Excellent resistance to seawater and chemicals
Good mechanical strength and toughness
Suitable for marine and chemical industries
Performs well across a wide temperature range
Long service life with minimal maintenance
Available in standard and custom-cut sizes

Monel K400 Plate Chemical Composition

Monel K400 Plates are corrosion resistant due to the presence of carbon, silicon, sulfur, and other elements.

Monel K400 Plate Chemical Composition
Grade	Ni	Fe	C	Mn	Si	Cu	Al	S
Monel 400	63.0 min	1.0 – 2.5	0.3 max	2.0 max	0.5 max	28.0 – 34.0	0.50 max	0.02 max

Monel K400 Plate Mechanical Properties

Mechanical Properties of Monel K400 Plates are listed below to assist you understand the product's durability.

Monel K400 Plate Mechanical Properties
Grade	Density	Melting Point	Tensile Strength Psi, Mpa	Yield Strength (0.2%Offset)	Elongation
Monel 400	8.8 g/cm3	1350 °C (2460 °F)	80,000, 550	240 Mpa	40 %

Monel K400 Plate Equivalent Grade

Our dedication to quality guarantees that every Monel 400 Plate meet the highest standards, establishing us as a reliable Monel K400 Plate Manufacturer in India.

Monel K400 Plate Equivalent Grade
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	AFNOR	EN
Monel K400	2.4360	N04400	NW 4400	NA 13	NU-30M	NiCu30Fe

Monel K400 Plate Size Chart

Monel K400 Plates may be customized in any thickness to meet the needs of the client; the table below shows the standard thickness of Monel K400 Plate.

Monel K400 Plate Size Chart
Dimensions (mm)	Thickness (mm)
2000 x 1000 x 3	3
2500 x 1250 x 3	3
3000 x 1500 x 3	3
4000 x 2000 x 3	3
2000 x 1000 x 4	4
2500 x 1250 x 4	4
3000 x 1500 x 4	4
4000 x 2000 x 4	4
2000 x 1000 x 5	5
2500 x 1250 x 5	5
3000 x 1500 x 5	5
2000 x 1000 x 6	6
2500 x 1250 x 6	6
3000 x 1500 x 6	6
4000 x 2000 x 6	6
2000 x 1000 x 8	8
2500 x 1250 x 8	8
3000 x 1500 x 8	8
2000 x 2000 x 10	10
2500 x 1250 x 10	10
3000 x 1500 x 10	10

Type of Sub-products

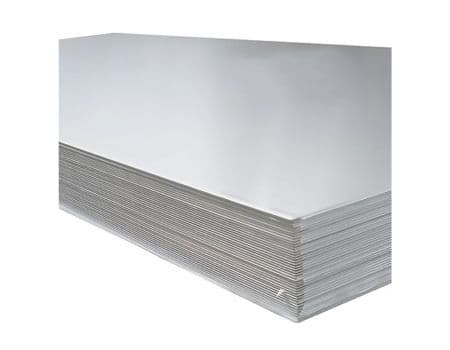

Monel K400 Hot Rolled Plate
Monel K400 Hot Rolled Plate
Engineered for superior strength and durability, the Monel K400 Hot Rolled Plate delivers exceptional corrosion resistance in demanding industrial environments. Its precise manufacturing and robust mechanical properties ensure reliable performance in marine, chemical, and high temperature applications.

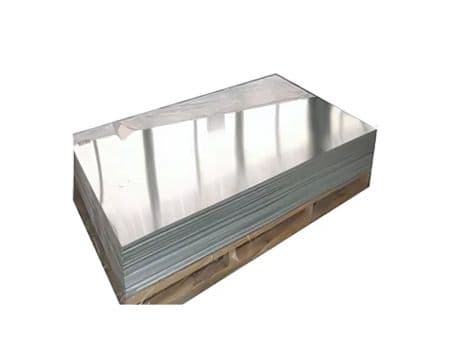

Monel K400 Polished Plate
Monel K400 Polished Plate
Designed for exceptional durability and corrosion resistance, the Monel K400 Polished Plate offers a smooth, superior surface finish for demanding industrial applications. Its precision manufacturing ensures consistent quality and reliable performance in chemical, marine, and high temperature environments.
