What is the primary difference between Monel K500 and Monel 400?

The main distinction is that Monel K500 can be age hardened with the additional aluminum and titanium. This heat treatment makes this very strong and hard and its tensile strength is about two times more than that of Monel 400. This attributes to the fact that K500 is a better choice on high stress applications.

Why is Monel K500 a critical material for propeller shafts and pump components?

The unique super alloy of Monel K500 is very strong and has a good corrosion resistance, which makes it perfect in these strenuous uses. It is resistant to the corrosion of seawater and high mechanical loads of the continuous operation. This is durable to prolong their service life as well as minimize requirements of maintenance in the sea.

Can Monel K500 plates be welded, and what precautions are necessary?

Yes, Monel K500 plates are weldable and it takes a particular procedure to retain its properties. The plates should also be welded in the solution annealed state to avoid hot cracks. Welding requires a follow up treatment of age hardening heat to reinstate alloy maximum mechanical strength.

Monel K500 Plate Manufacturer In India Supplying Astm B127 / Asme Sb127 Standard Plates For Marine & Offshore Service

Name: Monel K500 Plate Manufacturer In India Supplying Astm B127 / Asme Sb127 Standard Plates For Marine & Offshore Service
Brand: United Stainless Llp
Availability: InStock
Rating: 4 (16 reviews)

₹32 - ₹169

Minimum Order : 100 piece

Customization as per requirements

Specification Details
Plate Standards	Astm A240, / Asme Sa240
Material Grades	405, 409, 409l, 410, 410s, 415, 416, 430, 431, 439, 436, 436l, 441, 446, 430ti, 409m, 410db, 420
Surface	2b, 2d, Ba, No.1, No.4, No.8, 8k, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching, Etc
Finish	Hot Rolled Plate (hr), Cold Rolled Plate (cr), 2b, 2d, Ba No(8), Satin (met With Plastic Coated)

Monel K500 Plate Manufacturer in India Delivering Export-Quality Plates Conforming to ASTM, ASME & EN Standards

United Stainless LLP is a major Monel Plates K500 Manufacturer in India, which provides age hardenable nickel copper alloy plates that are used in high strength and resistance to corrosion. Monel Plates K500 have a higher level of mechanical properties than the other standard Monel grades, hence, they are best used in marine shafts, components of pumps, parts of the valves, and equipment used in the oil and gas industry to withstand the aggressive environment.

Monel Plates K500, also available in reliable B2B platform, will be made in controlled thicknesses and finish surfaces to effective engineering requirements. Monel Plate is largely chosen in general corrosion-resistant applications, and Monel Plate K400 is chosen in those applications where extreme toughness and seawater corrosion resistance are needed.

The Monel Plates K500 line is a combination of excellent strength and ability to resist chloride-related corrosion which allows them to have extended longevity of service in harsh environments. Inconel Plate is a material that is mostly regarded as an alternative in high-temperature systems or when there is a possibility of oxidation. These plates meet international standards of consistency and reliability as a trusted Monel Plates K500 Supplier In India.

Material & Grades of Monel Plates K500

Monel Plates K500 are available in specific grades and thickness ranges tailored for high-load and marine applications. Choosing the correct grade ensures enhanced mechanical performance and corrosion resistance.

Material	Grade / Standard	UNS No.	Thickness (mm)	Width (mm)	Typical Applications
Monel Alloy	K500	N05500	3.0 – 60.0	1000 – 2000	Marine shafts
Monel Alloy	K400	N04400	1.0 – 50.0	1000 – 2000	Chemical vessels
Monel Alloy	Commercial Monel	N04400	6.0 – 100.0	1000 – 2500	Oil & gas equipment
Nickel Alloy	Inconel Plate	Various	2.0 – 80.0	1000 – 2000	High-temperature units

Key Features & Advantages

High tensile and yield strength
Excellent resistance to seawater and chemicals
Age-hardenable for improved hardness
Suitable for marine and oil & gas applications
Long service life in harsh environments
Available in standard and custom plate sizes

Monel K500 Plate Chemical Composition

Monel K500 Plates are corrosion resistant due to the presence of carbon, silicon, sulfur, and other elements.

Monel K500 Plate Chemical Composition
Grade	Ni	Fe	C	Mn	Si	Cu	Al	S
Monel K500	63.0 min	05 – 2	0.25 max	1.5 max	0.5 max	27.0 – 33.0	2.3 – 3.15	0.010 max

Monel K500 Plate Mechanical Properties

Mechanical Properties of Monel K500 Plates are listed below to assist you understand the product's durability.

Monel K500 Plate Mechanical Properties
Grade	Density	Melting Point	Tensile Strength Psi, Mpa	Yield Strength (0.2%Offset)	Elongation
Monel K500	8.44 g/cm3	1350 °C (2460 °F)	1,60,000, 1100	790 Mpa	20 %

Monel K500 Plate Equivalent Grade

Our dedication to quality guarantees that every Monel Plate meet the highest standards, establishing us as a reliable Monel K500 Plate Manufacturer in India.

Monel K500 Plate Equivalent Grade
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Monel K500	2.4375	N05500	–	–	–	–	–

Monel K500 Plate Size Chart

Monel K500 Plates may be customized in any thickness to meet the needs of the client; the table below shows the standard thickness of Monel K500 Plate.

Monel K500 Plate Size Chart
Dimensions (mm)	Thickness (mm)
2000 x 1000 x 3	3
2500 x 1250 x 3	3
3000 x 1500 x 3	3
4000 x 2000 x 3	3
2000 x 1000 x 4	4
2500 x 1250 x 4	4
3000 x 1500 x 4	4
4000 x 2000 x 4	4
2000 x 1000 x 5	5
2500 x 1250 x 5	5
3000 x 1500 x 5	5
2000 x 1000 x 6	6
2500 x 1250 x 6	6
3000 x 1500 x 6	6
4000 x 2000 x 6	6
2000 x 1000 x 8	8
2500 x 1250 x 8	8
3000 x 1500 x 8	8
2000 x 2000 x 10	10
2500 x 1250 x 10	10
3000 x 1500 x 10	10

Type of Sub-products

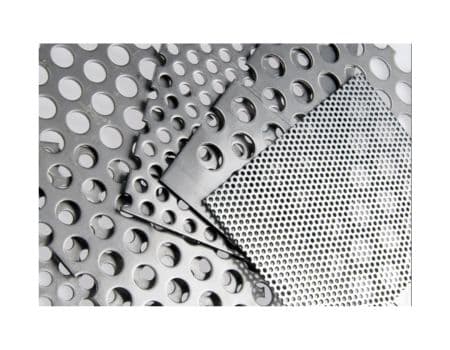

Monel Forged Plate K500
Monel Forged Plate K500
Engineered for high performance applications, this plate delivers exceptional strength and resistance to corrosion and harsh environments. The Monel Forged Plate K500 ensures uniform thickness, superior mechanical stability, and reliable performance in marine, chemical, and aerospace industries.
