| Standard | Astm A580, A313, A493 / Asme Sa580, Sa313 |
|---|---|
| Length | 0.125", 72 |
| Diameter | 10 Microns 1.0 Mm, 0.0004" To 0.040" |
| Technique | Cold Rolled, Hot Rolled |

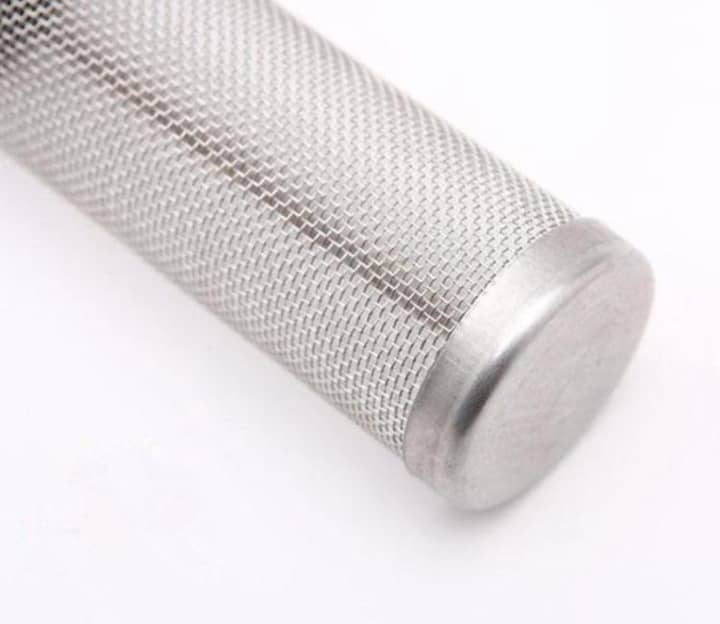

Oil Screen Mesh
Timex Metals is a reputable Oil Screen Mesh Manufacturer that provides high-performance products that are capable of surviving in harsh industrial applications. Oil screen mesh is popular in oil and gas industry to filtrate, control sands and separate solid particles to optimize the performance of equipment and avoid blockage. These meshes are made out of high-quality raw materials and state-of-the-art technology, and offer high resistance to corrosion, heat, and pressure. They have fine openings and durability, thus are versatile to go through drilling and oilfield tasks.
Material and Grades Table – Oil Screen Mesh
| Material / Grade | Standard Sizes (mm) | Weight per Meter (kg/m) | Notes / Applications |
|---|---|---|---|
| Stainless Steel SS 304 | 0.5 – 5.0 | 0.8 – 4.5 | Corrosion-resistant, suitable for general oil filtration applications |
| Stainless Steel SS 316 | 0.5 – 5.0 | 0.85 – 4.8 | Excellent chemical resistance, ideal for harsh oil environments |
| Carbon Steel CS | 1.0 – 6.0 | 1.2 – 5.5 | High strength, commonly used for structural or heavy-duty filtration mesh |
| Brass / Copper | 0.5 – 4.0 | 0.7 – 3.8 | Provides good conductivity and anti-corrosive properties for precision oil screens |
| Monel Alloy | 0.5 – 3.0 | 0.9 – 3.5 | Resistant to acidic and saline environments, long-lasting performance |
Oil screen mesh is a must-have component in the filtration of impurities coming from lubrication and hydraulic systems. Choosing the right material and grade will guarantee a long service life, resistance to corrosion, and are at their best performance. The table is a great tool for the purchasers to make the best decisions and find the products fast through a B2B portal for C12200 Copper Fin Tube and the like.
Type of Sub-products

Flat Panel Screen Mesh Flat Panel Screen Mesh
Flat panel screens feature a uniform, multi layer mesh structure suitable for standard fluid filtration. They are cost effective and easy to replace, widely used in conventional shale shakers. Best for low to medium flow rates where consistent performance is required.

Hook Strip Flat Screen Hook Strip Flat Screen
Hook strip flat screens are built with hooked edges for secure tensioning on shaker beds. They are rigid and durable, commonly used in traditional shale shakers. Suitable for general purpose use in medium duty drilling setups.
