Premium Buttweld 90 Degree Elbows And Steel Coils Hot Rolled Cold Rolled Galvanized Astm A36 A572 Industrial Grade Pipes And Tubes
| Specifications | Astm, Asme, Din, Nfa, Jis |
|---|---|
| Thickness | 4.0mm, 100mm |
| Pipes Size | 1/8” Nb, 24” Nb, 1/4” Od, 24” Od Sizes |
| Tubes Size | 1/2″ Od, 8″ Od |
| Length: | Cut Length, Fix Length, Single Random, Double Random, Required Length |
| End | Plain End, Beveled End, Threaded |
Industrial-Grade Buttweld 90 Degree Elbows and Steel Coils Hot Rolled Cold Rolled Galvanized ASTM A36 A572 Reliable Pipes and Tubes
Nova Steel Corporation is a well-established supplier that fulfils a number of industrial requirements and focuses on quality and safety. The pipes and tubes are useful in engineering, infrastructure, energy and fabrication, as they are strong, durable and flexible. These are pressure-resistant, temperature-resistant, and can withstand mechanical stress products, which are required in the building of structures, transport systems, and electrical equipment.
- The global B2B market demand for high-performance piping solutions is steadily increasing
- Industries prioritize efficiency and long service life in their piping applications
- Pipe and tube manufacturers focus on precise manufacturing and adherence to quality standards
- International standards are followed to meet project-specific requirements
- Pipes and tubes are suitable for both routine and advanced industrial applications
- Customised dimensions and grades are available to match diverse industrial needs
Structural steel constructions have the S355 pipes that are commonly applied due to their superior strength, weldability, and ability to carry loads. These pipes are suitable in construction, oil and gas, heavy engineering, and offshore projects where reliability is of great importance. Having demonstrated their effectiveness and applicability, pipes, and tubes continue to form a pillar in the current process of industrial progress.
Pipes and Tubes Dimensions Chart
| NPS | Outside Diameter | Nominal Wall Thickness | ||||||||
| Designator | in. | mm | Schedule 5S | Schedule 10S | Schedule 40S | Schedule 80S | ||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 1/8 | 0.41 | 10.29 | … | … | 0.049 | 1.24 | 0.068 | 1.73 | 0.095 | 2.41 |
| 1/4 | 0.54 | 13.72 | … | … | 0.065 | 1.65 | 0.088 | 2.24 | 0.119 | 3.02 |
| 3/8 | 0.68 | 17.15 | … | … | 0.065 | 1.65 | 0.091 | 2.31 | 0.126 | 3.2 |
| 1/2 | 0.84 | 21.34 | 0.065 | 1.65 | 0.083 | 2.11 | 0.109 | 2.77 | 0.147 | 3.73 |
| 3/4 | 4.05 | 26.67 | 0.065 | 1.65 | 0.083 | 2.11 | 0.113 | 2.87 | 0.154 | 3.91 |
| 1 | 1.32 | 33.4 | 0.065 | 1.65 | 0.109 | 2.77 | 0.133 | 3.38 | 0.179 | 4.55 |
| 1 1/4 | 1.66 | 42.16 | 0.065 | 1.65 | 0.109 | 2.77 | 0.14 | 3.56 | 0.191 | 4.85 |
| 1 1/2 | 1.90 | 48.26 | 0.065 | 1.65 | 0.109 | 2.77 | 0.145 | 3.68 | 0.2 | 5.08 |
| 2 | 2.38 | 60.33 | 0.065 | 1.65 | 0.109 | 2.77 | 0.154 | 3.91 | 0.218 | 5.54 |
| 2 1/2 | 2.88 | 73.03 | 0.083 | 2.11 | 0.12 | 3.05 | 0.203 | 5.16 | 0.276 | 7.01 |
| 3 | 3.50 | 88.9 | 0.083 | 2.11 | 0.12 | 3.05 | 0.1216 | 5.49 | 0.3 | 7.62 |
| 3 1/2 | 4.00 | 101.6 | 0.083 | 2.11 | 0.12 | 3.05 | 0.226 | 5.74 | 0.318 | 8.08 |
| 4 | 4.50 | 114.3 | 0.083 | 2.11 | 0.12 | 3.05 | 0.237 | 6.02 | 0.337 | 8.56 |
| 5 | 5.56 | 141.3 | 0.10*9 | 2.77 | 0.134 | 3.4 | 0.258 | 6.55 | 0.375 | 9.52 |
| 6 | 6.63 | 168.28 | 0.10*9 | 2.77 | 0.134 | 3.4 | 0.28 | 7.11 | 0.432 | 10.97 |
| 8 | 8.63 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.5 | 12.7 |
| 10 | 10.75 | 273.05 | 0.134 | 3.4 | 0.165 | 4.19 | 0.365 | 9.27 | 0.5 | 12.7 |
| 12 | 12.75 | 323.85 | 0.156 | 3.96 | 0.18 | 4.57 | 0.375 | 9.52 | 0.5 | 12.7 |
| 14 | 14.00 | 355.6 | 0.156 | 3.96 | 0.188 | 4.78 | … | … | … | … |
| 16 | 16.00 | 406.4 | 0.165 | 4.19 | 0.188 | 4.78 | … | … | … | … |
| 18 | 18.00 | 457.2 | 0.165 | 4.19 | 0.188 | 4.78 | … | … | … | … |
| 20 | 20.00 | 508 | 0.188 | 4.78 | 0.188 | 4.78 | … | … | … | … |
| 22 | 22.00 | 558.8 | 0.188 | 4.78 | 0.218 | 5.54 | … | … | … | … |
| 24 | 24.00 | 609.6 | 0.218 | 5.54 | 0.25 | 6.35 | … | … | … | … |
| 30 | 30.00 | 762 | 0.25 | 6.35 | 0.312 | 7.92 | … | … | … | … |
Clients Project of Pipes & Tubes
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| Pipes & Tubes for the Oil and gas industry | 104 Pieces | Bareilly, Uttar Pradesh |
| Pipes & Tubes supplied to the Pharmaceutical processing industry | 140 Pieces | Mumbai, Maharashtra |
| Pipes & Tubes supply for Piping | 160 Pieces | Srinagar, Jammu, and Kashmir |
| Pipes & Tubes supplied to industry | 200 Pieces | Raipur, Chhattisgarh |
Type of Sub-products

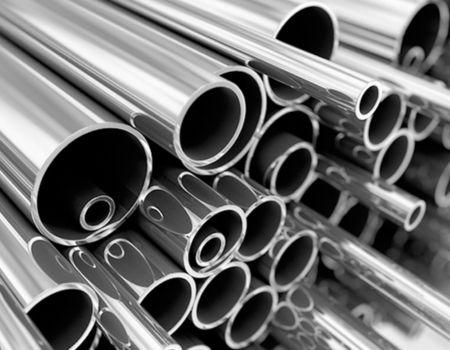

Seamless Pipes And Tubes Seamless Pipes And Tubes
Manufactured without any welds, seamless pipes and tubes offer superior strength and pressure resistance. Ideal for high pressure, high temperature, and critical applications in industries like oil & gas, power plants, and refineries.
Welded Pipes And Tubes Welded Pipes And Tubes
Formed by welding steel strips or coils, these are more cost effective and available in larger diameters. Commonly used in structural applications, water pipelines, and construction projects.
