Stainless Steel 409l Angle Manufacturer | Astm A240, Uns S40903, Low Carbon Grade

Name: Stainless Steel 409l Angle Manufacturer | Astm A240, Uns S40903, Low Carbon Grade
Brand: R H Alloys
Availability: InStock
Rating: 5 (16 reviews)

Specification Details
Grades	201, 202, 301, 304, 304l, 304n, 304ln
Standard	Aisi, Astm, Din, En, Sus
Diameter (Round bar)	4mm – 350mm, 4mm, 350mm
Size (Square bar)	6 X 6mm, 50 X 50mm
Size (Flat Bar)	2x10mm, 100x1000mm

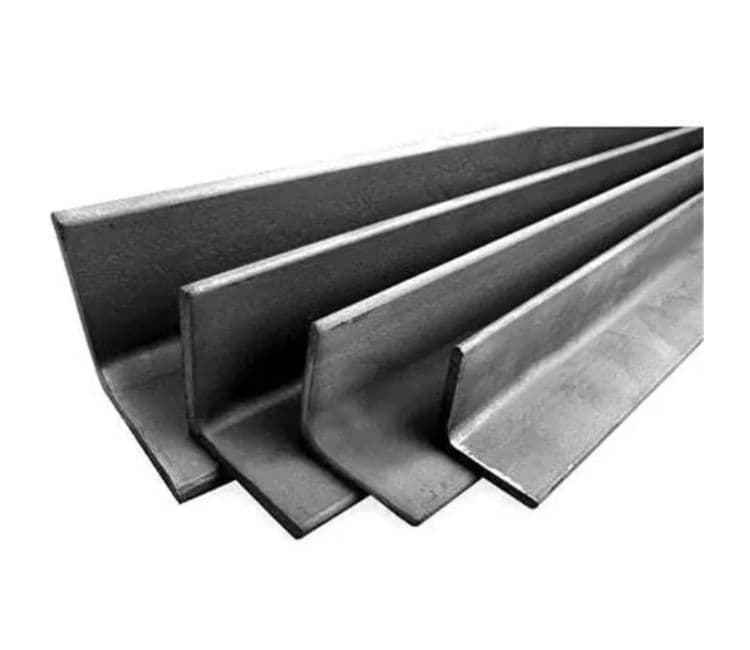

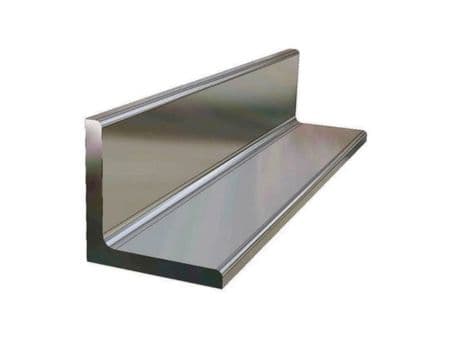

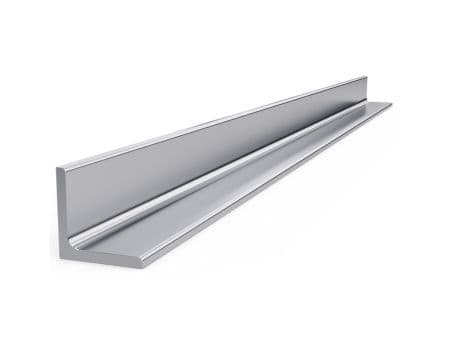

Stainless Steel 409L Angle Manufacturer | EN & ASTM Certified Ferritic Grade

R H Alloys is recognized as a trustworthy Stainless Steel 409L Angles Manufacturer. Stainless Steel 409L Angle is a low-carbon ferritic stainless steel that has moderate corrosion resistance, outstanding weldability, and is a cost-effective solution for applications. It is apt for use in environments that are slightly corrosive and/or have elevated temperatures, while it is also suitable for making parts and automotive and industrial support structures. This product is essentially just one of the many types of Stainless Steel Angles, which are typically used for reinforcement and load-bearing purposes.

Stainless Steel 409L Angle, made to comply with global standards, provides the stable mechanical properties it needs to resist oxidation and scaling. Because of its well-balanced makeup, fabricating, cutting, and welding it is quite easy, and the structural integrity will not be compromised. As a reliable option for the industrial B2B supply chain buyers, it is frequently purchased for projects that are going to last for a long time and where performance and economy have to be combined. For those applications that require higher hardness and strength, Stainless Steel 410 Angle is typically picked as a substitute.

Stainless Steel 409L Angle Chemical Properties

Grades	C	Ni	Si	S	Mn	P	Cr	Ti
SS 409L	0.03	0.5	1.00	0.02	1.00	0.04	11.75-10.5	0.75-6(C+N)

Stainless Steel 409L Angle Mechanical Properties

Tensile Strength(MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HRB) max	Brinell (HB) max
450	240	25	75	131

The flexibility of Stainless Steel 409L Angle makes it ideal for various industrial applications where a moderate level of corrosion resistance and strength is required. It is often selected for applications where structural integrity is required without the need for the higher cost of the austenitic grades. For applications that demand a high level of machinability with comparable strength properties, Stainless Steel 410DB Angle is also considered.

Uses of Stainless Steel 409L Angle

Structural frameworks and support systems
Automotive exhaust and chassis components
Fabrication of industrial equipment
Power plant and thermal applications
Material handling and conveyor structures
Construction and infrastructure projects
