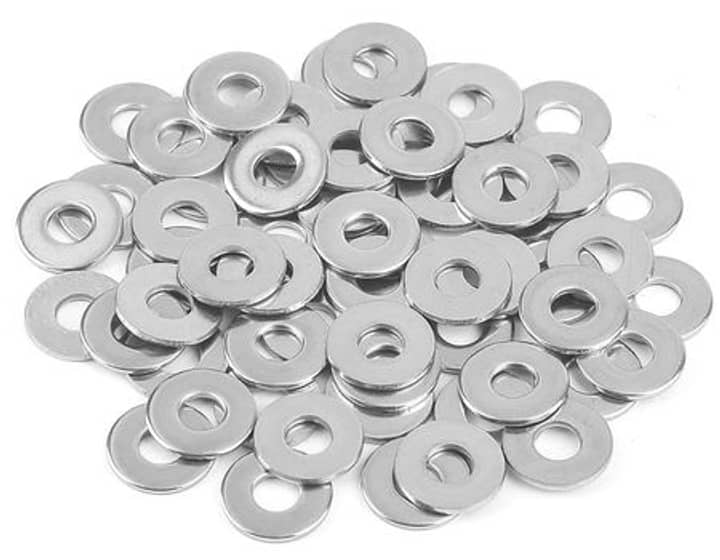

Washers Available in Multiple Inner Outer Diameters and Thicknesses for Bolted and Screwed Assemblies
Timex Metals is a superior Washer Manufacturer that provides an assortment of industrial washers that guarantee precise distribution of the load and fixation of different mechanical work. Such washers are made of high-quality stainless steel, carbon steel, brass, and other alloys to provide durability, resistance to corrosion, and continuous performance. The products offered by the company are of international quality and can be applied in such industries as construction, automotive, and manufacturing to ensure that clients can obtain reliable outcomes with each assembly.
Washers serve to divide the load uniformly, shield mating surfaces, as well as enhance the stability of joints in the assemblies of bolts in mechanical, structural and piping applications. The choice of material, hardness and thickness affect bearing stress and vibration resistance, as well as long-term joint reliability and these items are often considered in conjunction with Threaded Rod to make sure that there is the presence of proper preload and that the positioning of all the components of the fastening system is correct. In a B2B Network, the specification is standardized in well-defined specification tables, which are based on dimensions, grades, and weight per quantity so that the buyer can make correct calculations of material requirements and streamline sourcing operations in maintenance and project-driven installations.
Washer – Material & Specification Table
| Material | Grade / Standard | Washer Type | Inner Diameter (mm) | Outer Diameter (mm) | Thickness (mm) | Surface Finish | Approx. Weight (kg/1000 pcs) |
|---|
| Carbon Steel | IS 2016 | Plain Washer | 8 | 16 | 1.6 | Zinc Plated | 2.1 |
| Carbon Steel | ASTM F436 | Hardened Washer | 12 | 24 | 3.0 | Black Oxide | 6.8 |
| Stainless Steel | A2 (304) | Plain Washer | 10 | 20 | 2.0 | Plain | 3.5 |
| Stainless Steel | A4 (316) | Plain Washer | 16 | 30 | 3.0 | Plain | 8.9 |
| Alloy Steel | EN 42J | Spring Washer | 12 | 21 | 2.5 | Phosphate | 5.2 |
Functional & Material Explanation
- Role in Load Distribution and Joint Stability: Washers have been employed to evenly spread the load applied by the bolts and screws on a broader surface so that the stress on the base materials is not concentrated in a smaller region. This is used to avoid surface damages, material deformation and loosening of fasteners particularly to assemblies where the softer metals, coated surfaces or slotted holes are involved.
- Dimensional Control & Characteristics of manufacturing: Washers are produced by stamping, punching or machining with controlled inner diameter, outer diameter and thickness so that they can fit with bolts and nuts properly. Proper flatness and edge finishing enhance stability of contacts and lessen the variation in the transfer of loads during tightening.
- Application Matching Grade a Material: Depending on the strength needs, washers are offered in Carbon Steel, Stainless Steel (SS 304, SS 316), Alloy Steel and hardened ones. In case of corrosive or out-of-door conditions, stainless steel and coated washers are to be taken and hardened washers are to be taken in case of high-tensile connection of bolts.
- Vibration and Service Condition Performance: Washers are used in the dynamic or vibration prone installations to ensure that the integrity of the joints remains untouched by reducing the wear between fastener heads and their contact surfaces. Disagre washers that are particularly special like spring washers or hardened flat washers are commonly used in mechanical equipment, piping support and structural frame to promote long-term utilization.
Client Project Report of Washer
| Product Supplied | Quantity | Cities (India) |
|---|
| Flat Washers for Structural Fastening Systems | 167 Pieces | Bhilai |
| Heavy Duty Washers for Industrial Machinery | 204 Pieces | Kolhapur |
| Plain Washers for Fabrication Assemblies | 181 Pieces | Faridabad |
| Load Distribution Washers for Piping Supports | 193 Pieces | Kakinada |
Washers are applied to spread the load, minimize the damage on the surface, and enhance stability in the joint of the bolted connection. The choice of material and hardness has a direct influence on deformation tightening torque resistance. Dimensional accuracy This is significant to retain clamping force during repeated load cycles. In full systems of fastening, washers are generally chosen together with Screws to enhance the reliability of the joint and increase the service life of the mechanical and structural assemblies
