GRP Valves Weight Chart in KG, MM, PDF

GRP Valves Weight Chart in KG, MM, PDF

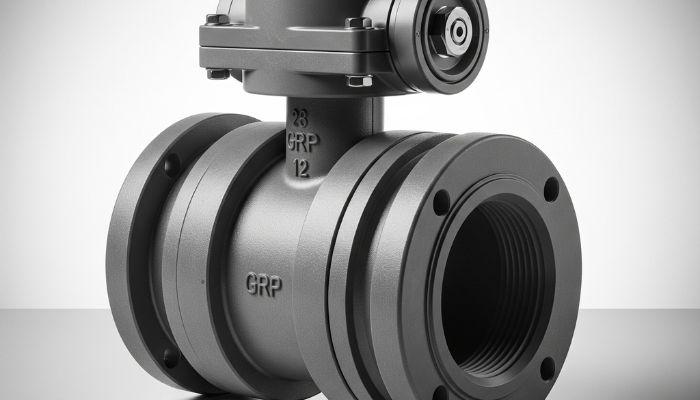

If you're sourcing corrosion-resistant flow control systems, the GRP Valve Weight Chart in KG MM PDF is an essential tool for engineering and procurement planning. This chart lists the approximate weights of various GRP valves including ball, butterfly, and check valves across standard NB (nominal bore) sizes. GRP (Glass Reinforced Plastic) valves are widely used in chemical, water treatment, and marine industries for their lightweight and anti-corrosive properties. For accurate load calculations, transport planning, and cost estimation, download the GRP Valve Weight Chart in KG MM PDF now and streamline your workflow.


Comprehensive GRP Valves Weight Chart


Ball Valves Weight Specifications

Size (mm)

Body Weight (kg)

Ball Weight (kg)

Stem Weight (kg)

Actuator Weight (kg)

Total Weight (kg)

Flange Rating

Wall Thickness

15

0.8

0.1

0.2

1.1

2.2

PN16

3.5mm

20

1.0

0.15

0.25

1.3

2.7

PN16

3.8mm

25

1.2

0.2

0.3

1.5

3.2

PN16

4.0mm

32

1.6

0.25

0.35

2.1

4.3

PN16

4.2mm

40

2.1

0.3

0.4

2.8

5.6

PN16

4.5mm

50

2.8

0.4

0.5

3.7

7.4

PN16

5.0mm

65

4.2

0.6

0.7

5.8

11.3

PN16

5.5mm

80

5.8

0.8

0.9

7.9

15.4

PN16

6.0mm

100

8.4

1.2

1.3

11.5

22.4

PN16

6.5mm

125

12.7

1.8

1.9

17.8

34.2

PN16

7.0mm

150

18.3

2.6

2.8

25.7

49.4

PN16

7.5mm

200

28.9

4.1

4.4

41.2

78.6

PN16

8.5mm

250

42.7

6.2

6.8

62.8

118.5

PN16

9.5mm

300

58.3

8.7

9.4

86.1

162.5

PN16

10.5mm


Butterfly Valves Detailed Weight Chart

Size (mm)

Body Weight (kg)

Disc Weight (kg)

Shaft Weight (kg)

Seal Weight (kg)

Actuator Weight (kg)

Total Weight (kg)

Pressure Rating

40

1.8

0.3

0.15

0.08

2.1

4.43

PN10/16

50

2.1

0.4

0.18

0.12

2.6

5.30

PN10/16

65

2.8

0.6

0.22

0.15

3.4

7.17

PN10/16

80

3.6

0.8

0.28

0.19

4.3

9.17

PN10/16

100

5.4

1.2

0.35

0.24

6.2

13.39

PN10/16

125

8.1

1.8

0.45

0.32

9.1

19.77

PN10/16

150

11.2

2.4

0.58

0.41

12.8

27.39

PN10/16

200

18.7

3.8

0.78

0.62

21.4

45.30

PN10/16

250

28.4

5.9

1.12

0.87

32.8

69.09

PN10/16

300

39.2

8.4

1.54

1.18

46.3

96.62

PN10/16

350

52.1

11.7

2.08

1.56

62.4

129.84

PN10/16

400

67.8

15.8

2.74

2.08

81.2

169.62

PN10/16


Advanced GRP Valve Construction and Digital Integration


Modern grp valves utilize advanced resin systems with continuous glass fiber reinforcement, optimizing strength-to-weight ratios while maintaining structural integrity. Leading manufacturers ensure their valve specifications meet international standards, with platforms like pipex.ai providing comprehensive databases of certified weight charts for project planning.


The reduced weight of grp valves significantly simplifies installation procedures and reduces equipment requirements, enabling single-person handling for smaller sizes and improving operational efficiency in elevated or confined spaces. Continuous advancement in composite materials technology promises even lighter valves without compromising performance, with digital platforms like pipex.ai ensuring latest weight specifications remain accessible to engineering professionals worldwide. As industry trends drive growing adoption across diverse applications, updated grp valves weight chart in kg, mm, pdf documentation continues to be essential for successful project execution and cost-effective system design.
