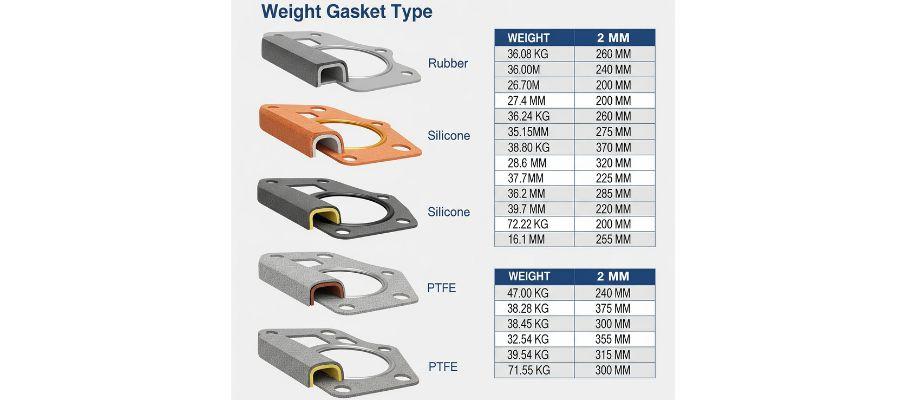

Gasket Weight Chart in KG, MM, and PDF

Gasket Weight Chart in KG, MM, and PDF


If you're searching for a reliable Gasket Weight Chart in KG, MM, and PDF, this guide offers accurate weight estimates for standard industrial gaskets. Ideal for engineers, procurement teams, and fabricators, these charts help in load calculations, shipping estimations, and material handling. Download the free  Gasket Weight Chart PDF to keep it handy during project planning and execution.


Standard Spiral Wound Gasket Weight Chart (KG)

Size (NB)

Class 150

Class 300

Class 600

15 mm

0.10

0.12

0.14

20 mm

0.12

0.14

0.17

25 mm

0.16

0.20

0.24

40 mm

0.30

0.36

0.42

50 mm

0.45

0.55

0.66

80 mm

0.78

0.95

1.12

100 mm

1.02

1.26

1.48

150 mm

1.88

2.24

2.60

200 mm

2.50

2.96

3.60

250 mm

3.40

4.00

4.70

300 mm

4.25

5.10

6.05

350 mm

5.50

6.45

7.60

400 mm

6.80

8.00

9.40

450 mm

8.00

9.50

11.00

Ring Type Joint (RTJ) Gasket Weight Chart (KG)

Size (NB)

R Type

RX Type

BX Type

25 mm

0.22

0.26

50 mm

0.48

0.55

80 mm

0.82

0.98

100 mm

1.20

1.38

150 mm

1.96

2.22

200 mm

2.68

3.05

300 mm

4.60

5.20

400 mm

6.80

7.60

600 mm

11.50

13.00

15.80

900 mm

21.50

24.50

30.60

Metal Jacketed Gasket Weight Chart (KG/m²)

Thickness (mm)

Approx Weight (KG/m²)

2.0

5.8

3.0

8.5

4.0

11.2

5.0

14.0

6.0

16.7

CAF / Non-Asbestos Sheet Gasket Weight Chart (KG/m²)

Thickness (mm)

Approx Weight (KG/m²)

0.5

0.85

1.0

1.70

1.5

2.55

2.0

3.40

3.0

5.10

5.0

8.50
