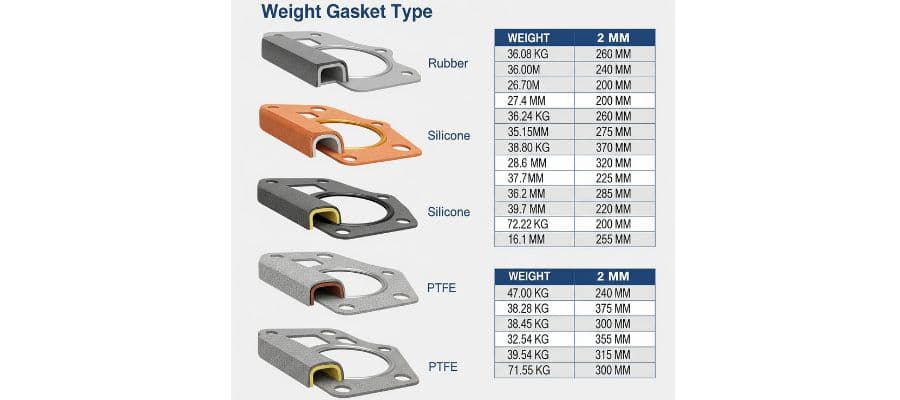

If you need a dependable Gasket Weight Chart in KG, MM, and PDF, this guide provides precise weight estimates for standard industrial gaskets. Perfect for engineers, procurement teams, and fabricators, these charts assist with load calculations, shipping estimates, and material handling. Download the free PDF to have accurate gasket weights on hand for seamless project planning and execution.
Standard Spiral Wound Gasket Weight Chart (KG)
Size (NB) | Class 150 | Class 300 | Class 600 |
15 mm | 0.10 | 0.12 | 0.14 |
20 mm | 0.12 | 0.14 | 0.17 |
25 mm | 0.16 | 0.20 | 0.24 |
40 mm | 0.30 | 0.36 | 0.42 |
50 mm | 0.45 | 0.55 | 0.66 |
80 mm | 0.78 | 0.95 | 1.12 |
100 mm | 1.02 | 1.26 | 1.48 |
150 mm | 1.88 | 2.24 | 2.60 |
200 mm | 2.50 | 2.96 | 3.60 |
250 mm | 3.40 | 4.00 | 4.70 |
300 mm | 4.25 | 5.10 | 6.05 |
350 mm | 5.50 | 6.45 | 7.60 |
400 mm | 6.80 | 8.00 | 9.40 |
450 mm | 8.00 | 9.50 | 11.00 |
Ring Type Joint (RTJ) Gasket Weight Chart (KG)
Size (NB) | R Type | RX Type | BX Type |
25 mm | 0.22 | 0.26 | – |
50 mm | 0.48 | 0.55 | – |
80 mm | 0.82 | 0.98 | – |
100 mm | 1.20 | 1.38 | – |
150 mm | 1.96 | 2.22 | – |
200 mm | 2.68 | 3.05 | – |
300 mm | 4.60 | 5.20 | – |
400 mm | 6.80 | 7.60 | – |
600 mm | 11.50 | 13.00 | 15.80 |
900 mm | 21.50 | 24.50 | 30.60 |
Metal Jacketed Gasket Weight Chart (KG/m²)
Thickness (mm) | Approx Weight (KG/m²) |
2.0 | 5.8 |
3.0 | 8.5 |
4.0 | 11.2 |
5.0 | 14.0 |
6.0 | 16.7 |
CAF / Non-Asbestos Sheet Gasket Weight Chart (KG/m²)
Thickness (mm) | Approx Weight (KG/m²) |
0.5 | 0.85 |
1.0 | 1.70 |
1.5 | 2.55 |
2.0 | 3.40 |
3.0 | 5.10 |
5.0 | 8.50 |
