FRP Grating weight chart in kg.mm.pdf

FRP Grating weight chart in kg.mm.pdf

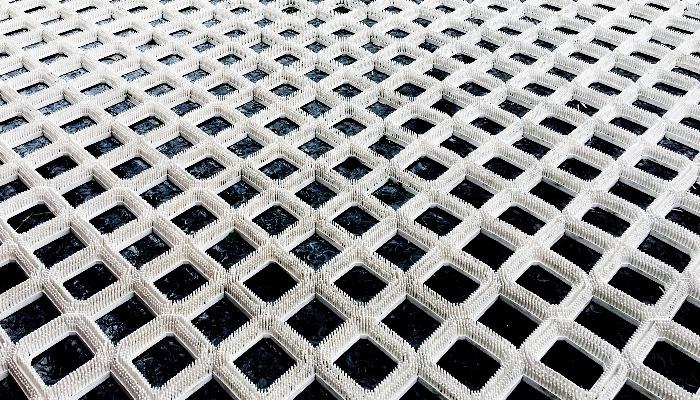

FRP Grating Weight Chart in Kg, Mm, PDF simple and helpful tool for anyone working with industrial flooring, FRP grating is utilized in a variety of settings, including platforms, walkways, and factories. The weight of each type of grating varies due to its size and mesh pattern. For planning, installation, and transportation, it is crucial to know the exact weight per piece or square meter. With the PDF version, you can conveniently carry this chart with you at your workplace or site, providing you with accurate and clear weight information.



Standard Mesh Size Weight Specifications


25mm x 25mm Mesh Configuration

The 25mm x 25mm mesh represents one of the most commonly used configurations in industrial applications:


Bar Thickness

Panel Thickness

Weight (kg/m²)

Load Capacity

25mm

25mm

17.5

Light duty

25mm

30mm

21.2

Medium duty

25mm

38mm

26.8

Heavy duty

25mm

50mm

35.4

Extra heavy


30mm x 30mm Mesh Configuration

For applications requiring enhanced structural integrity:


Bar Thickness

Panel Thickness

Weight (kg/m²)

Load Capacity

30mm

25mm

19.8

Standard

30mm

32mm

25.6

Enhanced

30mm

40mm

32.1

Heavy duty

30mm

50mm

40.3

Industrial


Heavy-Duty Applications Weight Chart

38mm x 38mm Industrial Grade


Specification

Dimensions (mm)

Weight (kg/m²)

Applications

Standard

38 x 38 x 25

22.4

Walkways

Reinforced

38 x 38 x 32

28.9

Platforms

Heavy duty

38 x 38 x 40

36.2

Industrial floors

Extra heavy

38 x 38

45.7

Heavy machinery


Custom Configuration Weight Calculations


Non-Standard Mesh Sizes

For specialized applications requiring custom mesh configurations:

Custom Size (mm)

Estimated Weight (kg/m²)

Typical Usage

20 x 20 x 25

19.2

Fine filtration

40 x 40 x 30

24.6

Open drainage

50 x 50 x 35

28.1

Ventilation systems

60 x 60 x 40

31.8

Large span applications
