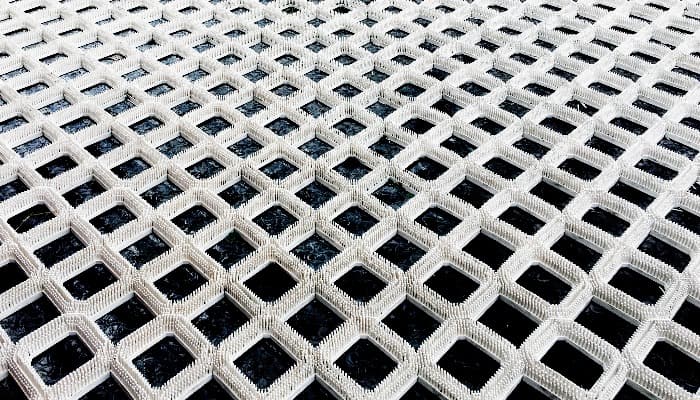

FRP Grating weight chart in kg.mm.pdf

FRP Grating weight chart in kg.mm.pdf


FRP Grating Weight in Kg, Mm, and PDF FRP grating is used in many different places, such as factories, paths, and platforms, and is an easy-to-use and practical tool for anyone working with industrial flooring. Each grating type's weight varies according to its mesh pattern and size. Understanding the precise weight per piece or square meter is essential for planning, installation, and transportation. With the help of the PDF version, you can easily carry this chart with you to your place of employment or site, giving you accurate and understandable weight data.



Standard Mesh Size Weight Specifications


25mm x 25mm Mesh Configuration

The 25mm x 25mm mesh represents one of the most commonly used configurations in industrial applications:


Bar Thickness

Panel Thickness

Weight (kg/m²)

Load Capacity

25mm

25mm

17.5

Light duty

25mm

30mm

21.2

Medium duty

25mm

38mm

26.8

Heavy duty

25mm

50mm

35.4

Extra heavy


30mm x 30mm Mesh Configuration

For applications requiring enhanced structural integrity:


Bar Thickness

Panel Thickness

Weight (kg/m²)

Load Capacity

30mm

25mm

19.8

Standard

30mm

32mm

25.6

Enhanced

30mm

40mm

32.1

Heavy duty

30mm

50mm

40.3

Industrial


Heavy-Duty Applications Weight Chart

38mm x 38mm Industrial Grade


Specification

Dimensions (mm)

Weight (kg/m²)

Applications

Standard

38 x 38 x 25

22.4

Walkways

Reinforced

38 x 38 x 32

28.9

Platforms

Heavy duty

38 x 38 x 40

36.2

Industrial floors

Extra heavy

38 x 38

45.7

Heavy machinery


Custom Configuration Weight Calculations


Non-Standard Mesh Sizes

For specialized applications requiring custom mesh configurations:

Custom Size (mm)

Estimated Weight (kg/m²)

Typical Usage

20 x 20 x 25

19.2

Fine filtration

40 x 40 x 30

24.6

Open drainage

50 x 50 x 35

28.1

Ventilation systems

60 x 60 x 40

31.8

Large span applications
