Specialized Stainless Steel Wire Mesh Manufacturers , Suppliers & Exporters | Ss 304 & Ss 316 Grade | H M B Engineering
| Standard | Astm A580, Sa493, Ams 5514, A313, A555, A493 / Asme Sa580, Sa313, Sa555 |
|---|---|
| Length | 72, 0.125" |
| Diameter | 10 Microns 1.0 Mm, 0.0004" To 0.040" |
| Technique | Cold Rolled, Hot Rolled |

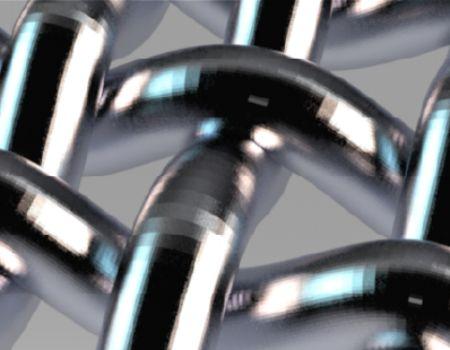

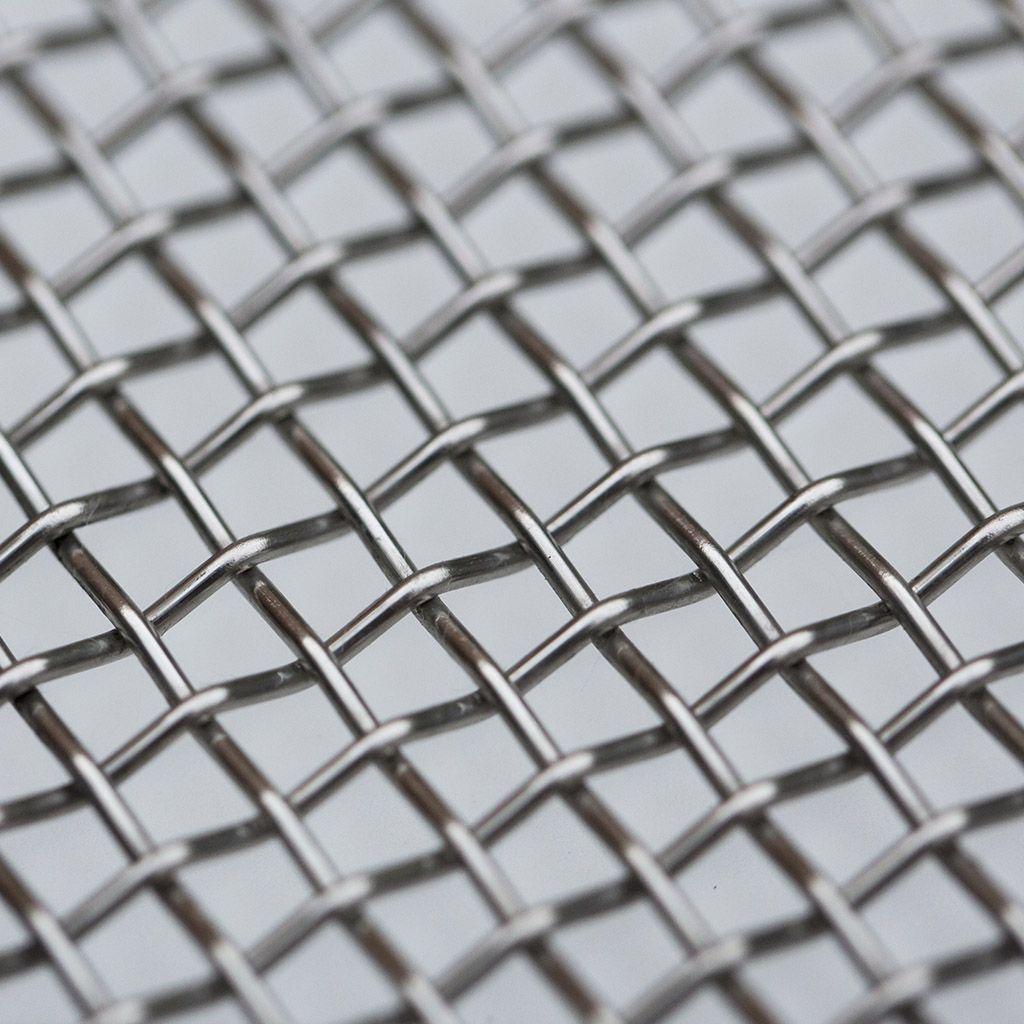

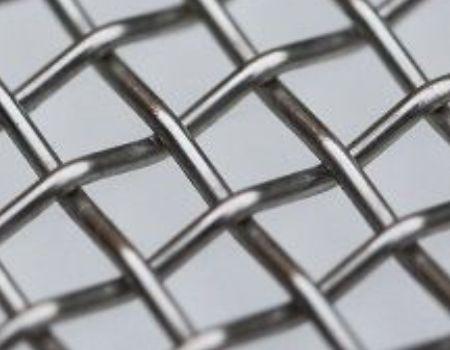

HMB Stainless Steel (SS) Wire Mesh – Durable, Corrosion-Resistant & Custom Sizes
HMB Engineering proudly presents its range of Stainless Steel (SS) Wire Mesh, designed for industries that demand durability, precision, and long-lasting performance. Manufactured with high-grade SS 304, SS 316, and SS 310, our wire mesh delivers exceptional resistance against corrosion, heat, and wear – making it ideal for power plants, cement factories, steel industries, mining, aggregates, and construction projects. Unlike generic suppliers, HMB Stainless Steel Wire Mesh stands out due to its accurate weaving, consistent strength, and tailored specifications. Every mesh is produced under strict quality control as per IS standards, ensuring reliable performance in even the most challenging conditions. ⚙️ Key Highlights: Superior resistance to rust, heat, and chemicals Available in multiple mesh sizes and wire diameters Precision plain weave and customized designs on request Long service life with reduced downtime Trusted by leading industries, HMB Engineering Stainless Steel Wire Mesh is not just a product – it is a guarantee of quality, reliability, and engineering excellence. Choose HMB SS Wire Mesh when performance cannot be compromised. 📞 Contact HMB Engineering: +91 9311299006 | hmbmesh@gmail.com
Material & Grades Table – HMB Stainless Steel (SS) Wire Mesh
| Material | Grade / Standard | Wire Diameter / Opening (mm) | Extra Specification | Weight (kg/m²) |
|---|---|---|---|---|
| Stainless Steel | SS 304 / ASTM A580 | 0.20 – 5.00 / 0.50 – 50 | Plain / Twill Weave | 0.50 – 25.00 |
| Stainless Steel | SS 304L / ASTM A580 | 0.20 – 5.00 / 0.50 – 50 | Low Carbon / Corrosion Resistant | 0.50 – 25.00 |
| Stainless Steel | SS 316 / ASTM A580 | 0.20 – 5.00 / 0.50 – 50 | Marine / Chemical Service | 0.50 – 25.00 |
| Stainless Steel | SS 316L / ASTM A580 | 0.20 – 5.00 / 0.50 – 50 | Low Carbon / Corrosion Resistant | 0.50 – 25.00 |
| Stainless Steel | SS 321 / ASTM A580 | 0.20 – 4.00 / 0.50 – 40 | High Temperature Service | 0.50 – 22.00 |
| Stainless Steel | SS 310 / ASTM A580 | 0.20 – 4.00 / 0.50 – 40 | Heat Resistant | 0.50 – 22.00 |
| Stainless Steel | SS 904L / ASTM A580 | 0.20 – 3.00 / 0.50 – 25 | High Corrosion Resistance | 0.60 – 18.00 |
| Stainless Steel | SS 410 / ASTM A580 | 0.20 – 4.00 / 0.50 – 40 | Wear Resistant / Industrial | 0.50 – 22.00 |
Key Features & Advantages
- Excellent corrosion and oxidation resistance
- Uniform mesh openings for consistent screening
- High tensile strength and dimensional stability
- Suitable for filtration, sieving, and separation
- Good cleanability for hygienic applications
- Suitable for continuous industrial processing
- Available in customized mesh counts, wire diameters, and dimensions
Chemical Composition
Representative Grade: Stainless Steel 316L
| Element | Percentage (%) |
|---|---|
| Chromium (Cr) | 16.0–18.0 |
| Nickel (Ni) | 10.0–14.0 |
| Molybdenum (Mo) | 2.0–3.0 |
| Manganese (Mn) | 2.00 max. |
| Carbon (C) | 0.030 max. |
| Iron (Fe) | Balance |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 485 MPa min. |
| Yield Strength | 170 MPa min. |
| Elongation | 40% min. |
| Hardness | 95 HRB max. |
Equivalent Grade
| Standard | Grade |
|---|---|
| ASTM | 316L |
| UNS | S31603 |
| EN | 1.4404 |
| DIN | X2CrNiMo17-12-2 |
Type of Sub-products
Frequently Asked Questions
Which industries commonly use HMB SS Wire Mesh?
Why choose HMB Stainless Steel Wire Mesh over other suppliers?
How do I request a quote for Stainless Steel Wire Mesh?
