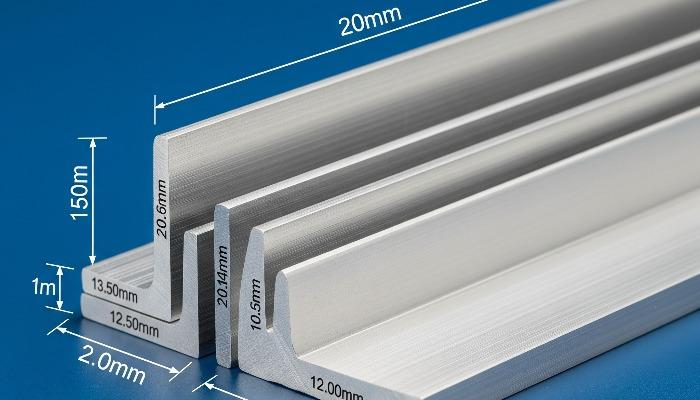

Aluminium Angles weight chart in kg, mm, pdf specifications are crucial for construction and engineering professionals who require precise calculations for structural projects. These L-shaped profiles, manufactured from high-grade aluminium alloys, deliver exceptional strength-to-weight ratios and feature two perpendicular legs forming 90-degree angles, making them ideal for building framework reinforcement, window assembly, facade support, machine construction, equipment mounting, and protective enclosures across diverse industrial applications.
Understanding Aluminium Angles Weight Chart Specifications in kg and mm
Detailed Aluminium Angles Weight Chart
Standard Equal Leg Aluminium Angles
Size (mm) | Thickness (mm) | Weight per Meter (kg) | Cross-sectional Area (cm²) | Weight per 6m (kg) | Moment of Inertia (cm⁴) |
15 x 15 | 1.5 | 0.12 | 0.15 | 0.72 | 0.08 |
15 x 15 | 2.0 | 0.16 | 0.20 | 0.96 | 0.10 |
20 x 20 | 1.5 | 0.16 | 0.20 | 0.96 | 0.19 |
20 x 20 | 2.0 | 0.21 | 0.26 | 1.26 | 0.25 |
20 x 20 | 3.0 | 0.30 | 0.37 | 1.80 | 0.34 |
25 x 25 | 2.0 | 0.27 | 0.34 | 1.62 | 0.48 |
25 x 25 | 3.0 | 0.39 | 0.49 | 2.34 | 0.68 |
25 x 25 | 4.0 | 0.51 | 0.64 | 3.06 | 0.86 |
30 x 30 | 2.0 | 0.33 | 0.42 | 1.98 | 0.85 |
30 x 30 | 3.0 | 0.48 | 0.61 | 2.88 | 1.21 |
30 x 30 | 4.0 | 0.63 | 0.79 | 3.78 | 1.56 |
35 x 35 | 3.0 | 0.57 | 0.72 | 3.42 | 1.85 |
35 x 35 | 4.0 | 0.75 | 0.94 | 4.50 | 2.41 |
40 x 40 | 3.0 | 0.66 | 0.83 | 3.96 | 2.65 |
40 x 40 | 4.0 | 0.87 | 1.09 | 5.22 | 3.45 |
40 x 40 | 5.0 | 1.07 | 1.35 | 6.42 | 4.22 |
45 x 45 | 4.0 | 0.99 | 1.25 | 5.94 | 4.69 |
45 x 45 | 5.0 | 1.23 | 1.55 | 7.38 | 5.78 |
50 x 50 | 3.0 | 0.84 | 1.06 | 5.04 | 4.84 |
50 x 50 | 4.0 | 1.11 | 1.40 | 6.66 | 6.32 |
50 x 50 | 5.0 | 1.36 | 1.71 | 8.16 | 7.76 |
50 x 50 | 6.0 | 1.62 | 2.04 | 9.72 | 9.16 |
60 x 60 | 4.0 | 1.35 | 1.70 | 8.10 | 10.35 |
60 x 60 | 5.0 | 1.68 | 2.12 | 10.08 | 12.78 |
60 x 60 | 6.0 | 1.98 | 2.49 | 11.88 | 15.12 |
60 x 60 | 8.0 | 2.61 | 3.29 | 15.66 | 19.58 |
70 x 70 | 5.0 | 1.99 | 2.51 | 11.94 | 19.83 |
70 x 70 | 6.0 | 2.37 | 2.99 | 14.22 | 23.52 |
70 x 70 | 7.0 | 2.75 | 3.47 | 16.50 | 27.15 |
75 x 75 | 5.0 | 2.11 | 2.66 | 12.66 | 24.18 |
75 x 75 | 6.0 | 2.52 | 3.18 | 15.12 | 28.72 |
75 x 75 | 8.0 | 3.28 | 4.13 | 19.68 | 37.35 |
75 x 75 | 10.0 | 4.01 | 5.06 | 24.06 | 45.42 |
80 x 80 | 6.0 | 2.70 | 3.41 | 16.20 | 34.52 |
80 x 80 | 8.0 | 3.54 | 4.47 | 21.24 | 45.12 |
80 x 80 | 10.0 | 4.35 | 5.49 | 26.10 | 55.23 |
90 x 90 | 6.0 | 3.06 | 3.86 | 18.36 | 49.84 |
90 x 90 | 8.0 | 4.02 | 5.08 | 24.12 | 65.24 |
90 x 90 | 10.0 | 4.95 | 6.25 | 29.70 | 79.86 |
100 x 100 | 6.0 | 3.42 | 4.31 | 20.52 | 68.42 |
100 x 100 | 8.0 | 4.50 | 5.68 | 27.00 | 89.75 |
100 x 100 | 10.0 | 5.52 | 6.96 | 33.12 | 109.84 |
100 x 100 | 12.0 | 6.51 | 8.21 | 39.06 | 128.56 |
120 x 120 | 8.0 | 5.46 | 6.89 | 32.76 | 154.32 |
120 x 120 | 10.0 | 6.72 | 8.48 | 40.32 | 189.45 |
120 x 120 | 12.0 | 7.95 | 10.03 | 47.70 | 223.68 |
150 x 150 | 10.0 | 8.52 | 10.75 | 51.12 | 362.84 |
150 x 150 | 12.0 | 10.11 | 12.76 | 60.66 | 430.25 |
150 x 150 | 15.0 | 12.42 | 15.68 | 74.52 | 527.93 |
Unequal Leg Aluminium Angles
Size (mm) | Thickness (mm) | Weight per Meter (kg) | Cross-sectional Area (cm²) | Weight per 6m (kg) | Moment of Inertia XX (cm⁴) | Moment of Inertia YY (cm⁴) |
25 x 15 | 2.0 | 0.22 | 0.28 | 1.32 | 0.31 | 0.12 |
25 x 15 | 3.0 | 0.32 | 0.40 | 1.92 | 0.43 | 0.16 |
30 x 20 | 2.0 | 0.28 | 0.35 | 1.68 | 0.52 | 0.24 |
30 x 20 | 3.0 | 0.42 | 0.53 | 2.52 | 0.74 | 0.34 |
40 x 20 | 3.0 | 0.48 | 0.61 | 2.88 | 1.23 | 0.35 |
40 x 20 | 4.0 | 0.63 | 0.79 | 3.78 | 1.58 | 0.44 |
40 x 25 | 3.0 | 0.54 | 0.68 | 3.24 | 1.35 | 0.56 |
40 x 25 | 4.0 | 0.71 | 0.89 | 4.26 | 1.74 | 0.72 |
45 x 30 | 4.0 | 0.83 | 1.05 | 4.98 | 2.42 | 1.15 |
45 x 30 | 5.0 | 1.02 | 1.29 | 6.12 | 2.98 | 1.41 |
50 x 25 | 4.0 | 0.83 | 1.05 | 4.98 | 2.84 | 0.75 |
50 x 25 | 5.0 | 1.02 | 1.29 | 6.12 | 3.51 | 0.92 |
50 x 30 | 4.0 | 0.89 | 1.12 | 5.34 | 2.95 | 1.24 |
50 x 30 | 5.0 | 1.10 | 1.39 | 6.60 | 3.65 | 1.53 |
60 x 30 | 5.0 | 1.26 | 1.59 | 7.56 | 5.42 | 1.56 |
60 x 30 | 6.0 | 1.50 | 1.89 | 9.00 | 6.43 | 1.85 |
60 x 40 | 5.0 | 1.39 | 1.75 | 8.34 | 5.68 | 2.84 |
60 x 40 | 6.0 | 1.65 | 2.08 | 9.90 | 6.75 | 3.38 |
65 x 50 | 6.0 | 1.89 | 2.38 | 11.34 | 8.95 | 5.24 |
65 x 50 | 8.0 | 2.48 | 3.13 | 14.88 | 11.65 | 6.78 |
70 x 50 | 6.0 | 1.98 | 2.50 | 11.88 | 10.52 | 5.38 |
70 x 50 | 8.0 | 2.61 | 3.29 | 15.66 | 13.75 | 6.98 |
75 x 50 | 6.0 | 2.07 | 2.61 | 12.42 | 12.35 | 5.52 |
75 x 50 | 8.0 | 2.73 | 3.44 | 16.38 | 16.18 | 7.18 |
80 x 40 | 6.0 | 2.01 | 2.53 | 12.06 | 14.82 | 3.45 |
80 x 40 | 8.0 | 2.64 | 3.33 | 15.84 | 19.45 | 4.48 |
80 x 60 | 8.0 | 3.09 | 3.90 | 18.54 | 20.85 | 12.65 |
80 x 60 | 10.0 | 3.81 | 4.81 | 22.86 | 25.68 | 15.52 |
90 x 60 | 8.0 | 3.33 | 4.20 | 19.98 | 27.84 | 13.25 |
90 x 60 | 10.0 | 4.11 | 5.19 | 24.66 | 34.32 | 16.28 |
100 x 50 | 8.0 | 3.37 | 4.25 | 20.22 | 35.96 | 7.84 |
100 x 50 | 10.0 | 4.17 | 5.26 | 25.02 | 44.52 | 9.68 |
100 x 65 | 8.0 | 3.69 | 4.66 | 22.14 | 37.85 | 15.24 |
100 x 65 | 10.0 | 4.56 | 5.76 | 27.36 | 46.89 | 18.78 |
100 x 75 | 10.0 | 4.86 | 6.13 | 29.16 | 48.95 | 25.84 |
100 x 75 | 12.0 | 5.76 | 7.27 | 34.56 | 57.86 | 30.52 |
120 x 80 | 10.0 | 5.67 | 7.16 | 34.02 | 81.45 | 31.68 |
120 x 80 | 12.0 | 6.75 | 8.52 | 40.50 | 96.78 | 37.52 |
150 x 75 | 12.0 | 7.65 | 9.66 | 45.90 | 162.84 | 32.45 |
150 x 75 | 15.0 | 9.45 | 11.93 | 56.70 | 200.68 | 39.85 |
150 x 100 | 12.0 | 8.55 | 10.80 | 51.30 | 165.95 | 67.84 |
150 x 100 | 15.0 | 10.65 | 13.44 | 63.90 | 205.68 | 83.95 |
Technical Specifications and B2B Services
Technical specifications for Aluminium Angles primarily utilize 6061-T6 or 6063-T5 alloy compositions, delivering optimal mechanical properties with excellent corrosion resistance, weldability, and machinability for construction applications. Surface treatments include mill finish, anodized coating, powder coating, and chemical etching to meet diverse project requirements. Leading b2b services providers offer comprehensive procurement support through reliable supplier partnerships, inventory management, just-in-time delivery, and technical consultation, while modern platforms like pipex.ai facilitate streamlined sourcing strategies through advanced analytics and supplier network integration.
Weight calculation methods for Aluminium Angles involve manual formulas using cross-sectional area multiplied by density factors, alongside advanced digital calculation software and mobile applications that reduce errors and improve project planning accuracy. Professional quality assurance includes mill test certificates documenting chemical composition and mechanical properties, third-party inspection services, and specialized packaging systems for secure transportation. Integration with procurement platforms like pipex.ai enables seamless transition from specification to ordering, while structural engineers must consider dynamic loads, safety margins, and environmental conditions when utilizing this comprehensive Aluminium Angles weight chart in kg, mm, pdf format for effective project planning and cost estimation across diverse industrial sectors.
