MS angle weight chart in kg & mm is a critical reference for engineers, structural fabricators, and project planners involved in construction, infrastructure, and fabrication works. Mild Steel (MS) angles are commonly used in frames, support structures, towers, and brackets. These angles are available in equal or unequal leg sizes and their weight depends on dimensions in millimeters and the thickness of the angle. Accurate weight data is essential for structural load calculations, inventory planning, and transportation. Having a reliable MS angle weight chart ensures precision in project estimation and execution.

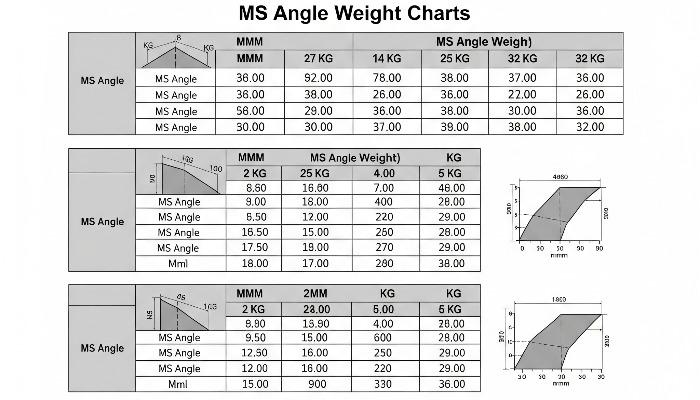

MS Angle Weight Chart (in KG per Meter)
Size (mm) | Thickness (mm) | Weight (kg/m) |
25 x 25 | 3 | 1.10 |
25 x 25 | 5 | 1.78 |
30 x 30 | 3 | 1.34 |
30 x 30 | 5 | 2.19 |
35 x 35 | 5 | 2.60 |
40 x 40 | 5 | 3.01 |
45 x 45 | 5 | 3.43 |
50 x 50 | 5 | 3.84 |
50 x 50 | 6 | 4.56 |
60 x 60 | 6 | 5.56 |
65 x 65 | 6 | 6.08 |
70 x 70 | 6 | 6.60 |
75 x 75 | 6 | 7.12 |
80 x 80 | 6 | 7.63 |
90 x 90 | 6 | 8.65 |
100 x 100 | 6 | 9.67 |
100 x 100 | 8 | 12.70 |
110 x 110 | 10 | 17.40 |
130 x 130 | 10 | 20.64 |
150 x 150 | 10 | 23.88 |
150 x 150 | 12 | 28.40 |
200 x 200 | 15 | 45.30 |
MS Angle Dimensions Table (in MM)
Size (mm) | Leg A (mm) | Leg B (mm) | Thickness (mm) | Common Uses |
25 x 25 | 25 | 25 | 3–5 | Light structures, gates |
50 x 50 | 50 | 50 | 5–6 | Frames, racks |
65 x 65 | 65 | 65 | 6 | Fabrication, fencing |
75 x 75 | 75 | 75 | 6 | Industrial support beams |
100 x 100 | 100 | 100 | 6–8 | Heavy duty structures |
150 x 150 | 150 | 150 | 10–12 | Bridges, construction |
200 x 200 | 200 | 200 | 15 | Structural reinforcement |
Printable MS Angle Weight Chart (in MM & KG/Meter)
Size (mm) | Thickness (mm) | Weight (kg/m) | Leg A (mm) | Leg B (mm) |
25 x 25 | 3 | 1.10 | 25 | 25 |
25 x 25 | 5 | 1.78 | 25 | 25 |
30 x 30 | 3 | 1.34 | 30 | 30 |
30 x 30 | 5 | 2.19 | 30 | 30 |
35 x 35 | 5 | 2.60 | 35 | 35 |
40 x 40 | 5 | 3.01 | 40 | 40 |
45 x 45 | 5 | 3.43 | 45 | 45 |
50 x 50 | 5 | 3.84 | 50 | 50 |
50 x 50 | 6 | 4.56 | 50 | 50 |
60 x 60 | 6 | 5.56 | 60 | 60 |
65 x 65 | 6 | 6.08 | 65 | 65 |
70 x 70 | 6 | 6.60 | 70 | 70 |
75 x 75 | 6 | 7.12 | 75 | 75 |
80 x 80 | 6 | 7.63 | 80 | 80 |
90 x 90 | 6 | 8.65 | 90 | 90 |
100 x 100 | 6 | 9.67 | 100 | 100 |
100 x 100 | 8 | 12.70 | 100 | 100 |
110 x 110 | 10 | 17.40 | 110 | 110 |
130 x 130 | 10 | 20.64 | 130 | 130 |
150 x 150 | 10 | 23.88 | 150 | 150 |
150 x 150 | 12 | 28.40 | 150 | 150 |
200 x 200 | 15 | 45.30 | 200 | 200 |
