| Plate Standards | Astm A240, / Asme Sa240 |
|---|---|
| Material Grades | 409l, 436l, 436, 409, 405, 439, 420, 441, 410, 410s, 446, 430ti, 415, 416, 409m, 430, 410db, 431 |
| Surface | 2b, 2d, Checkered, Etching, Etc, Embossed, Ba, No.1, No.4, Hair Line, Sand Blast, No.8, 8k, Mirror, Brush |
| Finish | Ba No(8), 2d, 2b, Cold Rolled Plate (cr), Hot Rolled Plate (hr), Satin (met With Plastic Coated) |

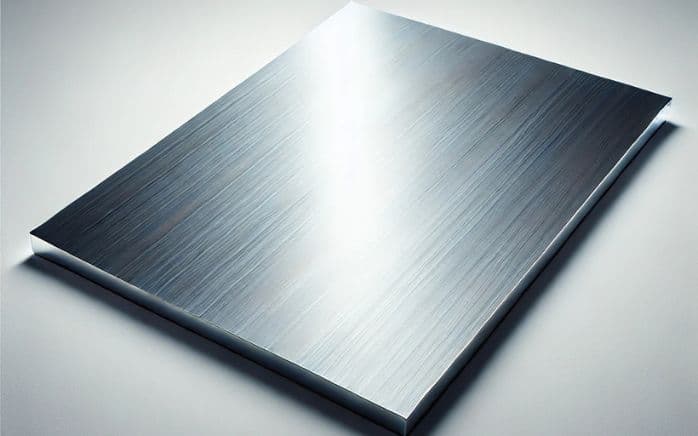

3Cr12L Stainless Steel Plates Manufacturer in India
Inox Steel India is a leading 3cr12l Stainless Steel Plates Manufacturer that provides excellent quality plates with moderate corrosion resistance and high durability that are used in structural applications. They are characterised by high weldability, excellent formability, and abrasion resistance and are therefore widely used in construction, transportation, and industrial processing equipment.
Chemical Composition – 3CR12L Stainless Steel Plates
| Element | Percentage (%) |
|---|---|
| Chromium (Cr) | 10.5 – 12.5 |
| Carbon (C) | ≤ 0.015 |
| Manganese (Mn) | ≤ 1.5 |
| Silicon (Si) | ≤ 1.0 |
| Phosphorus (P) | ≤ 0.040 |
| Sulphur (S) | ≤ 0.030 |
| Nitrogen (N) | ≤ 0.030 |
| Iron (Fe) | Balance |
Mechanical Properties – 3CR12L Stainless Steel Plates
| Property | Value |
|---|---|
| Tensile Strength | 450 – 650 MPa |
| Yield Strength (0.2%) | ≥ 280 MPa |
| Elongation | ≥ 22% |
| Hardness | ≤ 210 HB |
| Density | 7.75 g/cm³ |
| Modulus of Elasticity | 200 GPa |
Physical Properties – 3CR12L Stainless Steel Plates
| Property | Value |
|---|---|
| Melting Point | ~1450°C |
| Thermal Conductivity | 25 W/m·K |
| Electrical Resistivity | 0.60 µΩ·m |
| Magnetic Property | Magnetic |
3cr12l Stainless Steel Plates have been widely used in the B2B market because of its performance and cost relative to the conventional stainless steels. Industries prefer them because they offer them with a compromise between mechanical strength and resistance to corrosion. These Stainless Steel Plates particularly fit in production of conveyors and hoppers, and other architectural buildings of the business to produce credible and durable outcomes in industrial settings that are still very challenging.
Type of Sub-products

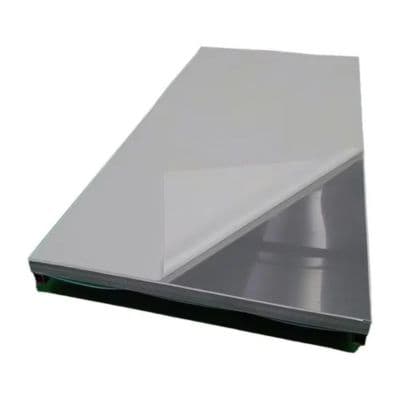

Hot Rolled 3cr12l Stainless Steel Plates Hot Rolled 3cr12l Stainless Steel Plates
Hot rolled 3CR12L stainless steel plates are manufactured at elevated temperatures, resulting in a thicker and more robust material. These plates are ideal for heavy duty applications that require greater strength and resistance, such as structural beams, industrial machinery, and construction projects.
3cr12l Cold Rolled Stainless Steel Plates 3cr12l Cold Rolled Stainless Steel Plates
3Cr12L Cold Rolled Stainless Steel Plates are low-chromium ferritic stainless steel plates manufactured through the cold rolling process, providing a smooth surface finish and excellent dimensional accuracy. They offer good corrosion resistance, high strength, and weldability, making them ideal for structural, automotive, and industrial applications.
