| Thickness | 0.016, 12 |
|---|---|
| Width | 48, 120 |
| Hardness | 25 Hb, 150 Hb |
| Surface Finish | Mill Finish, Anodized, Painted, Polished |

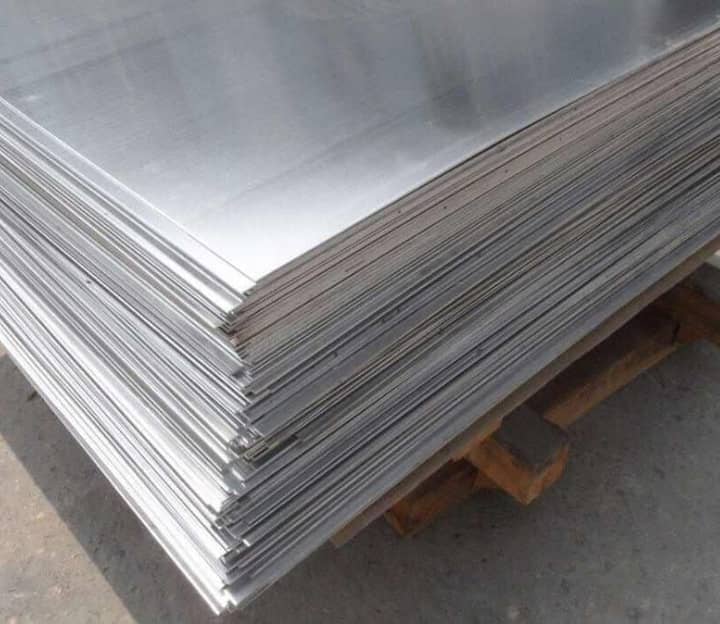

Aluminium 5052 H32 Grade 0.8 mm Sheets & Plates Manufacturer in India
Vintex Steel and Engg Co is a leading Aluminium 5052 0.8 mm Sheets and Plates Manufacturer, we provide high quality aluminium products that are lightweight performance in addition to excellent strength and corrosion resistance. Aluminium 5052 is a magnesium and chromium fortified alloy that has a high formability, weldability and can endure severe environmental factors. The plates and 0.8 mm sheets are made by using precision so that they have the same thickness, surface finish and high level of dimensional accuracy. They are also applicable in marine, automotive, aerospace, and construction industries, among others, as they are diverse and long lasting. These sheets are very effective against saltwater corrosion and hence they would be ideal in ship building and coastal work.We also provide other product also Aluminium 7075 2.0 Mm Sheets
The company offers stability in its B2B service to satisfy the increasing industrial demand, delivery remains on time, and customers will have an option of choice based on the nature of the project. Aluminium 5052 0.8 mm sheets and plates are easy to manufacture, bend, and weld; hence, they are ideal in fuel tank design, pressure vessels, roofing, and decorative architectural designs. They are light but strong, which makes them valuable in reducing total weight without losing their structural integrity and functionality.In case you require some reliable and quality aluminium materials to run your business, then you should give us a call today and we will provide you with a quote or consultation and you will be satisfied with high quality to suit your projects.
Aluminium 5052 – Grade Details (0.8 mm Sheets & Plates)
| Standard / System | Grade / Designation | Temper | Description / Notes |
|---|---|---|---|
| ASTM / ASME | Aluminium 5052 | H32 | Strain-hardened and stabilized; most commonly used temper for sheets and plates |
| ASTM / ASME | Aluminium 5052 | H34 | Higher strength than H32 with good formability |
| ASTM / ASME | Aluminium 5052 | H36 | Increased hardness and strength for structural applications |
| ASTM / ASME | Aluminium 5052 | O (Annealed) | Softest condition; excellent for deep drawing and complex forming |
| ASTM / ASME | Aluminium 5052 | H38 | Maximum strength temper with reduced ductility |
| UNS | A95052 | H32 / H34 / H36 | Unified Numbering System equivalent for Aluminium 5052 |
| DIN | AlMg2.5 | O / H32 / H34 | German standard equivalent with ~2.5% magnesium |
| EN | EN AW-5052 | H32 / H34 | European designation used for general engineering applications |
| ISO | AlMg2.5 | H32 | International standard grade for corrosion-resistant aluminium |
| JIS | A5052 | H32 / H34 | Japanese Industrial Standard equivalent |
| GB | 5A02 | H32 | Chinese standard comparable to Aluminium 5052 |
| IS | IS 737 5052 | O / H32 | Indian standard used for sheets and plates |
| AMS | AMS 4016 / 4017 | H32 / O | Aerospace material specification for aluminium sheets |
| BS | BS 1470 5052 | H32 | British standard equivalent for wrought aluminium |
The various international grade equivalents, tempers, and standards for Aluminium 5052 0.8 mm Sheets and Plates, making it easier to identify the material across different specifications. Aluminium 5052 is recognized globally under multiple designations such as UNS A95052, DIN AlMg2.5, EN AW-5052, and JIS A5052, with H32 being the most commonly used temper due to its balanced strength and formability. The availability of multiple tempers like O, H34, H36, and H38 allows the material to be selected based on specific mechanical and fabrication requirements. These equivalents ensure compatibility across industries such as marine, automotive, aerospace, and general engineering, while maintaining consistent corrosion resistance and performance standards worldwide.
Aluminium 5052 0.8 mm Sheets & Plates Weight Chart In KG, MM, PDF
| Sheet Size (mm) | Thickness (mm) | Weight per Sheet (kg approx.) |
|---|---|---|
| 1000 × 1000 | 0.8 | 2.14 kg |
| 1220 × 1220 (4 × 4 ft) | 0.8 | 3.99 kg |
| 1220 × 2440 (4 × 8 ft) | 0.8 | 7.98 kg |
| 1250 × 2500 | 0.8 | 8.38 kg |
| 1500 × 3000 | 0.8 | 9.65 kg |
| 2000 × 1000 | 0.8 | 4.29 kg |
| 2000 × 2000 | 0.8 | 8.58 kg |
A rough guide to the weight of standard 0.8 mm sheets and plates of Aluminium 5052, depending on the size of the sheet. The chart, which was obtained by calculating the normal density of Aluminium 5052, assists the buyer, fabricators and engineers to estimate the weight of the material to work with, transport and the weight of the material to use in the project planning. Real weights can be slightly different due to manufacturing tolerances and temper, but this chart is a sure guide to the comparison of sizes and the correct choice of sheet or plate to be used in particular industrial, marine, and commercial processes.
Type of Sub-products
Aluminium 5052 T3/t351 Sheets & Plates Aluminium 5052 T3/t351 Sheets & Plates
Aluminium 5052 T3/T351 Sheets & Plates are heat treated aluminium sheets and plates known for their excellent strength, corrosion resistance, and durability. The T3/T351 temper enhances mechanical properties while maintaining good formability, making them ideal for marine, aerospace, automotive, and industrial applications. These sheets are commonly used in fuel tanks, pressure vessels, and structural components where long lasting performance and reliability are essential.
Aluminium 5052 H32/h34 Sheets & Plates Aluminium 5052 H32/h34 Sheets & Plates
Aluminium 5052 H32/H34 Sheets & Plates are cold worked aluminium sheets and plates that provide enhanced strength and excellent corrosion resistance. The H32/H34 temper ensures a perfect balance of hardness and formability, making them suitable for marine, automotive, and architectural applications. These sheets are lightweight, durable, and ideal for environments exposed to moisture or chemicals, offering long lasting performance and easy fabrication.
