What are the key mechanical properties of Aluminium Alloys Plate 5082?

The key mechanical properties of Aluminium Alloys Plate 5082 include high tensile strength, excellent corrosion resistance, good fatigue strength, and superior formability, making it suitable for marine, automotive, and structural applications.

What sizes, thicknesses, and dimensions are available for Aluminium Alloys Plate 5082?

Aluminium Alloys Plate 5082 is available in thicknesses from 3 mm to 200 mm, widths up to 2500 mm, and custom lengths, with tolerances adhering to ASTM, EN, and JIS standards.

Which international standards and specifications govern Aluminium Alloys Plate 5082?

Aluminium Alloys Plate 5082 is governed by standards such as ASTM B209, ASTM B221, EN 485, ISO 6361, and JIS H4000, which define its chemical composition, mechanical properties, and dimensional tolerances.

Aluminium Alloy 5082 Plate Manufacturer In India Supplying 5082, 5083, 5754 & 5052 Grades

Name: Aluminium Alloy 5082 Plate Manufacturer In India Supplying 5082, 5083, 5754 & 5052 Grades
Brand: United Stainless Llp
Availability: InStock
Rating: 4 (16 reviews)

₹82 - ₹182

Minimum Order : 80 plate

Customization as per requirements

Specification Details
Plate Standards	Astm A240, / Asme Sa240
Material Grades	405, 409, 409l, 410, 410s, 415, 416, 430, 431, 439, 436, 436l, 441, 446, 430ti, 409m, 410db, 420
Surface	2b, 2d, Ba, No.1, No.4, No.8, 8k, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching, Etc
Finish	Hot Rolled Plate (hr), Cold Rolled Plate (cr), 2b, 2d, Ba No(8), Satin (met With Plastic Coated)

Aluminium Alloy 5082 Plate Manufacturer in India Supplying 5082, 5083, 5754 & 5052 Grades

United Stainless LLP is a prominent Aluminium Alloys Plate 5082 Manufacturer in India with high quality aluminium plates which have great corrosion resistance, high mechanical capability and good weldability. Alloy 5082 is extensively applied in marine constructions, storage tanks, transport machines, and in structural constructions where the strength and durability are paramount.

Consistent and uniform in quality and quantity, Aluminium Alloys Plate 5082 is offered in various thickness, width and surface finish, to suit various industrial needs, through a reliable B2B portal. In needs of alternative alloys, Aluminium Alloys Plate 5052 is also used in industries as it is better formed and Aluminium Alloys Plate 3003 is used in general-purpose fabrication and moderate strength.

Aluminum Alloy 5082 Plate is well resistant to seawater and other hostile environments and is therefore applicable in offshore and coastal applications. Being a good Aluminium Alloys Plate 5082 Supplier In India, we maintain the accuracy of dimensions, uniformity and international standards of each of the plates supplied.

Material & Grades of Aluminium Alloys Plates

Aluminium alloy plates are produced in various grades and tempers for structural, marine, automotive, and general engineering applications.

Material Type	Alloy Grade	Temper	Thickness (mm)	Width (mm)	Typical Applications
Aluminium Alloy	5082	H32 / H116	3.0 – 120.0	1000 – 2500	Marine structures
Aluminium Alloy	5052	H32 / H34	1.5 – 100.0	1000 – 2500	Formed components
Aluminium Alloy	3003	H14 / H24	0.8 – 50.0	1000 – 2000	General fabrication
Aluminium Alloy	6061	T6	3.0 – 150.0	1000 – 2500	Structural parts

Key Features & Advantages

High corrosion resistance
Good strength-to-weight ratio
Excellent weldability
Smooth surface finish
Custom & standard sizes available
Long service life

Aluminium 5082 Plates Chemical Composition

Aluminium 5082 Plates are corrosion resistant due to the presence of silicon, zinc, and other elements.

Aluminium 5082 Plates Chemical Composition
Aluminium Alloy	Al (Min.)	Cu	Mn	Mg	Si	Zn	Other Elements
5082	93.0%	0.10%	0.20–0.50%	4.0–4.9%	0.20–0.40%	0.20%	0.15% max (each), 0.05% others

High Quality Aluminium 5082 Plates Mechanical Properties

Mechanical Properties of Aluminium 5082 Plates are listed below to assist you understand the product's durability.

Aluminium 5082 Plates Mechanical Properties
Aluminium Alloy	Temper	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Brinell Hardness (HBW)
5082	H32	330	240	10	75

Aluminium 5082 Plate Equivalent Grade

Our dedication to quality guarantees that every Aluminium 5082 Plate meets the highest standards, establishing us as a reliable Aluminium 5082 Plates Manufacturer in India.

Aluminium 5082 Plate Equivalent Grade
STANDARD	EN	DIN	UNS
5082	EN AW-5082	3.3535	A95082
5082-H32	EN AW-5082 H32	3.3535 H32	A95082
5082-H34	EN AW-5082 H34	3.3535 H34	A95082
5082-H116	EN AW-5082 H116	3.3535 H116	A95082

Type of Sub-products

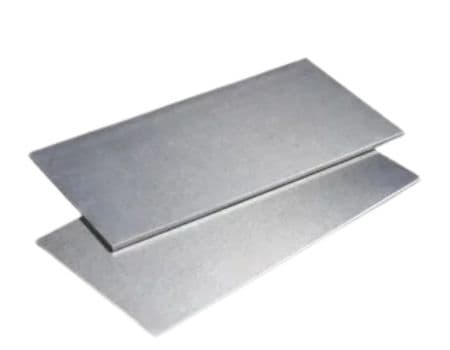

Aluminium 5082 Sheets Manufacturer In India
Aluminium 5082 Sheets Manufacturer In India
Aluminium 5082 Sheets are high strength, corrosion resistant sheets known for their excellent performance in marine, automotive, and industrial applications. With superior resistance to seawater and atmospheric corrosion, these sheets are ideal for shipbuilding, pressure vessels, and structural components. Their lightweight nature, combined with good weldability and formability, makes them a preferred choice for fabrication and construction projects.

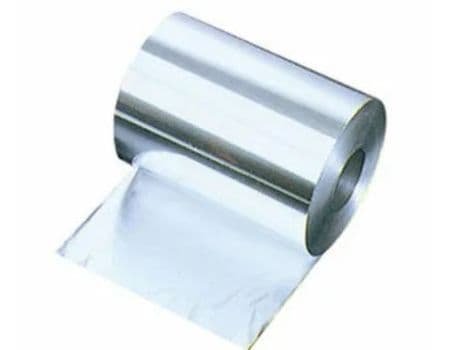

Aluminium 5082 Foils Manufacturer In India
Aluminium 5082 Foils Manufacturer In India
Aluminium 5082 Foils are lightweight, corrosion resistant, and high strength foils made from premium 5082 aluminium alloy. Known for their excellent resistance to seawater and chemical environments, these foils are ideal for marine, automotive, packaging, and industrial applications. Their superior formability and surface finish make them perfect for rolling, laminating, and fabrication processes.
