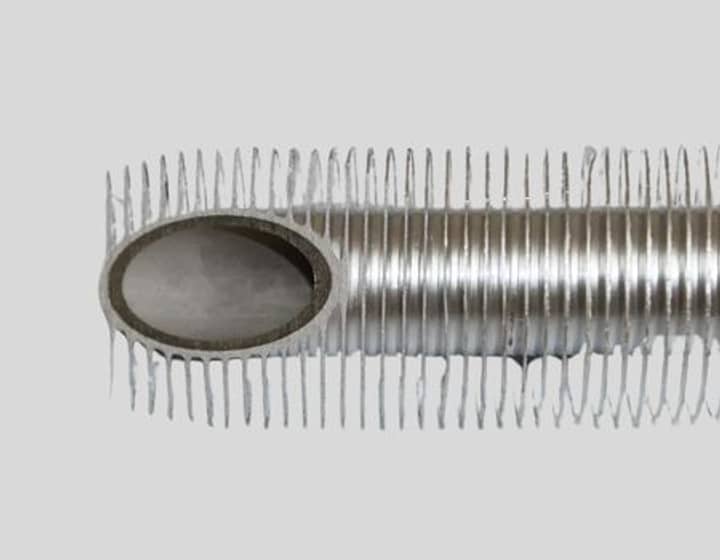

Aluminium Fin Tube Lightweight Construction With High Fin Formability And Consistent Bonding Manufacturer In India

Name: Aluminium Fin Tube Lightweight Construction With High Fin Formability And Consistent Bonding Manufacturer In India
Brand: Timex Metals
Availability: InStock
Rating: 4 (1 reviews)

Specification Details
Fin Thickness	Minimum 0.8mm, Maximum 3 Mm
Fin Height	Minimum 0.25″(6.35 Mm), 1.5″(38 Mm)
Fin Density :	Minimum 46 Fins Per Meter, Maximum 287 Fins Per Meter
Material	Carbon Steel, Alloy Steel, Stainless Steel, High Nickle & Incolloy, Inconel
Tubes Diameter	30mm Od Minimum, 220mm Od Maximum

Aluminium Fin Tube Preferred for Applications Requiring Low Weight Rapid Heat Response and Ease of Fabrication

Timex Metals is a reliable Aluminium Fin Tube Manufacturer company, which produces high-quality fin tubes with high heat transfer capability for industrial and commercial use. These aluminum fin tubes are designed with the latest technology of manufacturing to be characterized by high thermal conductivity, resistance to corrosion, and high mechanical strength. They find extensive application in heat exchangers, condensers, air coolers, and refrigeration systems in the transfer of energy. The company has a philosophy of quality and innovation that offers credible solutions that satisfy international standards and provide excellent value in all industries.

Aluminium fin tubes are commonly applied when there are high heat transfer rates needed, but the additional weight is not needed on the system, and therefore they are easy to install and fabricate as well as maintain. The finning of the aluminium and the various base tube materials enable the engineers to be able to adjust the thermal performance to the requirements of pressure and temperature, particularly in cases where they consider alternative finned base tube material like Carbon Steel Fin Tube due to the increased strength it offers. On a B2B portal, configuration of fin alloy, tube grade, and weight per meter are displayed in detailed tables to assist buyers and project teams to compare configurations correctly, provide estimates of the loads required, and also choose the best configuration fin tube design based on operating conditions and not assumptions.

Aluminium Fin Tube – Material & Specification Table

Fin Material	Fin Grade	Base Tube Material	Base Tube Grade	Tube OD (mm)	Wall Thickness (mm)	Fin Height (mm)	Fin Pitch (FPI)	Approx. Weight (kg/m)
Aluminium	AA1100	Carbon Steel	ASTM A179	25.4	2.11	9	10	1.95
Aluminium	AA1100	Carbon Steel	ASTM A192	31.75	2.77	11	9	2.90
Aluminium	AA3003	Carbon Steel	ASTM A106 Gr B	38.10	3.05	12	8	3.95
Aluminium	AA1100	Stainless Steel	ASTM A213 TP304	25.4	2.11	9	10	2.20
Aluminium	AA3003	Stainless Steel	ASTM A213 TP316	31.75	2.77	11	9	3.25
Aluminium	AA3003	Alloy Steel	ASTM A213 T11	38.10	3.40	13	8	4.40

Functional Role in Thermal System: Aluminium fin tubes are developed to be more effective in terms of heat transfer in cases where quick heat response and light weight equipment are needed. They are highly thermal conductive and therefore, can be used in air-cooled systems as well as gas-to-liquid heat exchange systems in which effective heat dissipation is needed and optimization of space is needed.

Manufacturing Process/ Fin Geometry:They are manufactured by extrusion, mechanical bonding, or roll on finning of these fin tubes to provide good contact of the fins to the tube. The profile of the fin, distance and height of the fin are also designed in such a way that the airflow resistance is countered with the maximum surface area, which enhances the overall thermal performance without enhancing the pressure drop.

Quality and Grade Deviations on Material: The most common grade of aluminium fin tubes used is 1060 or 3003 or 6063 depending on the operating temperature and the exposure to corrosion. These grades have a good resistance to atmospheric corrosion and also offer formability and structural integrity in the long-term service.

Service Life/ Operational Advantages: Aluminium fin tubes are good against oxidation and have good ability to resist oxidation in the normal environment and can easily be handled, installed and maintained. They are lightweight, so they do not have to carry heavy structures on the frames of the heat exchanger, and can therefore be used continuously in HVAC, power generation, and general industrial cooling.

Client Project Report of Fastener

Product Supplied	Quantity	Cities (India)
Aluminium Fin Tubes for Air Cooled Heat Exchangers	186 Pieces	Vadodara
Aluminium Fin Tubes for HVAC Condenser Systems	171 Pieces	Noida
Aluminium Fin Tubes for Industrial Radiator Units	203 Pieces	Chakan
Aluminium Fin Tubes for Process Cooling Assemblies	164 Pieces	Haldia

Air-side heat transfer is found in such applications as aluminium fin tubes where weight, thermal conductivity, and corrosion resistance are necessary. The height of the fins and extrusion quality have a direct effect on the heat dissipation and the airflow behavior on the tube surface. Grade selection influences mechanical strength and cyclic thermal loads performance. Helical Fin Tubes may also be considered in compact thermal designs with greater fin density and better air turbulence are required in small space of installation.
