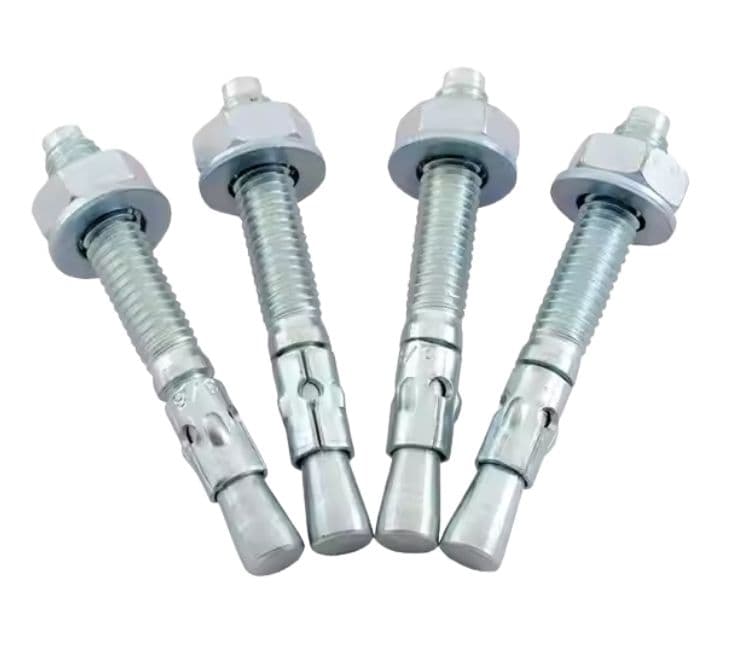

Anchor Bolt Manufacturer In India Supplying Carbon Steel Astm A36 Astm F1554 Stainless Steel Ss304 Ss316 Grades
| Size | M6 to M72 (Metric) |
|---|---|
| Type | Bolt, Nut, Screw, Washer, Rivet, Threaded Rod, Studs, Coated, Nails, Custom Fasteners |
| Standard | Din, Iso, Jis, Gb, Is, Bs, Astm |
| Length | 50 mm to 3000 mm |
| Material | Stainless Steel, Monel, Inconel, Incoloy, Hastelloy, Nickel, Silicon Bronze, Phosphor Bronze |
Anchor bolts manufactured in India for structural foundations construction equipment mounting and industrial applications
Delta Fitt Inc is a trusted Anchor Bolts manufacturer in India, which provides fastening products to fix a structure on concrete and masonry bases. Anchor bolts are designed with a high holding capacity, structural stability, and resistance to mechanical stress that are long-lasting and, therefore, are critical in construction and industrial applications.
The anchor bolts have application in bridges, power plants, transmission towers, foundations of heavy machinery, steel structures and infrastructural projects. These bolts are manufactured with a high degree of threading and controlled dimensions so that they provide accurate alignment and dependable transfer of loads between structural elements. They come in various diameters, lengths, types of bends as well as finishes to suit different site and project requirements.
Anchor Bolts – Material & Grade Table
| Common Name | Standard / Grade | Typical Material | Typical Applications | Key Properties |
|---|---|---|---|---|
| L-Type Anchor Bolt | ASTM F1554 Gr 36 / 55 / 105 | Carbon Steel | Foundations, columns, structural supports | High load-bearing capacity |
| J-Type Anchor Bolt | ASTM F1554 | Carbon Steel | Concrete anchoring, equipment foundations | Secure anchorage, good pull-out resistance |
| U-Type Anchor Bolt | ASTM A307 / F1554 | Carbon Steel | Pipe supports, base plates | Strong holding strength, easy installation |
| Straight Anchor Bolt | ASTM A193 B7 / A307 | Alloy / Carbon Steel | Machinery, heavy equipment | High tensile strength |
| Stainless Steel Anchor Bolt | ASTM F593 | SS 304 / SS 316 | Marine & corrosive environments | Excellent corrosion resistance |
| Hot Dip Galvanized Anchor Bolt | ASTM F1554 | Carbon Steel (HDG) | Outdoor & structural use | Enhanced corrosion protection |
Anchor Bolts – Types, Sizes & Availability Table
| Anchor Bolt Type | Size Range | Thread Standard | Finish / Coating | Minimum Quantity |
|---|---|---|---|---|
| L-Type Anchor Bolts | M12 – M100 | ISO / ASTM | Black / HDG / Zinc | 200 Pcs |
| J-Type Anchor Bolts | M12 – M100 | ISO / ASTM | Black / HDG / Zinc | 200 Pcs |
| U-Type Anchor Bolts | M16 – M100 | ISO / ASTM | Black / HDG | 200 Pcs |
| Straight Anchor Bolts | M12 – M72 | ISO / ASTM | Black / HDG | 200 Pcs |
| Custom Anchor Bolts | As Required | As Required | As Required | 200 Pcs |
Key Features of Anchor Bolts
Anchor bolts are selected for critical structural fastening applications.
- Strong anchoring and load-bearing capability
- High resistance to pull-out and shear forces
- Accurate threading for secure installation
- Suitable for heavy-duty structural use
- Long service life in demanding environments
These features make anchor bolts a reliable choice for foundation and structural fastening systems.
Along with anchor bolts, we also supply Plow Bolts, Hex Bolts, and Heavy Hex Bolts, enabling buyers to source a complete range of fastening solutions from a single manufacturer through our B2B portal.Type of Sub-products

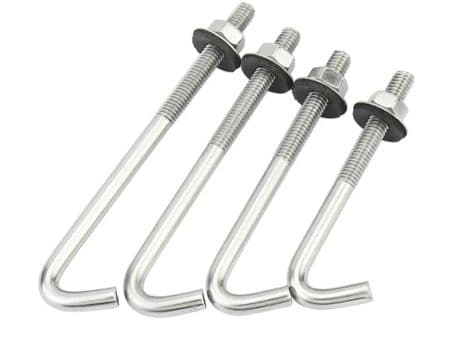

L Type Anchor Bolt L Type Anchor Bolt
L Type anchor bolts are embedded into concrete foundations to support heavy structural loads. Common in construction and infrastructure, they feature a 90° bend for superior anchoring strength and are available in customized lengths and finishes.

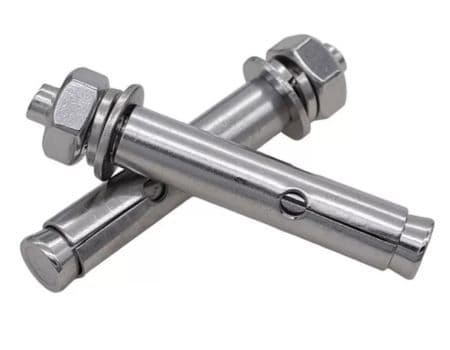

Sleeve Anchor Bolt Sleeve Anchor Bolt
Sleeve anchor bolts provide reliable expansion anchoring in concrete, brick, and masonry. These are often used for light to medium duty fastening of railing posts, machinery bases, and wall panels, offering quick installation and strong grip.
