| Standard | Is Iec 62305, 62561 |
|---|---|
| Impulse Current | 350 Μs, 100 Ka 10 |
Bare Stranded Copper Conductor Electrolytic Copper High Conductivity OF Copper ASTM B187 ASTM B152 IS 8130 Industrial Grade Stranded Conductor
Veraizen Earthing is a brand of the electric industry with a talented reputation for providing the best quality of bare stranded copper conductors that meet the international requirements. Their products are designed in such a way that they deliver a uniform performance and high conductivity, which is suitable for a variety of electrical applications. In industrial power systems, due to massive commercialisation, these conductors can guarantee the efficiency of continuous current flow and a long lifespan, enabling the engineers and the procurement departments to prevail in operational efficiency.

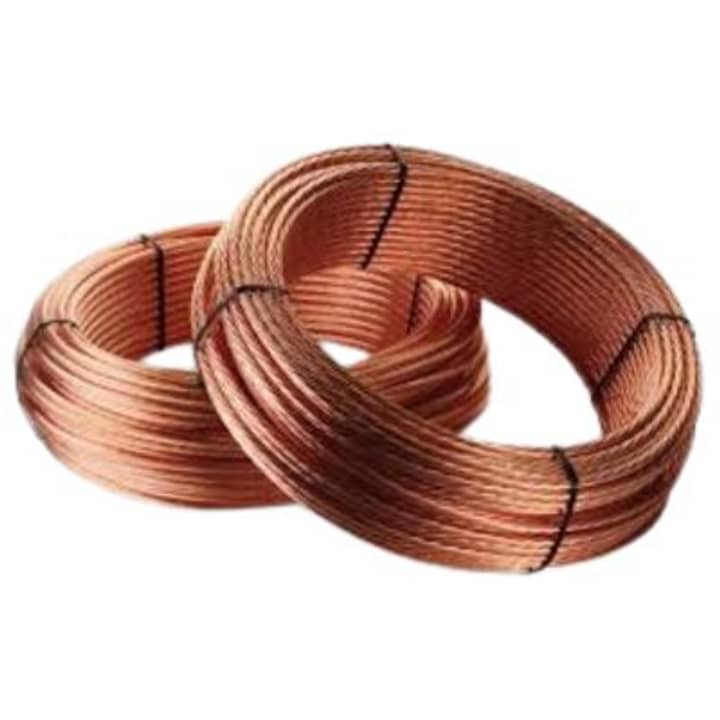

Bare Stranded Copper Conductor This is made by twisting several very thin strands of copper with great care. This special design is not only flexible but also stronger in mechanical strength than solid copper conductors. Its stranded construction enables less complicated installation in restricted or complicated configurations, the risk of breakage during handling is minimised, and the electrical operation is improved even at different environmental conditions. This has made it the choice for overhead lines, busbars and other electrical distribution networks.
- High-Quality Manufacturing: Being one of the prominent Bare Stranded Copper Conductor Manufacturers the conductors are made of high-purity copper and are closely monitored in all production processes.
- Industry Reliance: The conductors are needed by conductor holder suppliers and other partners in the industry to provide secure and stable connections that comply with safety and performance standards.
- Reliable Performance: The combination of quality material and accurate manufacturing ensures the conductors deliver reliable performance throughout their service life.
- Cost Efficiency: By maintaining high standards in production and material, these conductors help minimise maintenance costs and reduce downtime in electrical systems.
Bare stranded copper conductor is being embraced more by the B2B industry due to its excellent electrical performance, mechanical and physical strength and durability. These conductors are dependable in delivering uniform performance to industrial, commercial and infrastructural projects and are also very compatible with new methods of installation. With the selection of such conductors, the businesses are able to attain effective transmission of power, minimum energy loss and durability that is very reliable, thus, being a very cost-effective and convenient option in all the large-scale electrical installations.
Bare Stranded Copper Conductor
| Conductor Size (mm²) | Stranding (No. of Strands × Strand Dia mm) | Approx. Weight (kg/m) |
|---|---|---|
| 6 | 7 × 0.85 | 0.056 |
| 10 | 7 × 1.13 | 0.093 |
| 16 | 7 × 1.50 | 0.148 |
| 25 | 7 × 1.88 | 0.231 |
| 35 | 7 × 2.25 | 0.324 |
| 50 | 7 × 2.67 | 0.462 |
| 70 | 7 × 3.13 | 0.647 |
| 95 | 7 × 3.75 | 0.875 |
| 120 | 7 × 4.21 | 1.10 |
| 150 | 19 × 2.85 | 1.37 |
| 185 | 19 × 3.25 | 1.69 |
| 240 | 19 × 3.75 | 2.19 |
| 300 | 19 × 4.21 | 2.74 |
| 400 | 19 × 4.85 | 3.63 |
| 500 | 37 × 3.35 | 4.53 |
| 630 | 37 × 3.75 | 5.70 |
Bare Stranded Copper Conductors Clients Project
Product Supplied Quantity Cities (India) Bare Stranded Copper Conductor for Oil and Gas Industry 130 Pieces Bareilly, Uttar Pradesh Bare Stranded Copper Conductors supplied to Power Plant 150 Pieces Mumbai, Maharashtra Bare Stranded Copper Conductor supply for Petrochemical 190 Pieces Tamil Nadu, Chenna
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| Bare Stranded Copper Conductor for Oil and Gas Industry | 130 Pieces | Bareilly, Uttar Pradesh |
| Bare Stranded Copper Conductors supplied to Power Plant | 150 Pieces | Mumbai, Maharashtra |
| Bare Stranded Copper Conductor supply for Petrochemical | 190 Pieces | Tamil Nadu, Chenna |
Frequently Asked Questions
What makes Bare Stranded Copper Conductors flexible?
What is the difference between a bare stranded conductor and a solid copper conductor?
