Blind Flanges Exporter & Supplier – Astm A105n, A350 Lf2, A694 F60/f65/f70, A182 F304/304l/316/316l/321/347, Alloy F11/f22
| Flanges Types | Blind, Slip On, Weld Neck, Long Weld Neck, Threaded, Companion, Lap Joint |
|---|---|
| Class | 150 Lbs, 300 Lbs, 600 Lbs, 900 Lbs, 1500 Lbs, 2500 Lbs Asa 150, Asa 300, Pn 6, 10, 16, 25, 40, 64, 100, 160 |
| Size | 1/2″ (15 Nb), 48″ (1200nb) Dn10~dn5000 |
| Type | Raised Face (rf), Flat Face (ff), Ring Type Joint (rtj), Lap Joint Face (ljf), Large Male Female (lmf), Small Male Female (smf), Large Tongue & Groove, Small Tongue, Groove |
Blind Flanges Exporter in India – ASTM A105, A350 LF2, A694 F52/F60/F65, A182 F304/316/321/347/904L, Duplex F51, Super Duplex F53/F55

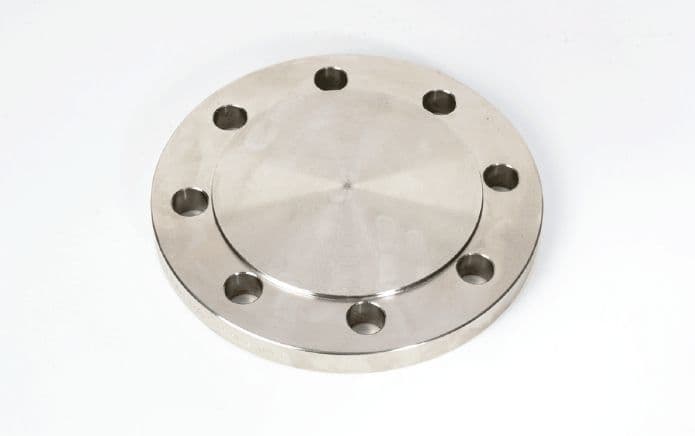

Remax Forge & Fittings is a renowned Blind Flanges manufacturer in India, specializing in high-performance flanges designed for sealing the ends of piping systems. These flanges effectively block flow in pipelines, ensuring safety and efficiency in high-pressure applications. Our Blind Flanges, which are made with premium-grade materials and precision engineering, offer remarkable corrosion resistance and durability, making them appropriate for use in petrochemical, maritime, and oil and gas industries. They provide a safe and leak-proof closure for vital pipeline systems because of their sturdy construction, which does away with the necessity for welding. As a trusted Blind Flanges supplier in India, we offer flanges in various sizes, materials, and pressure ratings to meet diverse industrial requirements. Our flanges undergo extensive testing to ensure their strength and dependability, whether they are used for temporary or permanent sealing. They are made of alloy steel, carbon steel, and stainless steel and are resistant to high pressures and temperatures, guaranteeing long-term performance. Remax Forge & Fittings places a high value on client satisfaction by providing premium Blind Flanges along with timely service and affordable prices.
Blind Flanges Weight Chart in KG, MM, PDF
| NPS (Inch) | Outside Diameter (mm) | Thickness (mm) | Approx Weight (Kg) |
|---|---|---|---|
| ½" | 90 | 11 | 0.7 |
| ¾" | 100 | 12 | 1.0 |
| 1" | 110 | 13 | 1.4 |
| 1½" | 125 | 14 | 2.0 |
| 2" | 150 | 16 | 3.2 |
| 2½" | 180 | 18 | 5.0 |
| 3" | 190 | 19 | 6.2 |
| 4" | 230 | 24 | 11.0 |
| 5" | 255 | 26 | 15.5 |
| 6" | 280 | 29 | 20.8 |
| 8" | 345 | 35 | 36.5 |
| 10" | 405 | 39 | 58.0 |
| 12" | 485 | 45 | 95.0 |
| 14" | 535 | 48 | 125.0 |
| 16" | 595 | 52 | 170.0 |
| 18" | 635 | 55 | 210.0 |
| 20" | 700 | 58 | 280.0 |
| 24" | 815 | 64 | 420.0 |
The weight chart for blind flanges above gives an estimate of the weights of ASME B16.5 Class 150 raised face blind flanges for a range of nominal pipe sizes, from ½" to 24". Larger outside diameters and the need for thickness to resist pressure conditions cause the weight to gradually grow with size. Planning, estimating, transportation, and structural load calculations all use these values as a general guide. Depending on the material grade (carbon, stainless, alloy, or duplex steel), as well as certain production tolerances and pressure ratings, actual weights may differ slightly.
Blind Flanges – Material Grade Table
| Material Category | ASTM Standard | Grade / Specification | Common Applications |
|---|---|---|---|
| Carbon Steel | ASTM A105 / A105N | A105, A105N | Oil & Gas, Refineries, Petrochemical |
| ASTM A350 | LF2 CL1 / CL2 | Low Temperature Services | |
| ASTM A694 | F42, F46, F52, F56, F60, F65, F70 | High Pressure Transmission | |
| Stainless Steel | ASTM A182 | F304, F304L | Food, Chemical Processing |
| ASTM A182 | F316, F316L | Marine, Corrosive Environment | |
| ASTM A182 | F321, F347 | High Temperature Applications | |
| ASTM A182 | F317L, F904L | Severe Corrosion Resistance | |
| Alloy Steel | ASTM A182 | F5, F9 | Power Plants |
| ASTM A182 | F11, F22 | High Temperature & Pressure | |
| ASTM A182 | F91 | Boiler & Heat Exchanger | |
| Duplex Steel | ASTM A182 | F51 (UNS S31803 / S32205) | Offshore & Marine |
| Super Duplex Steel | ASTM A182 | F53 (UNS S32750), F55 (UNS S32760) | High Chloride Environment |
| Nickel Alloy | ASTM B564 | Inconel 600, 625 | High Heat Applications |
| ASTM B564 | Monel 400 | Marine & Chemical | |
| ASTM B564 | Hastelloy C276 | Highly Corrosive Media | |
| Other Materials | ASTM B381 | Titanium Grade 2, Grade 5 | Aerospace & Marine |
Type of Sub-products

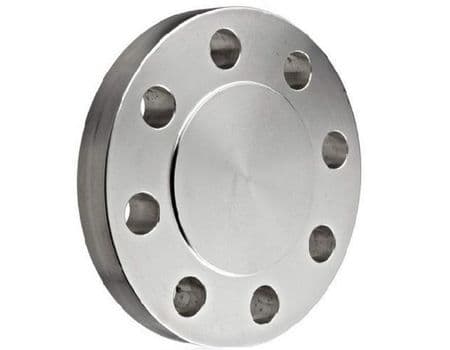

Raised Face Blind Flange Raised Face Blind Flange
A Raised Face Blind Flange features a slightly elevated surface around the sealing area, which enhances gasket compression and ensures a tighter, more reliable seal. It is commonly used in high-pressure piping systems to isolate sections during maintenance or inspection. The raised face design improves leak prevention in applications involving steam, gas, and chemical flow.
Flat Face Blind Flange Flat Face Blind Flange
Flat Face Blind Flanges are designed with a smooth, uniform sealing surface that allows for full contact with the mating flange or gasket. This type is ideal for low-pressure systems where flange surface distortion must be avoided, such as in water distribution and low-temperature piping. Its even face ensures consistent sealing without the need for extra reinforcement.
