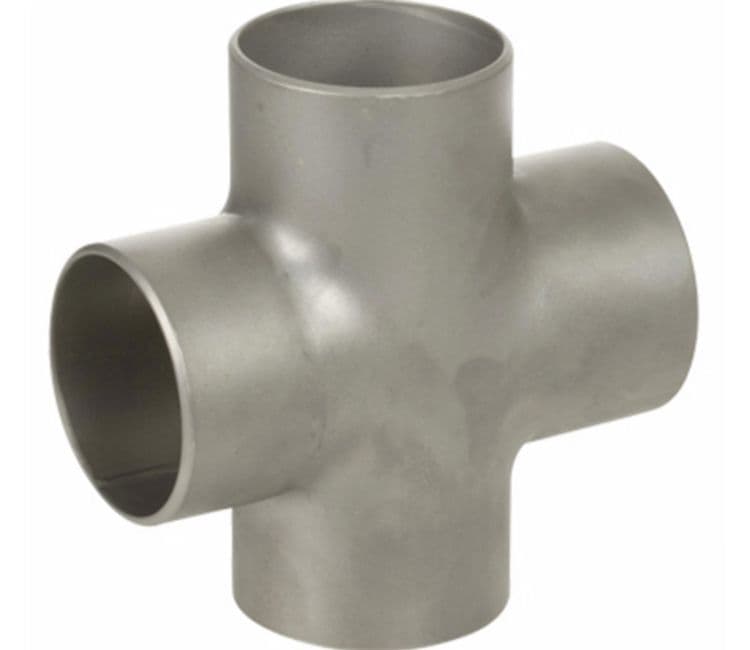

Butt Welded Cross Four Way Pipe Intersection Fitting Allowing Flow Distribution In Multiple Directions Manufacturer In India
| Standards | Ansi B 16.9 Astm A403 Asme Sa403, Api 590 605 Asme B16.9, Asme B16.25 |
|---|---|
| Dimensions | Ansi B16.9, Ansi B16.28, Mss Sp 43 Type A, Mss Sp 43 Type B, Jis B2312, Jis B2313 |
| Materials | Stainless Steel, Duplex Steel, Carbon Steel, Alloys Steel, Copper Nickel, Nickel, Monel, Inconel, Hastelloy, Titanium, Brass, Aluminium, Smo 254 |
Butt Welded Cross Used in Complex Piping Layouts Where Equal or Unequal Line Connections Are Required Supplier in India
Timex Metals is a foremost Butt Welded Cross Manufacturer, that produces high-quality fittings that are meant to provide leak-proofness and durability in piping connections in different industrial uses. These crosses are designed to be precise and reach four pipes to facilitate a free flow of fluids and balanced supply of the pipes in the complicated piping systems. Our butt-welded crosses are manufactured with the highest grades of stainless steel, carbon steel, and alloy steel that ensure that they adhere to international standards, depending on the size, pressure rating, and cross thickness.
Material and Grades Table – Butt Welded Cross
| Material / Grade | Standard Sizes (inch) | Weight per Meter (kg/m) | Notes / Applications |
|---|---|---|---|
| Carbon Steel ASTM A234 WPB | 1/2" – 36" | 1.5 – 52.0 | High strength, suitable for oil, gas, and power piping |
| Stainless Steel SS 304/304L | 1/2" – 36" | 1.3 – 48.0 | Corrosion-resistant, ideal for general industrial services |
| Stainless Steel SS 316/316L | 1/2" – 36" | 1.4 – 50.0 | Excellent resistance to chemicals and marine environments |
| Alloy Steel ASTM A234 WP11 | 1/2" – 24" | 1.6 – 54.0 | Designed for high-temperature and high-pressure systems |
| Duplex Stainless Steel 2205 | 1/2" – 24" | 1.5 – 49.0 | High strength and superior corrosion resistance |
- Function in Four-Way Flow Distribution: Butt welded crosses are applied where one pipeline has to be split to four directions at an intersection. They allow controlled flow or take away of fluids and gases and, therefore, they are appropriate to multidimensional piping systems in process plants where the space efficiency and flow symmetry are needed.
- Structural Stress Take into Account: Crosses have a greater stress concentration than tees because of the four-way crossing of pipes. The correct design, thickness of the walls and geometry are essential to sustain mechanical strength and to avoid fatigue or deformation of pressure and thermal expansion.
- Hand Finishing Process and Precision of Welds: These fittings are made by means of hot forming or fabrication welding in order to maintain the same thickness of the wall throughout the outlets. Proper beveling and roundness at both ends are able to produce strong butt welds joints at both ends, which lowers the chances of developing a weld defect upon installation.
- Material Grades and Application Reliability: Carbon Steel, Stainless Steel, Alloy Steel and Nickel Alloy butt welded crosses meet the requirements of ASME B16.9 standards. They are usually employed in the refineries, power plants and chemical plants where they are required with durability and pressure resistance combined with long term system integrity.
Client Project Report of Butt Welded Cross
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| Butt Welded Cross for Process Pipeline Intersections | 168 Pieces | Dahej |
| Butt Welded Cross for Refinery Utility Headers | 207 Pieces | Vadinar |
| Butt Welded Cross for Power Plant Distribution Lines | 174 Pieces | Talcher |
| Butt Welded Cross for Chemical Plant Piping Networks | 196 Pieces | Vapi |
The butt welded crosses are used to divide or unite the flow in four directions without any discontinuity in internal bore and uniform distribution of stress. Tightness and precise control of the wall thickness and the welding ends is necessary to prevent the occurrence of turbulence and stress concentration at the junction areas. In piping layout optimization, Buttweld Reducers are commonly compared with crosses to control the changes of the diameters without the reduction of the flow efficiency and integrity of the welds. With proper selection, there is long-term reliability in terms of pressure, temperature and cyclic loading conditions.
Type of Sub-products

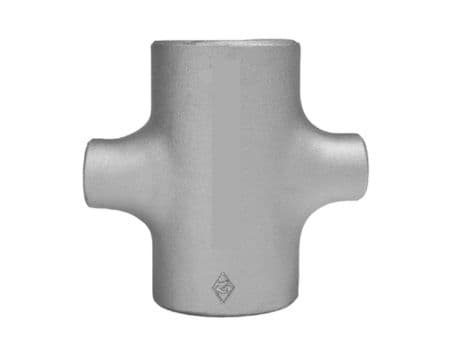

Reducing Butt Welded Cross Reducing Butt Welded Cross
Reducing Butt Welded Cross offers a central inlet with smaller branch outlets to accommodate different flow rates. Commonly used in systems with varying pipeline diameters and pressure zones.Used in high pressure and high temperature service environments like refineries and power plants.

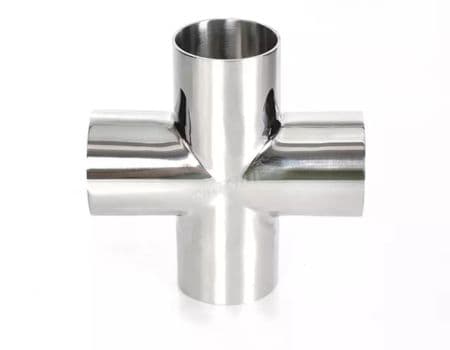

Equal Butt Welded Cross Equal Butt Welded Cross
Features four equal sized outlets forming a precise cross connection. Ideal for pipelines requiring even distribution and flow splitting in symmetrical directions.
