Buttweld Pipe Fittings Manufacturer In India – High Quality Industrial Pipe Fittings

Name: Buttweld Pipe Fittings Manufacturer In India – High Quality Industrial Pipe Fittings
Brand: Metalica Forging Inc
Availability: InStock
Rating: 5 (17 reviews)

Specification Details
Standards	Ansi B 16.9 Astm A403 Asme Sa403, Api 590 605 Asme B16.9, Asme B16.25
Dimensions	Ansi B16.9, Ansi B16.28, Mss Sp 43 Type A, Mss Sp 43 Type B, Jis B2312, Jis B2313
Materials	Stainless Steel, Duplex Steel, Carbon Steel, Alloys Steel, Copper Nickel, Nickel, Monel, Inconel, Hastelloy, Titanium, Brass, Aluminium, Smo 254

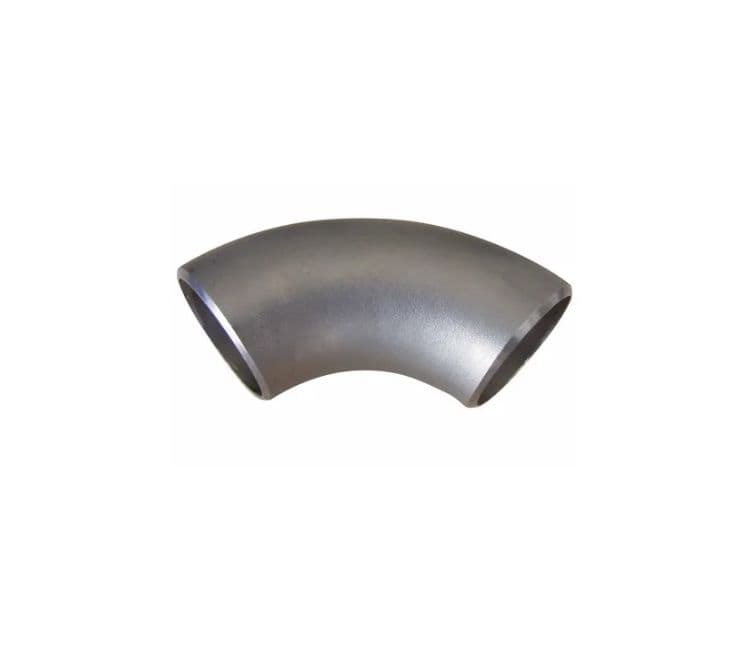

Buttweld Pipe Fittings

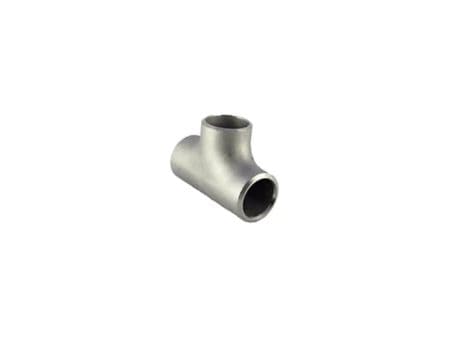

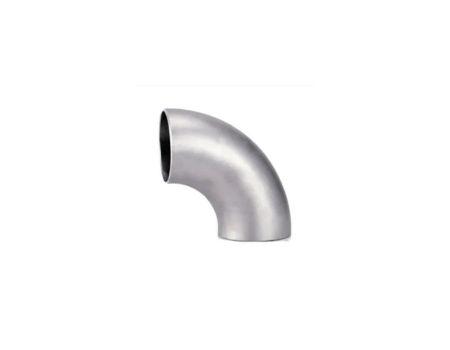

Metalica Forging Inc, an innovative name in industrial piping solutions, is recognized as a Buttweld Pipe Fittings Manufacturer. The company is known for delivering fittings that are engineered to the exact specifications and can function even in the hardest conditions. These fittings which are made from stainless steel, carbon steel, alloy steel, and duplex materials, and include the likes of the elbow, the tee, the reducer, and the cap, promise strength, precision in size, and anti-corrosive properties.Manufactured to conform to worldwide standards such as ASTM A403, ASME B16.9, and BS 1965, they assure safety and stability in places where pressure is high and temperature is elevated.

We have designed our buttweld pipe fittings to be long-lasting and dependable in industrial systems which are heavy-duty. In addition to these, Forged Fitting choices are available for situations that may require extra hardness and structural stability. Our products are accessible via a top B2B platform, and they can be personalized to meet particular project requirements such as wall thickness, size, and bend radius.They are made to be quite efficient in terms of bulk supply and performance consistency and are, therefore, supported by a solid logistics network that can ensure the delivery is made on time and that there is global operational ‍‌‍‍‌‍‌‍‍‌efficiency.

Buttweld Pipe Fittings – Standard Weight Reference Chart

The following table provides an indicative weight reference for Buttweld Pipe Fittings commonly used in industrial piping systems. These values are intended for estimation, material planning, transportation calculations, and procurement activities. Actual weights may vary depending on wall thickness, schedule, material grade, dimensional tolerances, and applicable manufacturing standards.

Buttweld Pipe Fittings

Nominal Size (NB)	Fitting Type	Outside Diameter (mm)	Approx. Weight Per Piece (Kg)	Estimated Weight (100 Nos) (Kg)
½" (15 NB)	90° Elbow	21.3	0.08	8
¾" (20 NB)	Equal Tee	26.7	0.12	12
1" (25 NB)	Concentric Reducer	33.4	0.18	18
1½" (40 NB)	45° Elbow	48.3	0.35	35
2" (50 NB)	Equal Tee	60.3	0.60	60
3" (80 NB)	90° Long Radius Elbow	88.9	1.25	125
4" (100 NB)	Concentric Reducer	114.3	2.10	210
6" (150 NB)	Equal Tee	168.3	5.40	540
8" (200 NB)	90° Long Radius Elbow	219.1	10.80	1080

Precision-Manufactured Buttweld Pipe Fittings

Buttweld pipe fittings are engineered to provide smooth flow transitions and strong welded connections in piping systems. Manufactured with high dimensional accuracy and strict quality controls, these fittings ensure excellent mechanical performance, structural integrity, and long-term reliability in demanding service conditions.

Available in a wide range of configurations including elbows, tees, reducers, caps, and stub ends, buttweld fittings are extensively used in oil & gas, petrochemical, power generation, water treatment, pharmaceutical, and process industries. Their welded construction helps reduce pressure losses, improve flow efficiency, and enhance overall system strength.

Designed to withstand high temperatures, pressure variations, and corrosive environments, buttweld pipe fittings offer dependable performance for critical applications. Custom sizes, schedules, and material grades can be supplied to meet specific project and industry requirements.
