Cross Pipe Fittings Manufacturer In India – Astm A234 Wpb, Wp11, Wp22, Wp91, Astm A403 Wp304/304l/316/316l, Astm A420 Wpl6, Astm A860 Wphy 42/52/60/65/70
| Specifications | Astm, Asme, Din, Nf, Jis, En, Ios |
|---|---|
| Size Range | 1/2"nb To 48"nb, 1/2"nb, 48"nb |
| Dimension | Asme/ansi B16.9, Asme B16.28, Mss Sp 43 |
Cross Pipe Fittings Supplier – Carbon Steel ASTM A234 WPB, Alloy Steel WP11/WP22/WP91, Stainless Steel ASTM A403 WP304/316, ASTM A420 WPL6, A860 WPHY Grades
Cape Town Impex Is The Best Cross Pipe Fittings Manufacturer In India, offering premium-quality cross fittings built for complex pipeline systems requiring multi-directional flow control. These fittings feature four-way connections, making them ideal for systems that handle the distribution of fluids in different directions. Cross Pipe Fittings are primarily used in fire protection systems, chemical industries, and high-pressure fluid transportation where balanced flow and strength are essential. Their robust design supports heavy flow rates while maintaining leak-proof performance under high stress. We also specialize in Reducing Pipe Fittings Elbows for critical applications across oil, gas, and chemical industries.
As a trusted Cross Pipe Fittings Supplier in India, we provide cross fittings in a variety of materials, such as stainless steel, carbon steel, and alloy steel, to suit different industrial demands. we ensures precision in design and dimensional accuracy, allowing for perfect integration with piping systems. These fittings offer high corrosion resistance, long-term durability, and dependable strength in challenging environments. Our cross pipe fittings are a preferred choice for engineers and project managers seeking durable components for large-scale pipeline installations.
Cross Pipe Fittings Weight Chart in KG, MM, PDF
| NPS (Inch) | DN (mm) | SCH 40 (kg) | SCH 80 (kg) |
|---|---|---|---|
| ½” | 15 | 0.20 | 0.25 |
| ¾” | 20 | 0.30 | 0.38 |
| 1” | 25 | 0.45 | 0.58 |
| 1 ¼” | 32 | 0.70 | 0.90 |
| 1 ½” | 40 | 1.00 | 1.30 |
| 2” | 50 | 1.60 | 2.00 |
| 2 ½” | 65 | 2.50 | 3.20 |
| 3” | 80 | 3.80 | 4.90 |
| 4” | 100 | 6.50 | 8.20 |
| 5” | 125 | 10.00 | 12.50 |
| 6” | 150 | 15.00 | 18.80 |
| 8” | 200 | 28.00 | 34.00 |
| 10” | 250 | 45.00 | 55.00 |
| 12” | 300 | 70.00 | 85.00 |
Cross Pipe Fittings Grade Table
| Material Type | ASTM Standard | Grade | Description / Application |
|---|---|---|---|
| Carbon Steel | ASTM A234 | WPB | Most common grade for oil, gas & power plants |
| Carbon Steel | ASTM A234 | WPC | For moderate & high temperature service |
| Low Temperature CS | ASTM A420 | WPL6 | Suitable for low-temperature applications |
| High Yield CS | ASTM A860 | WPHY 42 | High strength pipeline applications |
| High Yield CS | ASTM A860 | WPHY 52 | Oil & gas transmission lines |
| High Yield CS | ASTM A860 | WPHY 60 | High pressure pipeline systems |
| High Yield CS | ASTM A860 | WPHY 65 | Heavy duty pipeline use |
| High Yield CS | ASTM A860 | WPHY 70 | High strength, critical applications |
| Stainless Steel | ASTM A403 | WP304 | General corrosion resistance |
| Stainless Steel | ASTM A403 | WP304L | Low carbon for welding applications |
| Stainless Steel | ASTM A403 | WP316 | Superior corrosion resistance |
| Stainless Steel | ASTM A403 | WP316L | Marine & chemical environments |
| Stainless Steel | ASTM A403 | WP321 | High temperature stability |
| Stainless Steel | ASTM A403 | WP347 | Stabilized grade for high temp service |
| Alloy Steel | ASTM A234 | WP5 | High temperature service |
| Alloy Steel | ASTM A234 | WP9 | Power & refinery use |
| Alloy Steel | ASTM A234 | WP11 | High temp pressure systems |
| Alloy Steel | ASTM A234 | WP22 | Petrochemical industries |
| Alloy Steel | ASTM A234 | WP91 | Extreme temperature applications |
Cross Pipe Fittings are four-way pipe connectors designed to distribute or collect flow in industrial piping systems where multiple branches are required at the same point. Manufactured as per ASME B16.9 standards, these fittings are widely used in oil & gas, petrochemical, power plants, chemical processing, and water treatment industries. Cross Pipe Fittings are available in Carbon Steel (ASTM A234 WPB), Stainless Steel (ASTM A403 WP304/304L/316/316L), Alloy Steel (WP11, WP22, WP91), and Low Temperature Carbon Steel (A420 WPL6) grades to meet diverse pressure and temperature requirements. Known for their strength, dimensional accuracy, corrosion resistance, and long service life, they are supplied in seamless and welded construction with various schedules to suit high-pressure and heavy-duty applications.
Type of Sub-products

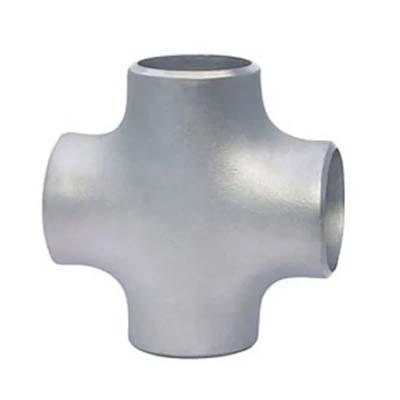

Equal Crosses Equal Crosses
All four outlets of the cross have the same nominal size.

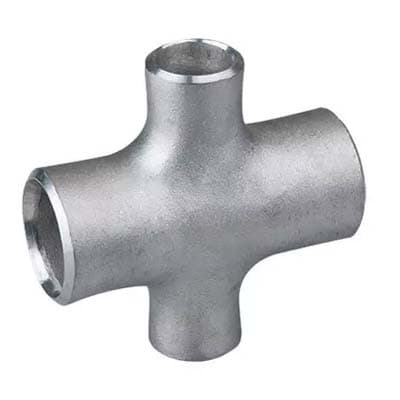

Reducing Crosses Reducing Crosses
One or more of the outlets have a smaller diameter than the other outlets.
