| Type of Forged Fitting | Elbow, Tee |
|---|---|
| Size | ½ Nb, 48nb. |
| Type | Seamless, Erw |

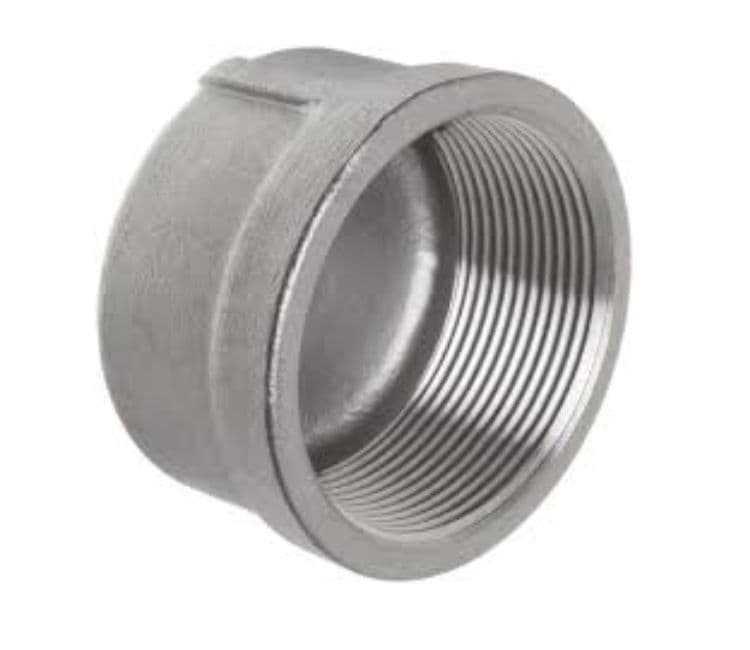

End Cap Forged Fittings
Sachiya Steel International is a reputable End Cap Forged Fittings Manufacturer, and it provides a high-quality series of forged fittings that are required to be durable and precise. Our end caps are made of high-endurance stainless steel, carbon steel, and alloy steel so as to provide strength and seal leakages as well as extended service in high-pressure and temperature conditions. Such fittings find wide applications in the oil and gas, chemical processing, and power generation industries, where there are secure terminations required in the pipeline. Having a high level of manufacturing equipment and strict quality control, we present products that are of the world standard and provide excellent performance.
Bushing Forged Fitting is one such sub-product in our line of forged fittings, which is resistant to corrosion and accurately dimensioned. It is made in a way that prevents sealing the ends of the pipes effectively and prevents the entry of contaminants into the system. It comes in a variety of grades and classes of pressure and serves many purposes in industry. The fact that we are located in the top B2B marketplace sites complements, making the access to the high-quality forged end caps easy, reliable, and at a comparatively affordable cost for businesses across the globe.
Service, Installation & Performance Specification Table – End Cap Forged Fittings
| Application Scenario | Pipe End Condition | End Cap Type | Installation Method | Typical Removal Requirement | Recommended Material | Service Temperature Range | Applicable Standard |
|---|---|---|---|---|---|---|---|
| Permanent Line Closure | Open pipe end | Solid Forged End Cap | Socket Weld | Not required | Carbon Steel A105 | –29°C to 425°C | ASME B16.11 |
| Temporary Isolation | Threaded pipe | Threaded End Cap | NPT / BSP Thread | Required for maintenance | Carbon Steel A105 | –20°C to 350°C | ASME B1.20.1 |
| High-Pressure Sealing | Open pipe | Heavy Wall End Cap | Socket Weld | Rare | Alloy Steel A182 F11 | –29°C to 540°C | ASME B16.11 |
| Corrosive Fluid Line | Open pipe | Solid End Cap | Socket Weld | Not required | SS A182 F316L | –196°C to 400°C | ASME B16.11 |
| Offshore / Marine | Open pipe | Solid Forged End Cap | Socket Weld | Rare | Duplex Steel A182 F51 | –50°C to 300°C | ASME B16.11 |
| Cryogenic Systems | Open pipe | Solid End Cap | Socket Weld | Not required | LTCS A350 LF2 | –196°C to 200°C | ASME B16.11 |
| Chemical Plant Maintenance | Threaded pipe | Hex Threaded End Cap | Threaded | Frequent | SS A182 F304 | –50°C to 300°C | ASME B1.20.1 |
| Fire Protection Line | Open pipe | Standard End Cap | Socket Weld | Rare | Carbon Steel A105 | 0°C to 120°C | MSS SP-83 |
| Instrument Line | Small bore tubing | Mini Forged End Cap | Socket Weld | Occasional | SS 316 | –40°C to 200°C | ASME B16.11 |
| Pressure Testing Line | Temporary pipe end | Threaded End Cap | Threaded | Mandatory | Carbon Steel A105 | Ambient | ASME B16.11 |
Type of Sub-products

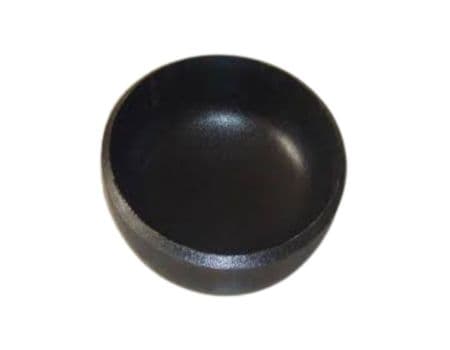

Carbon Steel Forged End Cap Carbon Steel Forged End Cap
These end caps are made from high grade carbon steel, providing exceptional strength and durability under high pressure. They are widely used in oil & gas, power generation, and heavy duty industrial piping systems due to their ability to handle tough mechanical stress and high temperatures.

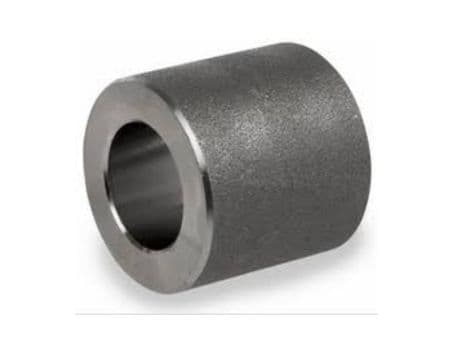

Alloy Steel Forged End Cap Alloy Steel Forged End Cap
Designed for superior performance in extreme temperature and pressure conditions, alloy steel end caps are made from materials like ASTM A182 F5, F9, F11, and F22. They are perfect for petrochemical, refining, and high temperature applications requiring enhanced hardness and wear resistance.
