Fin Tube Supplier In India For Construction, Industrial, Mechanical, And Infrastructure Applications

Name: Fin Tube Supplier In India For Construction, Industrial, Mechanical, And Infrastructure Applications
Brand: Timex Metals
Availability: InStock
Rating: 4 (1 reviews)

Specification Details
Fin Thickness	Minimum 0.8mm, Maximum 3 Mm
Fin Height	Minimum 0.25″(6.35 Mm), 1.5″(38 Mm)
Fin Density :	Minimum 46 Fins Per Meter, Maximum 287 Fins Per Meter
Material	Carbon Steel, Stainless Steel, Alloy Steel, Inconel, High Nickle & Incolloy
Tubes Diameter	30mm Od Minimum, 220mm Od Maximum

Fin Tube Supplier in India – High-Performance Heat Transfer Solutions in Various Sizes

Timex Metals is a remarkable Fin Tube Manufacturer and provides high-quality heat transfer solutions that can be utilized in various industrial applications. The design of our fin tubes is based on the maximization of the thermal efficiency with the simultaneous durability and long service. They are designed out of high-quality material, which makes them perfect for application on boilers, heat exchangers, air coolers, and other thermal equipment; hence, they are a reliable product among businesses that need reliable fin tube products.

Material & Grades Table – Fin Tube

Material (Base Tube / Fin)	Grade	Base Tube OD (mm)	Fin Height (mm)	Fin Thickness (mm)	Weight per Meter (kg/m)
Carbon Steel / Aluminium	ASTM A106 Gr. B / AA 1100	19 – 51	8–16	0.8 – 1.2	3.2 – 8.0
Stainless Steel / Aluminium	ASTM A213 TP304 / AA 1100	19 – 38	8–15	0.9 – 1.2	3.6 – 8.8
Stainless Steel / Aluminium	ASTM A213 TP316 / AA 1100	19–38	8–15	0.9 – 1.2	3.8 – 9.2
Carbon Steel / Aluminium	ASTM A106 Gr. B / AA 3003	25–51	10–18	1.0 – 1.5	4.2 – 10.0
Copper / Aluminium	ASTM B111 C12200 / AA 3003	19 – 38	8–16	0.9 – 1.2	4.0 – 9.5

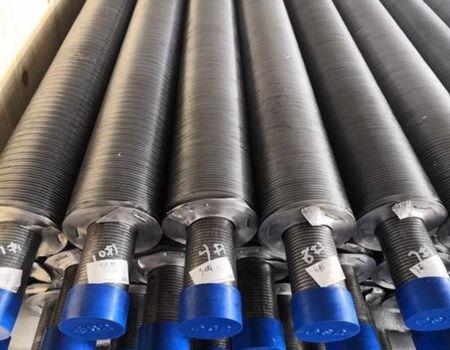

Fin Tube assemblies are designed with constant fin bonding, geometry, and constant mechanical behavior under arduous operating conditions. The choice of materials and their grade has a direct influence on the attachment strength of the fin, thermal continuity, and general accuracy of the dimensions in applications like L Footed Fin Tubes. In sourcing by a B2B Marketplace, buyers rely on a fine materials and grade table to evaluate tube dimensions, fin specification, and weight/meter. Kl Fin Tube It is designed by placing the fin material in a machined groove in the base tube to allow better fin retention and higher heat transfer efficiency. Extruded Fin Tubes take the form of the direct extrusion of the fin material out of an outer aluminium sleeve onto the base tube to form an integral and strong fin structure.

Fin Tubes: These are heat transfer elements that enhance surface area and thus enhance thermal effectiveness in heat exchangers, boilers, and air-cooled systems.
They are produced through accurate bonding processes to make sure that there is good attachment of the fin, uniform geometry, and other reliable behavior in high temperature and pressure.
Fin Tubes come in various designs based on the industrial requirements of the L-footed, embedded, and extruded designs.
The tubes are very common in power and refinery plants, petrochemical and process industries,s where high heat dissipation and long life are important.

Fin Tube Client Project Report

Product Supplied	Quantity	Cities (India)
L-Footed Fin Tubes Supplied	155 Pieces	Surat
Embedded Fin Tubes for Heat Exchangers	245 Pieces	Vadodara
Extruded Fin Tubes for Power Plant Applications	311 Pieces	Hyderabad
Carbon Steel Fin Tubes for Industrial Use	152 Pieces	Coimbatore
