| Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16 |
|---|---|
| Type | Bolt, Nut, Screw, Washer, Rivet, Threaded Rod, Studs, Coated, Nails, Custom Fasteners |
| Standard | Din, Iso, Jis, Gb, Is, Bs, Astm |
| Length | 3/8 to 8″ |
| Material | Stainless Steel, Monel, Inconel, Incoloy, Hastelloy, Nickel, Silicon Bronze, Phosphor Bronze |

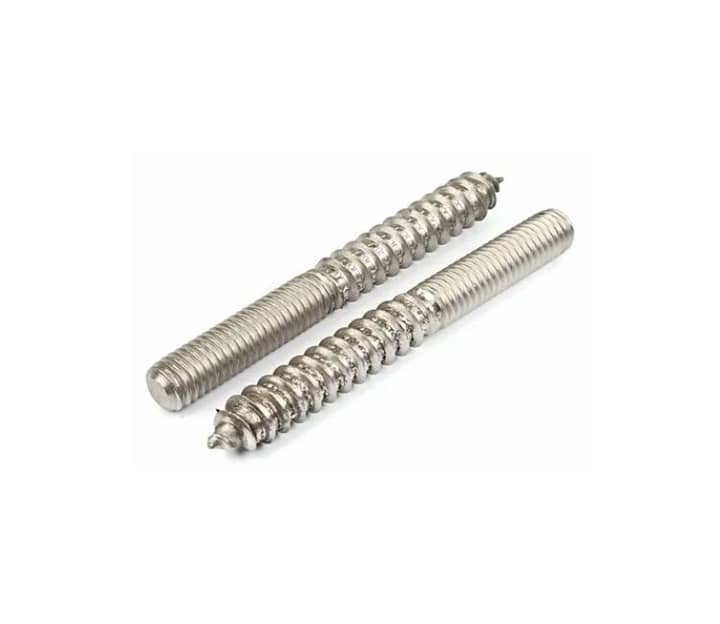

Hanger Bolts Manufacturer in India – SS 202, 304, 316, MS & High Tensile 8.8, 10.9 Grade Fasteners
Ananka Group is a Hanger Bolts Manufacturer offering high-quality fasteners made from corrosion-resistant materials such as stainless steel, carbon steel, brass, and galvanized alloys. These bolts feature a dual-threaded design, with wood screw threads on one end and machine threads on the other, making them ideal for securing components into wood while allowing attachment to metal or threaded assemblies. Manufactured to meet ASTM, BS, and IS standards, hanger bolts are commonly used in construction, solar panel mounting, furniture manufacturing, agricultural machinery, and security fencing.
We widely recognized for their strength, precision, and ease of installation, these fasteners are trusted across B2B platforms. Customization options in size, coating, and threading are available to meet diverse industrial needs. Built for long-term performance in demanding environments, hanger bolts ensure reliable fastening in large-scale projects. Efficient logistics and timely delivery further support smooth procurement and integration into various structural and mechanical systems.
Extended Hanger Bolts Grade Table
| Material Category | Grade / Specification | Standard / Equivalent | Key Features | Typical Applications |
|---|---|---|---|---|
| Low Carbon Steel | 4.6 | ISO / DIN | Basic strength, economical | Furniture, wood fixing, light duty |
| Medium Carbon Steel | 5.6 | ISO | Better load capacity | General construction, carpentry |
| Carbon Steel | 5.8 | ISO | Improved mechanical strength | Industrial & furniture fastening |
| High Tensile Steel | 8.8 | ISO | Heat treated, high strength | Structural & heavy-duty use |
| High Tensile Steel | 10.9 | ISO | Superior strength & durability | Machinery, industrial fastening |
| High Tensile Steel | 12.9 | ISO | Ultra high strength | High-load & critical applications |
| Alloy Steel | ASTM A193 B7 | ASTM | High temp & pressure resistant | Oil & gas, petrochemical |
| Alloy Steel | ASTM A320 L7 | ASTM | Low temperature resistant | Cryogenic & offshore |
| Stainless Steel | SS 201 | ASTM A240 | Moderate corrosion resistance | Indoor furniture |
| Stainless Steel | SS 202 | ASTM | Cost-effective stainless | General applications |
| Stainless Steel | SS 304 | ASTM A193 B8 | Excellent corrosion resistance | Marine, chemical, outdoor |
| Stainless Steel | SS 304L | ASTM | Low carbon, weldable | Food & pharma industries |
| Stainless Steel | SS 316 | ASTM A193 B8M | Superior corrosion resistance | Marine & chemical |
| Stainless Steel | SS 316L | ASTM | Low carbon, high corrosion | Chemical & pharmaceutical |
| Duplex Stainless Steel | 2205 | ASTM | High strength + corrosion | Offshore, marine |
| Super Duplex | 2507 | ASTM | Extreme corrosion resistance | Harsh environments |
| Brass | IS / ASTM | – | Non-corrosive, decorative | Furniture, electrical |
| Aluminium | 6061 / 7075 | ASTM | Lightweight, corrosion resistant | Aerospace, light structures |
Hanger bolts are available in a wide range of material grades to meet different strength, corrosion resistance, and application requirements across industries. Common options include low and medium carbon steel grades such as 4.6, 5.6, and 5.8 for general-purpose and furniture applications, as well as high tensile grades like 8.8, 10.9, and 12.9 for heavy-duty and structural fastening. For environments requiring corrosion resistance, stainless steel grades including SS 201, SS 202, SS 304, SS 304L, SS 316, and SS 316L are widely used in marine, chemical, food processing, and outdoor installations. Additionally, alloy steel grades such as ASTM A193 B7 and A320 L7 are suitable for high-temperature and high-pressure applications, while duplex and super duplex stainless steels provide enhanced strength and superior resistance in aggressive conditions. This wide grade availability ensures hanger bolts can be customized for light-duty furniture assembly to demanding industrial and offshore projects.
Extended Hanger Bolts Weight in KG, MM, PDF
| Size (MM) | Length (MM) | Weight per 1000 pcs (Kg) | Weight per Piece (Gram) |
|---|---|---|---|
| M5 | 30 | 3.2 | 3.2 |
| M5 | 40 | 4.3 | 4.3 |
| M6 | 30 | 5.2 | 5.2 |
| M6 | 40 | 6.5 | 6.5 |
| M6 | 70 | 11.0 | 11.0 |
| M8 | 40 | 11.5 | 11.5 |
| M8 | 80 | 21.0 | 21.0 |
| M8 | 100 | 26.5 | 26.5 |
| M10 | 50 | 24.0 | 24.0 |
| M10 | 90 | 41.0 | 41.0 |
| M10 | 120 | 55.0 | 55.0 |
| M12 | 50 | 42.0 | 42.0 |
| M12 | 150 | 110.0 | 110.0 |
| M14 | 75 | 78.0 | 78.0 |
| M14 | 100 | 102.0 | 102.0 |
| M16 | 75 | 125.0 | 125.0 |
| M16 | 200 | 305.0 | 305.0 |
| M18 | 150 | 365.0 | 365.0 |
| M20 | 100 | 285.0 | 285.0 |
| M22 | 150 | 540.0 | 540.0 |
| M24 | 200 | 900.0 | 900.0 |
The extended weight chart for hanger bolts provides detailed information on the approximate weight based on different diameters and lengths, helping buyers, engineers, and suppliers plan procurement, packaging, and transportation more accurately. As hanger bolts are available in a wide size range from smaller diameters like M5 and M6 to heavy-duty sizes such as M20, M22, and M24, their weight can vary significantly depending on the dimensions, material grade, and thread configuration. This chart is especially useful for bulk orders, export shipments, inventory control, and project cost estimation, as it allows for better logistics and material planning. Although the values are generally calculated based on carbon steel, slight variations may occur for stainless steel or alloy grades due to differences in density and coating thickness, ensuring users can select the most suitable fastening solution for furniture, construction, and industrial applications.
Type of Sub-products
Carbon Steel Hanger Bolts Carbon Steel Hanger Bolts
Known for high tensile strength, carbon steel hanger bolts are used in heavy duty wooden assemblies, machinery bases, and structural frame anchoring where load resistance is critical.
Stainless Steel Hanger Bolts Stainless Steel Hanger Bolts
Resistant to corrosion and ideal for outdoor or moisture exposed applications, these bolts are perfect for solar mounting structures, marine fittings, and exterior woodwork.
