Washers Manufacturer In India With Reliable Industrial Ss 304, 316 And Duplex Grades
| Size | M4 to M60 |
|---|---|
| Type | Bolt, Nut, Screw, Washer, Rivet, Threaded Rod, Studs, Coated, Nails, Custom Fasteners |
| Standard | Din, Iso, Jis, Gb, Is, Bs, Astm |
| Length | 3000 mm |
| Material | Stainless Steel, Monel, Inconel, Incoloy, Hastelloy, Nickel, Silicon Bronze, Phosphor Bronze |
Washers Supplier in India for Industrial Grade Marine and Oil Industries

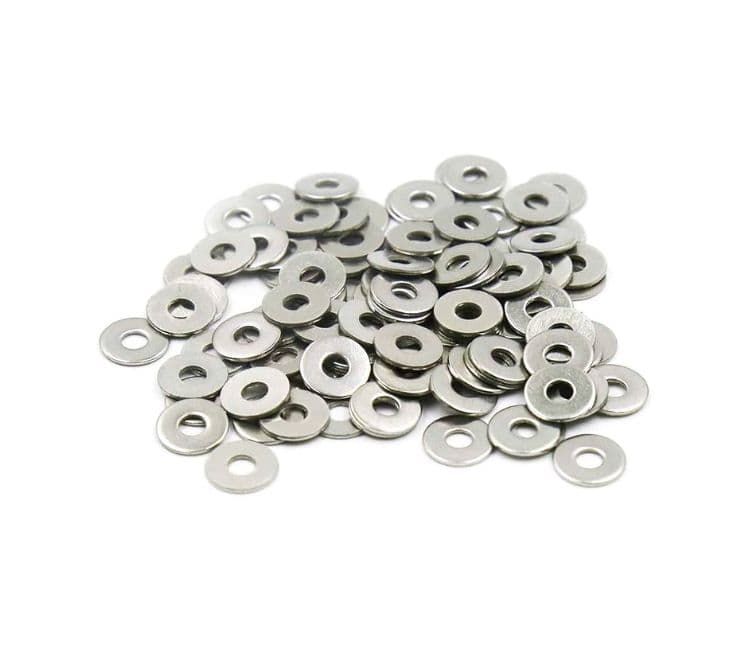

Yuvi Metal Corporation is one of the best manufacturers and suppliers of washers as they are known for their washers manufacturer services. They manufacture different types of washers that include stainless steel washers, carbon steel washers, alloy steel washers, duplex steel washers and many more. The products that are manufactured by Yuvi Metal Corporation adhere to international quality standards. These washers are extensively used in different industries due to the corrosion resistance and dimensional accuracy that they offer. Industries like construction, oil & gas, petrochemical, marine, automotive and heavy engineering use these washers. These washers have been produced using advanced technologies and techniques that allow them to perform consistently under high pressure and temperature conditions. Yuvi Metal Corporation serves the B2B market around the world with their top-notch products and timely solutions.
Spring Washers are one of the most demanded sub-products, specially designed to prevent loosening caused by vibration and dynamic loads in industrial assemblies. These washers offer improved locking capabilities and contribute to maintaining a secure hold on the machinery, structural, and automotive systems. They come in various sizes, thicknesses, and quality of material and have great flexibility, load distribution, and wear resistance. The washers are made to international standards and are appropriate for commercial and industrial use with secure fastening and high strength. These are smooth in finish, precise in dimensions, and offer good reliability in performance for different engineering projects.
Material & Grades Table – Washers
Material Grade / Standard Size / Thickness / Diameter Extra Specification Weight (kg/1000 pcs) Stainless Steel SS 304 / ASTM F844 M4–M24, 0.8–4.0 mm thick General-purpose corrosion-resistant washer Approx. 1–220 Stainless Steel SS 316 / ASTM F844 M4–M24, 0.8–4.0 mm thick Marine and chemical applications Approx. 1–220 Stainless Steel SS 316L M4–M24, 0.8–4.0 mm thick Low-carbon corrosion-resistant washer Approx. 1–220 Carbon Steel ASTM F844 M6–M30, 1.0–5.0 mm thick General industrial applications Approx. 3–400 Carbon Steel ASTM F436 1/2–1-1/2 in, 2.0–6.0 mm thick Hardened structural washer Approx. 30–700 Alloy Steel ASTM F436M M12–M36, 2.0–6.0 mm thick High-strength structural applications Approx. 20–700 Brass ASTM F467 M4–M20, 0.8–3.0 mm thick Electrical and decorative applications Approx. 1–250 Aluminium 6061-T6 / ASTM B209 M4–M24, 0.8–4.0 mm thick Lightweight fastening applications Approx. 0.5–120
| Material | Grade / Standard | Size / Thickness / Diameter | Extra Specification | Weight (kg/1000 pcs) |
|---|---|---|---|---|
| Stainless Steel | SS 304 / ASTM F844 | M4–M24, 0.8–4.0 mm thick | General-purpose corrosion-resistant washer | Approx. 1–220 |
| Stainless Steel | SS 316 / ASTM F844 | M4–M24, 0.8–4.0 mm thick | Marine and chemical applications | Approx. 1–220 |
| Stainless Steel | SS 316L | M4–M24, 0.8–4.0 mm thick | Low-carbon corrosion-resistant washer | Approx. 1–220 |
| Carbon Steel | ASTM F844 | M6–M30, 1.0–5.0 mm thick | General industrial applications | Approx. 3–400 |
| Carbon Steel | ASTM F436 | 1/2–1-1/2 in, 2.0–6.0 mm thick | Hardened structural washer | Approx. 30–700 |
| Alloy Steel | ASTM F436M | M12–M36, 2.0–6.0 mm thick | High-strength structural applications | Approx. 20–700 |
| Brass | ASTM F467 | M4–M20, 0.8–3.0 mm thick | Electrical and decorative applications | Approx. 1–250 |
| Aluminium | 6061-T6 / ASTM B209 | M4–M24, 0.8–4.0 mm thick | Lightweight fastening applications | Approx. 0.5–120 |
Key Features & Advantages
-
Distributes fastening loads over a larger surface area
-
Helps protect mating surfaces from damage
-

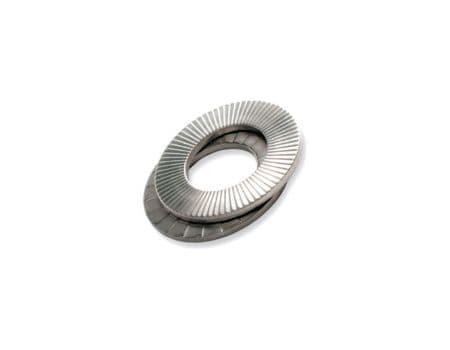

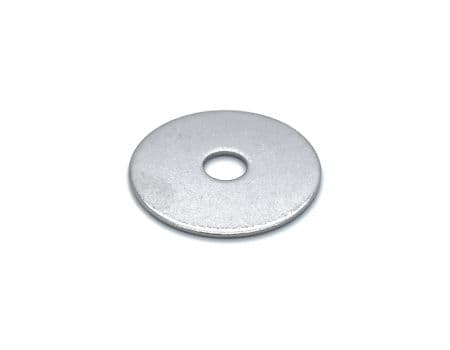

Available in flat, spring, lock, fender, and structural designs
-
Good dimensional accuracy and consistent thickness
-
Stainless steel options provide excellent corrosion resistance
-
Hardened grades offer improved strength for structural applications
-
Available in customized sizes, thicknesses, materials, and finishes
- Distributes fastening loads over a larger surface area
- Helps protect mating surfaces from damage
- Available in flat, spring, lock, fender, and structural designs
- Good dimensional accuracy and consistent thickness
- Stainless steel options provide excellent corrosion resistance
- Hardened grades offer improved strength for structural applications
- Available in customized sizes, thicknesses, materials, and finishes
Chemical Composition
Representative Grade: Stainless Steel 304
Element Percentage (%) Chromium (Cr) 18.0–20.0 Nickel (Ni) 8.0–10.5 Manganese (Mn) 2.00 max. Carbon (C) 0.080 max. Silicon (Si) 1.00 max. Iron (Fe) Balance
Representative Grade: Stainless Steel 304
| Element | Percentage (%) |
|---|---|
| Chromium (Cr) | 18.0–20.0 |
| Nickel (Ni) | 8.0–10.5 |
| Manganese (Mn) | 2.00 max. |
| Carbon (C) | 0.080 max. |
| Silicon (Si) | 1.00 max. |
| Iron (Fe) | Balance |
Mechanical Properties
Property Value Tensile Strength 515 MPa min. Yield Strength 205 MPa min. Elongation 40% min. Hardness 92 HRB max.
| Property | Value |
|---|---|
| Tensile Strength | 515 MPa min. |
| Yield Strength | 205 MPa min. |
| Elongation | 40% min. |
| Hardness | 92 HRB max. |
Equivalent Grade
Standard Grade ASTM 304 UNS S30400 EN 1.4301 DIN X5CrNi18-10
| Standard | Grade |
|---|---|
| ASTM | 304 |
| UNS | S30400 |
| EN | 1.4301 |
| DIN | X5CrNi18-10 |
Type of Sub-products
Frequently Asked Questions
Are Washers available in corrosion resistant grades?
Why are Washers important in fastening systems?
What types of Washers are available?
