Industrial Metal Jacketed Gaskets Manufacturer – Corrosion Resistant Sealing Gaskets

Name: Industrial Metal Jacketed Gaskets Manufacturer – Corrosion Resistant Sealing Gaskets
Brand: Gascoinc
Availability: InStock
Rating: 5 (13 reviews)

Specification Details
Sizes	1/2 Nb, 24 Nb
Gasket Standards	Asme B16.20 Gaskets, Asme B16.21 Gaskets
Outside Diameter	Nps 1⁄2 Through Nps 8 Is ±0.8 Mm; For Nps 10 Through Nps 24, +1.5 Mm, −0.8 Mm.
Inside Diameter	Nps 1⁄2 Through Nps 8 Is ±0.4 Mm; For Nps 10 Through Nps 24, ±0.8 Mm.

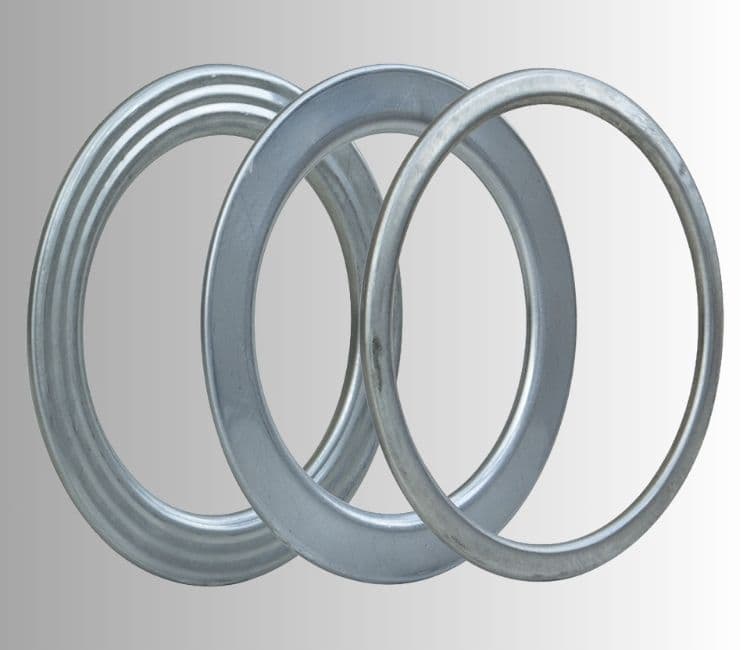

Metal Jacketed Gaskets

Gasco Inc. is a trusted Metal Jacketed Gaskets manufacturer. We have been manufacturing high-quality gaskets that are widely used for sealing in extremely demanding applications in the extreme industry. Our gaskets are specifically designed for use in high-pressure, high-temperature, and harsh chemical environments, making them ideal for use in pipelines, heat exchangers, refineries, and petrochemical plants. Our gaskets are very durable, do not leak, and thus last very long with very minimal maintenance. We are also the manufacturers of Graphoil Ring Gaskets, which are known for their very high chemical resistance and flexibility, making them suitable for specialized sealing work in high-pressure systems.

They come in different sizes, materials, and pressure ratings, and they are sold via a reliable B2B industry channel that ensures a steady level of quality, delivery time, and international standards. Products are evaluated on the level of strict quality and offer durability, the ability to be dimensionally accurate, and high sealing efficiency. The metal-jacketed gaskets and Graphoil ring gaskets are designed with high performance and reliability to provide industries with an efficient and long-lasting solution to safe operation without leaks in hard-to-contain industrial conditions.

Metal Jacketed Gaskets – Standard Size & Specification Guide

The table below provides a general reference for Metal Jacketed Gaskets commonly used in industrial sealing applications. These gaskets are manufactured to meet high-pressure and high-temperature service requirements across industries such as petrochemical, oil & gas, power generation, and processing plants. Dimensions and weights may vary depending on filler material, metal grade, and operating conditions.

Metal Jacketed Gaskets

Nominal Size (NB)	Outer Diameter (Mm)	Gasket Thickness (Mm)	Approx. Weight Per Piece (Kg)	Estimated Weight (100 Nos) (Kg)
½” (15 NB)	95	3.2	0.3	30
¾” (20 NB)	105	3.2	0.4	40
1” (25 NB)	115	3.5	0.5	50
1½” (40 NB)	135	4.0	0.8	80
2” (50 NB)	160	4.5	1.1	110
3” (80 NB)	200	4.5	1.9	190
4” (100 NB)	235	5.0	2.8	280
6” (150 NB)	285	5.5	4.5	450
8” (200 NB)	350	6.0	6.8	680

Metal Jacketed gaskets are designed for sealing with reliability in challenging industrial applications. These gaskets are constructed from premium-quality metallic jackets and soft filler materials for superior pressure, temperature, and chemical resistance. They provide good sealing in heat exchangers, boilers, valves, and pipe flange connections due to their durable construction. Consistent performance, lower leakage potential, and long service life in critical operations are achieved through precision manufacturing and stringent quality checks.

Metal Jacketed Gaskets – Industrial Supply Project Summary

This work was characterized by the production and delivery of high quality Metal Jacketed Gaskets for sealing in high-pressure/high-temperature industrial systems. The gaskets were made with strong metallic jackets and soft materials as fillers, providing excellent sealing ability in challenging applications. All products have been manufactured according to the international industrial standards and quality requirements. Dimensional inspection, material testing, surface inspection, and sealing integrity test were conducted during the production process to ensure comprehensive inspection. The gaskets supplied were designed to offer the best possible resistance to thermal stress, pressure changes, and corrosive media. The project was successfully completed within the agreed time frame and was able to maintain the client's plant activity and maintenance.

Product Supplied	Quantity	Delivery Location (India)
Metal Jacketed Heat Exchanger Gaskets	150 Pieces	Mumbai
Corrugated Metal Jacketed Gaskets	220 Pieces	Ahmedabad
Stainless Steel Jacketed Ring Gaskets	190 Pieces	Chennai
Custom Metal Jacketed Sealing Gaskets	170 Pieces	Pune
