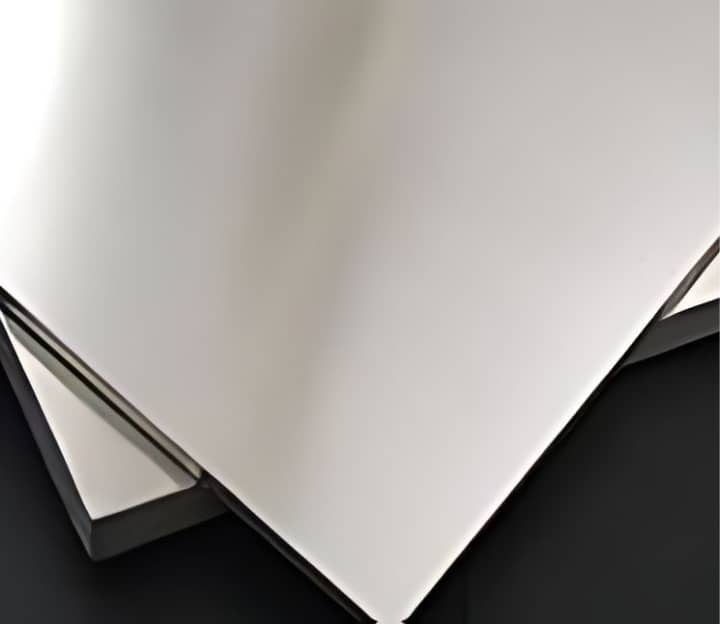

Monel K500 Sheet Manufacturer In India As Per Astm B622 Standard
| Size range | 1000 Mm X 2000mm, 1220mm X 2440mm, 4' X 8', 1250mm X 2500mm, 1500mm X 3000mm To 6000mm, 2000mm X 4000mm To 6000mm |
|---|---|
| Range | 5mm, 150mm |
| Thickness | 4.0mm, 100mm |
| Specialize | Shim Sheet, Perforated Sheet |
Monel K500 Sheet Manufacturer in India Supplying ASTM B164 / ASME SB164 Standard Sheets for Marine, Petrochemical & Chemical Industries
United Stainless LLP is a major Monel K500 Sheet Manufacturer In India, a manufacturer of nickel-copper alloy sheet supplemented with aluminum and titanium to increase strength and corrosion resistance. K500 Monel Sheet is widely employed in maritime engineering, aerospace, and chemical processing industries as well as in high-performance pump and valve components in which both mechanical and resistance to seawater corrosion are vital.
These sheets are supplied with different thicknesses and surface finishes, in order to satisfy the unique project needs through a stable B2B portal. Its range also covers Monel Sheets used in a general corrosion-resistant application and Monel 400 Sheet used in seawater and chemical exposure environment.
Monel K500 Sheet has an outstanding ability to withstand stress corrosion cracking and pitting whilst staying hard and strong. Being a reliable Monel K500 Sheet Supplier In India, these sheets find huge applications in seawater equipment, desalination plants, chemical vessels, and offshore structures where the performance and durability are very important. We offer Nickel Alloy Sheets ideal for chemical processing, aerospace, power generation, and marine environments.
Material & Grades of Monel K500 Sheet
Monel K500 Sheet is produced under stringent quality controls to ensure uniform composition, high mechanical properties, and excellent corrosion resistance for demanding industrial and marine applications.
| Material | Grade / Standard | UNS No. | Thickness (mm) | Width (mm) | Typical Applications |
|---|---|---|---|---|---|
| Monel Alloy | K500 | N05500 | 0.5 – 50.0 | 1000 – 2000 | Marine & offshore structures |
| Monel Alloy | 400 | N04400 | 0.5 – 50.0 | 1000 – 2000 | Seawater equipment |
| Monel Alloy | 405 | N04405 | 0.8 – 30.0 | 1000 – 1500 | Chemical processing units |
| Monel Alloy | 450 | N04450 | 1.0 – 25.0 | 1000 – 1500 | Aerospace & high-strength components |
Key Features & Advantages
- Superior strength and hardness for high-performance applications
- Excellent resistance to seawater, acids, and chemical corrosion
- Outstanding resistance to pitting and stress corrosion cracking
- Good weldability and formability
- Long service life in marine and industrial environments
- Supplied in standard and custom sizes
Monel K500 Sheet Chemical Composition
Monel K500 Sheets are corrosion resistant due to the presence of carbon, silicon, sulfur, and other elements.
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S |
|---|---|---|---|---|---|---|---|---|
| Monel K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.010 max |
Monel K500 Sheet Mechanical Properties
Mechanical Properties of Monel K500 Sheets are listed below to assist you understand the product's durability.
| Grade | Density | Melting Point | Tensile Strength Psi, Mpa | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | 1,60,000, 1100 | 790 Mpa | 20 % |
Monel K500 Sheet Equivalent Grade
Our dedication to quality guarantees that every Monel Sheet meet the highest standards, establishing us as a reliable Monel K500 Sheet Manufacturer in India.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Monel K500 Sheet Size Chart
Monel K500 Sheets may be customized in any thickness to meet the needs of the client; the table below shows the standard thickness of Monel K500 Sheet.
| Width (mm) | Length (mm) |
|---|---|
| 914 & 1219 | 1828 & 2438 |
| 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 1219 | 2438 |
| 1219 & 1500 | 2438, 3000 & 3658 |
| 1500 & 2000 | 3000 & 6000 |
| 914 & 1219 | 1828 & 2438 |
| 1250 | 2500 |
| 1250 & 1500 | 2500, 3000 & 6000 |
Type of Sub-products
Frequently Asked Questions
Why is Monel K500 often the choice for oil and gas well components?
Can Monel K500 Sheet be used in high-temperature industrial operations?
