| Size range | 1000 Mm X 2000mm, 4' X 8', 1220mm X 2440mm, 1250mm X 2500mm, 1500mm X 3000mm To 6000mm, 2000mm X 4000mm To 6000mm |
|---|---|
| Range | 5mm, 150mm |
| Thickness | 4.0mm, 100mm |
| Specialize | Shim Sheet, Perforated Sheet, B. Q. Profile |
| Monel Sheet | We offer the best quality Monel Sheet Manufacturer In India. |
|---|
Monel Sheets Manufacturer in India Supplying Marine-Grade Sheets for Severe Corrosion Environments
United Stainless LLP is a Monel Sheets Manufacturer in India with the vision of producing high quality nickel-copper alloy sheets which are designed with enhanced resistance to corrosion, particularly in marine and chemical environment. Monel sheets have great strength, durability and resistance to seawater, acids, and alkalis; thus, it is very popular in shipbuilding, offshore platforms, heat exchangers, and chemical processing equipment.
The Monel sheets supplied by it are in various grades, thicknesses, and available surface finishes to suit the demanding industrial requirements supplied by a reliable B2B marketplace. Monel 400 sheets find large applications in pumps, valves and marine fittings where toughness and corrosion resistance is needed to have long life.
When greater mechanical strength and wear resistance are needed, Monel K500 Sheet is usually chosen, especially where used in marine shafts, fasteners and heavy-duty items. These sheets do not lose their performance in the presence of extreme pressure and corrosive environment, and they can be applicable in critical environment. The product range guarantees the consistency of quality, traceability and reliability in the supply of industrial buyers who trust Monel Sheets as a reliable Supplier In India.
Material & Grades of Monel Sheets
Its Monel sheets are produced in various grades, to meet special mechanical and corrosion resistance needs. The correct grade selection can be used to ensure the peak performance, safety, and service life in harsh conditions.
| Material | Grade / Alloy | Standard | Thickness (mm) | Width (mm) | Typical Applications |
|---|---|---|---|---|---|
| Monel | Monel 400 | ASTM B127 | 0.8 – 20.0 | 1000 – 1500 | Marine, chemical equipment |
| Monel | Monel K500 | ASTM B865 | 0.8 – 12.0 | 1000 – 1500 | Shafts, fasteners |
| Monel | Monel 404 | ASTM B127 | 0.5 – 6.0 | 1000 – 1500 | Electronics |
| Monel | Monel R405 | ASTM B127 | 0.8 – 10.0 | 1000 – 1500 | Machined components |
| Monel | Monel 450 | ASTM B127 | 0.8 – 8.0 | 1000 – 1500 | Marine hardware |
Key Product Features & Advantages
- Excellent seawater and chemical corrosive resistance.
- The strengths and structural stability are high.
- Appropriate to marine, offshore and chemical markets.
- Good welding and fabricating properties.
- Extensive use in severe operating conditions.
- Comes in standard sizes and custom-cut sizes.
Monel Sheet Chemical Composition
Monel Sheets are corrosion resistant due to the presence of carbon, silicon, sulfur, and other elements.
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S |
|---|---|---|---|---|---|---|---|---|
| Monel K400 | 63.0 min | 1.0 - 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 - 34.0 | 0.50 max | 0.02 max |
| Monel K500 | 63.0 min | 05 - 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 - 33.0 | 2.3 - 3.15 | 0.010 max |
Monel K400 Sheet Mechanical Properties
Mechanical Properties of Monel Sheets are listed below to assist you understand the product's durability.
| Grade | Density | Melting Point | Tensile Strength Psi, Mpa | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Monel K400 | 8.8 g/cm3 | 1350 °C (2460 °F) | 80,000, 550 | 240 Mpa | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | 1,60,000, 1100 | 790 Mpa | 20 % |
Monel Sheet Equivalent Grade
Our dedication to quality guarantees that every Monel Sheet meet the highest standards, establishing us as a reliable Monel Sheet Manufacturer in India.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel K400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
| Monel K500 | 2.4375 | N05500 | - | - | - | - | - |
Type of Sub-products

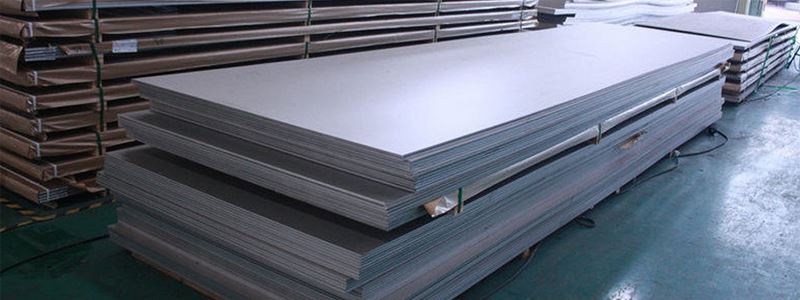

Monel K400 Sheet Monel K400 Sheet
We offer the best quality Monel K400 Sheet Manufacturer In India.
Monel K500 Monel K500
We offer the best quality Monel K500 Sheet Manufacturer In India.
