| Standard | Astm A580, A493 / Asme Sa580, Ams 5514, Sa313, Sa555, Sa493, A313, A555 |
|---|---|
| Length | 0.125", 72 |
| Diameter | 10 Microns 1.0 Mm, 0.0004" To 0.040" |
| Technique | Cold Rolled, Hot Rolled |

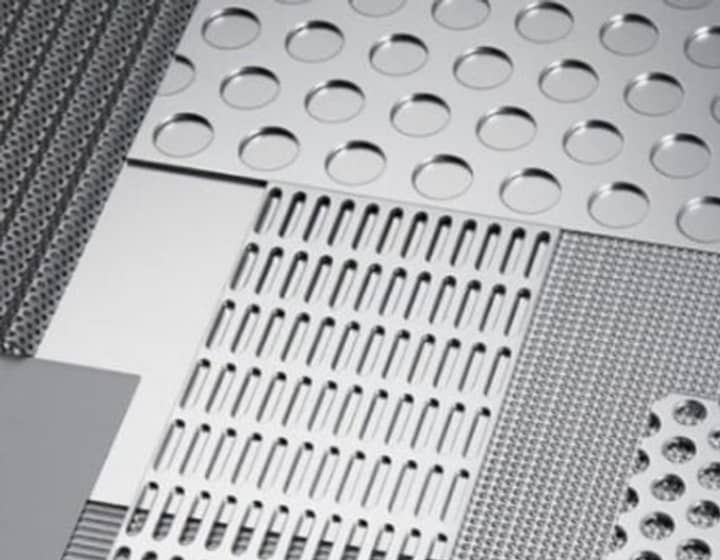

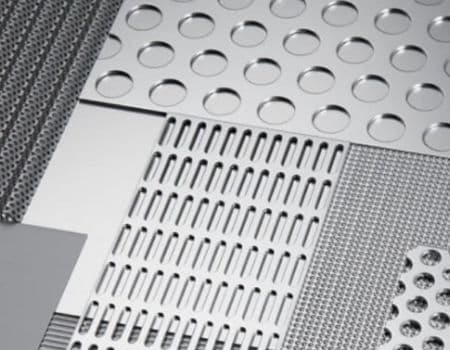

Perforated Mesh
Bhansali Wire Mesh is a reliable Perforated Mesh Manufacturer that specializes in the production of quality metal mesh products that can be used in various types of industries like construction, filtration, and architectural design. These perforated meshes are made in different shapes, sizes, and thicknesses of holes that can be specified in terms of different applications using the top-grade material, such as stainless steel, aluminum, and galvanized iron. All the products are machined with high precision through advanced punching technology to provide consistency, strength, and durability of the products so that they can be used in the ventilating panels, protective guards, and also in industrial screening systems.
With a focus on B2B growth, the company is also providing special sub-products, Stainless Steel Wire Mesh, where perforations are uniform in order to provide the best airflow, filtration, and aesthetics. These sheets are very resistant to corrosion and wear, thus suitable for indoor and outdoor usage in various industries such as food processing, chemical, and automotive. These perforated mesh solutions are meant to provide performance that will be reliable and can be customized to meet the cross-business requirements of customers that are expected to last long.
Perforated Mesh – Weight Chart (Standard Sizes)
| Hole Diameter (mm) | Pitch (mm) | Sheet Thickness (mm) | Panel Width (mm) | Weight per Meter (kg/m) | Total Weight (kg) |
|---|---|---|---|---|---|
| 4 | 6 | 1.0 | 1000 | 7.9 | As per length |
| 6 | 9 | 1.2 | 1000 | 10.6 | As per length |
| 8 | 12 | 1.6 | 1000 | 15.8 | As per length |
| 10 | 15 | 2.0 | 1000 | 21.4 | As per length |
| 12 | 18 | 2.5 | 1000 | 29.6 | As per length |
| 16 | 24 | 3.0 | 1000 | 38.9 | As per length |
Perforated Mesh has wide applications in filtration, ventilation, screening, acoustic panels and safety guards in the industrial and architectural fields. The weight chart plays an essential role in estimating the dead load, the choice of support structure as well as transportation and installation planning. Weight information helps in achieving design specifications and also enhances the reliability of the system.
Type of Sub-products

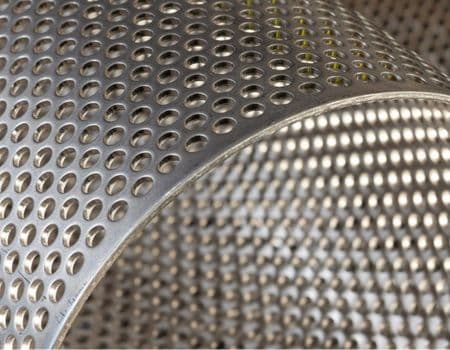

Stainless Steel Perforated Mesh Stainless Steel Perforated Mesh
Offers corrosion resistance and high strength for demanding filtration and screen applications.

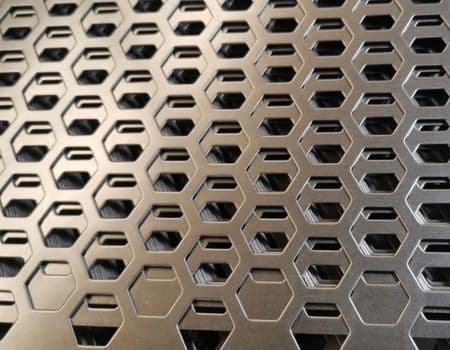

Aluminium Perforated Mesh Aluminium Perforated Mesh
Lightweight and rust-resistant, suitable for ventilation, facades, and acoustic panels.
