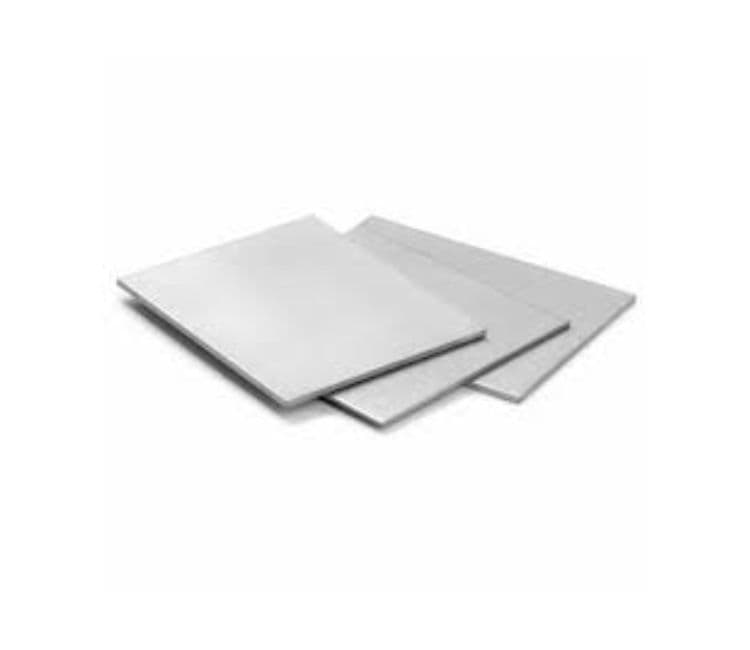

Stainless Steel 409m Sheet Manufacturer In India As Per Astm A240 And Is Standards

Name: Stainless Steel 409m Sheet Manufacturer In India As Per Astm A240 And Is Standards
Brand: United Stainless Llp
Availability: InStock
Rating: 4 (16 reviews)

Specification Details
Size range	1000 Mm X 2000mm, 1220mm X 2440mm, 4' X 8', 1250mm X 2500mm, 1500mm X 3000mm To 6000mm, 2000mm X 4000mm To 6000mm
Range	5mm, 150mm
Thickness	4.0mm, 100mm

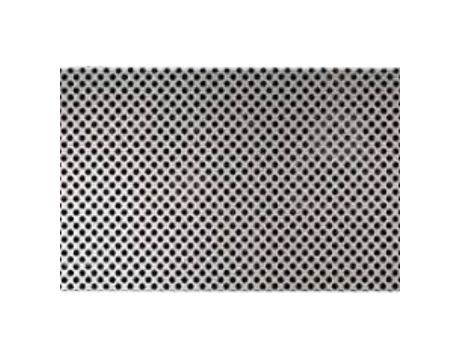

Specialize	Shim Sheet, Perforated Sheet

Stainless Steel 409M Sheets Manufacturer in India Supplying ASTM A240 / EN Standard 409M Sheets for Industrial Applications

United Stainless LLP is one of the major Stainless Steel 409m Sheet Manufacturers in India, which provides ferritic stainless steel sheets which have high resistance to oxidation, good weldability, and cost effective performance. Stainless Steel 409m is common in the auto exhaust systems, heat exchangers, mufflers and structural parts where there is medium corrosion resistance and high temperatures. It has a balanced chromium composition therefore remaining durable yet fabrication-easy.

Stainless Steel 409m Sheet is offered in a variety of thicknesses and finishes through a reliable B2B market to ensure that it meets the needs of various industries. Manufacturers also utilise Stainless Steel Sheets during fabrication processes when it is necessary to do wider project work, whilst Stainless Steel X2CRNi12 Sheets are favoured in work demanding greater strength, and Stainless Steel 409Ms Sheets are frequently utilised in the automotive and transport industries.

Stainless Steel 409m Sheet provides high stability of mechanical properties, formability, and scaling resistance at high temperature. It can be used in welding and forming of processes with mass production industries. Being a trusted Stainless Steel 409m Sheet Supplier In India, the grade serves the automotive, engineering and infrastructure development projects that require economical and high performance stainless steel.

Material & Grades of Stainless Steel 409m Sheet

The Stainless Steel 409m Sheet comes in a variety of standards and finishes, and it is also used in both the functional and structural application. Proper choice of the grade guarantees high performance, durability and economical factors.

Material	Grade / Standard	Finish Options	Thickness (mm)	Width (mm)	Typical Applications
Stainless Steel	409m	2B / BA / No.4	0.8 – 6.0	1000 – 2000	Exhaust systems
Stainless Steel	X2CRNi12	2B / BA	0.8 – 8.0	1000 – 2000	Structural parts
Stainless Steel	409Ms	2B / No.4	1.0 – 8.0	1000 – 2000	Automotive components
Stainless Steel	3CR12	2B / HR	1.2 – 10.0	1250 – 2500	Industrial fabrication
Stainless Steel	410	2B / BA	0.8 – 6.0	1000 – 2000	Heat-resistant parts

Key Features & Benefits

Good oxidation and heat resistance
Cost-effective alternative to austenitic grades
Easy to weld and fabricate
Suitable for automotive and industrial applications
Available in standard and custom sizes
Reliable performance in high-temperature environments

Stainless Steel 409M Sheets Chemical Composition

Stainless Steel Sheet are corrosion resistant due to the presence of carbon, silicon, sulfur, and other elements.

Stainless 409M Steel Sheet Chemical Composition
Grade	C (max)	Si (max)	Mn	Cr	Ni	P(max)	S (max)	N (max)	Other Elements
SS 409M	0.03	1.00	0.5-1.5	10.80-12.50	1.5 max	0.040	0.030	0.03	–

Stainless Steel 409M Sheets Mechanical Properties

Mechanical Properties of Stainless Steel Sheet are listed below to assist you understand the product's durability.

Stainless Steel 409M Sheets Mechanical Properties
U.T.S. N/mm² Min	0.2% Proof Stress / YS N/mm² Min	% El (GL = 50 mm) Min	Hardness HR_B max	Cold Bend
450	275	22	92	180° 1 t

Stainless 409M Steel Sheet Equivalent Grade

Our dedication to quality guarantees that every SS Sheet meet the highest standards, establishing us as a reliable Stainless Steel 409M Sheets Manufacturer in India.

Stainless Steel 409M Sheets Equivalent Grade
STANDARD	BS
SS 409M	HYFAB 3/12

Stainless Steel 409M Sheets Weight & Thickness Chart

Stainless Steel Sheet may be customized in any thickness to meet the needs of the client; the table below shows the standard thickness of Stainless Steel Sheet.

Stainless 409M Steel Sheet Thickness
Thickness in. (mm)	Width
36 (914.4) in. (mm)	48 (1,219) in. (mm)	-
0.017–0.030 (0.43–0.76)	0.0015 (0.038)	0.002 (0.051)
0.031–0.041 (0.79–1.04)	0.002 (0.051)	0.003 (0.076)
0.042–0.059 (1.1–1.5)	0.003 (0.076)	0.004 (0.10)
0.060–0.073 (1.5–1.9)	0.003 (0.076)	0.0045 (0.11)
0.074–0.084 (1.9–2.1)	0.004 (0.10)	0.0055 (0.14)
0.085–0.099 (2.2–2.5)	0.004 (0.10)	0.006 (0.15)
0.100–0.115 (2.5–2.9)	0.005 (0.13)	0.007 (0.18)
0.116–0.131 (2.9–3.3)	0.005 (0.13)	0.0075 (0.19)
0.132–0.146 (3.4–3.7)	0.006 (0.15)	0.009 (0.23)
0.147–0.187 (3.7–4.7)	0.007 (0.18)	0.0105 (0.2)
