| Size range | 4 2, 1/2" 36" |
|---|---|
| Pressure Rating | Ansi Class 150, 300, 600, 900, 1500, 2500 / Pn 10, Pn 16, Pn 25, Pn 40, Pn 63, Pn 100 |
| Trim Material | Stainless Steel, Hastelloy, Inconel |

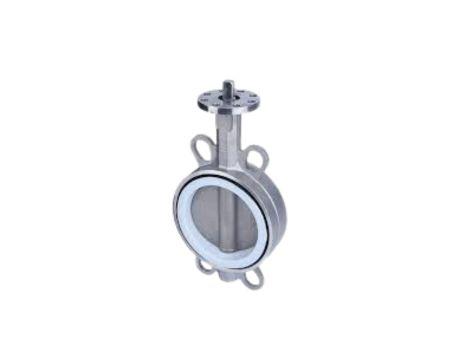

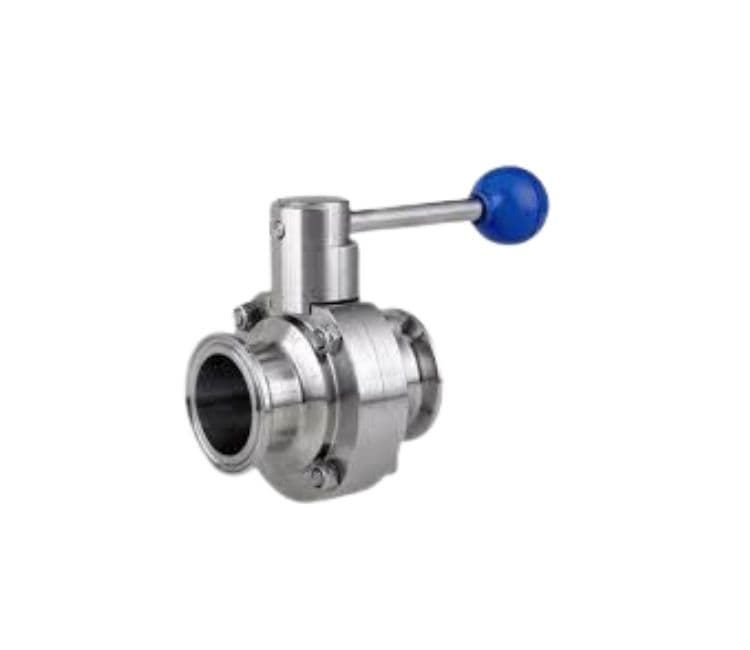

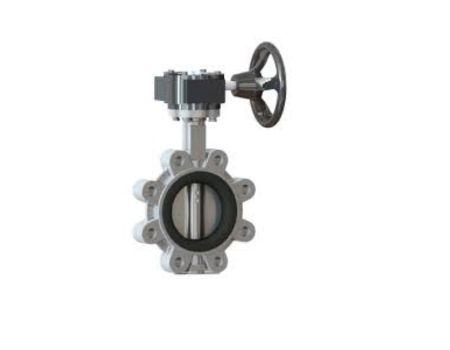

Stainless Steel Butterfly Valves
Bright Steel Centre is a reputable Stainless Steel Butterfly Valves Manufacturer, which produces high-end quality valves that guarantee a reliable operation in various industrial settings. Our valves are designed to be made with high precision, being highly resistant to corrosion, high pressure, and temperature changes. These butterfly valves are designed to be durable and efficient and enable a smooth action as well as a tight shut-off, which makes them perfect in the industries of chemicals, petrochemical, water treatment, and oil and gas. All the valves are made of superior stainless steel which makes them offer a long life in service and incur minimum maintenance.
A major sub-product that we manufacture is our Stainless Steel Gate Valves, which are small and strong but at the same time ideal products in the pipeline systems that have space constraints. These valves are available in B2BMarketplace platforms, which ensure timely acquisition and competitive prices of large-volume orders. They have diverse applications, which enable them to achieve accurate flow regulation in the industrial processes that are demanding and provide high corrosion-resistance ability. These valves are constructed to the international quality standards and are therefore the valves of choice to the engineers and other procurement experts who would like to have reliability and high performance.
Stainless Steel Butterfly Valves – Standard Dimension & Weight Guide
The following table provides a general reference for Stainless Steel Butterfly Valves manufactured according to widely accepted industrial standards. The dimensions and weights listed are approximate and intended for estimation, piping design, and procurement planning. Actual specifications may vary depending on pressure class, disc type, seat material, and manufacturing standards such as wafer, lug, or flanged design.
Stainless Steel Butterfly Valves
Nominal Size (NB) | Valve Face to Face Length (Mm) | Body Thickness (Mm) | Approx. Weight Per Piece (Kg) | Estimated Weight (25 Nos) (Kg) |
|---|---|---|---|---|
| 2” (50 NB) | 43 | 10.5 | 2.8 | 70 |
| 2½” (65 NB) | 46 | 11.0 | 3.9 | 97.5 |
| 3” (80 NB) | 49 | 12.5 | 5.5 | 137.5 |
| 4” (100 NB) | 56 | 14.0 | 7.8 | 195 |
| 5” (125 NB) | 64 | 15.5 | 10.5 | 262.5 |
| 6” (150 NB) | 70 | 17.0 | 14.8 | 370 |
| 8” (200 NB) | 71 | 20.5 | 23.5 | 587.5 |
| 10” (250 NB) | 76 | 24.0 | 36.0 | 900 |
| 12” (300 NB) | 83 | 27.5 | 52.0 | 1300 |
Our stainless steel valves are produced with enhanced corrosion resistance, reliability of flow control, and durability in harsh industrial environments. Constructed from high quality stainless steel material, these valves can be used with water, steam, chemicals, gases and high temperature liquids. Each valve has been precision-engineered for leak-free operation, smooth performance, and low maintenance, and is used for a variety of applications throughout the industry, including oil & gas, pharmaceuticals, food processing, petrochemicals, marine and water treatment. Strict quality control and testing procedures help guarantee dependable service life and operational efficiency under challenging conditions.
Type of Sub-products
Frequently Asked Questions
What industries commonly use stainless steel butterfly valves?
What makes stainless steel butterfly valves different from other types of valves?
