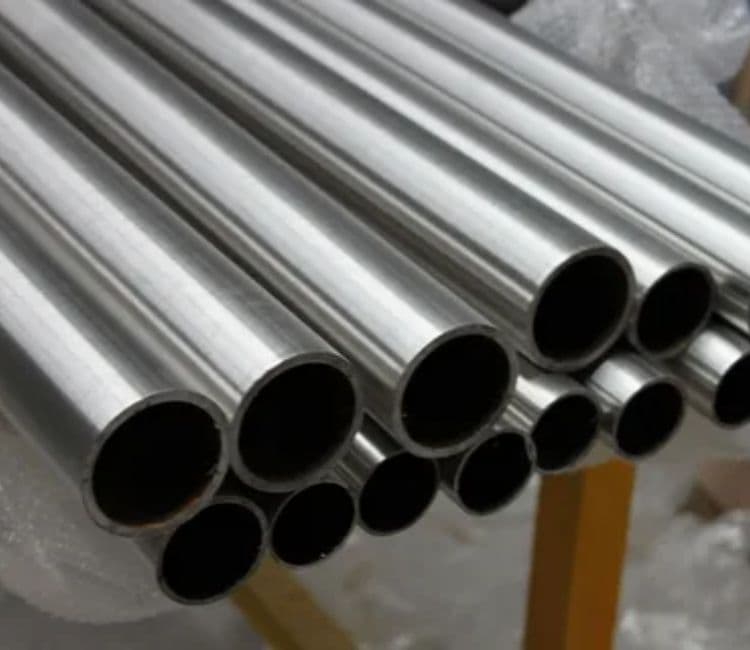

Stainless Steel Pipe Round Hollow Section Offering Clean Flow Path And Long Service Reliability Manufacturer In India
| Specifications | Astm, Asme, Din, Nfa, Jis |
|---|---|
| Thickness | 4.0mm, 100mm |
| Pipes Size | 1/8” Nb, 24” Nb, 1/4” Od, 24” Od Sizes |
| Tubes Size | 1/2″ Od, 8″ Od |
| Length: | Cut Length, Fix Length, Single Random, Double Random, Required Length |
| End | Plain End, Beveled End, Threaded |
Stainless Steel Pipe Supplied in Multiple Outside Diameters Wall Thicknesses and Length Options for Industrial Use
Timex Metals is a giant Stainless Steel Pipe Manufacturer that produces premium quality pipes that comply with international standards of strength and performance. Our stainless steel pipes are offered in a wide variety of grades, sizes, and finishes to meet the various requirements of various industries, including oil and gas, petrochemical, power generation, and construction. We also provide a high quality of corrosion resistance, durability, and high dimensional control in each pipe through the advanced manufacturing technology and strict quality control of each pipe. Our products are known to be highly relied on in critical applications, which require reliability and prolonged service life.
Fluid transfer in chemical processing, food handling, power generation, and high-temperature services, which demand corrosion resistance and cleanliness, is transferred through stainless steel pipes. The parameters of grade selection, schedule, and wall thickness have a direct impact on the pressure handling and service life, and those pipes are usually evaluated with Stainless Steel Pipe Fittings to provide the compatibility of dimensions and leak-free connections. With a B2B portal, engineers and procurement teams will be in a better place to compare grades, make accurate weight line calculations, and find piping solutions that will fit the operational and regulatory requirements.
Stainless Steel Pipe – Material & Specification Table
| Material | Grade / Standard | Pipe Type | Nominal Size (NB) | Outer Diameter (mm) | Wall Thickness (mm) | Length (m) | Schedule | Approx. Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|
| Stainless Steel | ASTM A312 TP304 | Seamless | 25 | 33.40 | 3.38 | 6 | Sch 40 | 2.50 |
| Stainless Steel | ASTM A312 TP316 | Seamless | 40 | 48.30 | 3.68 | 6 | Sch 40 | 4.05 |
| Stainless Steel | ASTM A312 TP321 | Seamless | 50 | 60.33 | 3.91 | 6 | Sch 40 | 5.44 |
| Stainless Steel | ASTM A312 TP347 | Seamless | 80 | 88.90 | 5.49 | 6 | Sch 40 | 11.30 |
| Stainless Steel | ASTM A312 TP310S | Seamless | 100 | 114.30 | 6.02 | 6 | Sch 40 | 16.10 |
Material & Process-Focused Overview
- Behaviour of Applications in Corrosive Conditions: Pipes made of stainless steel are chosen in systems that are subjected to corrosive media, moisture, and also changing temperatures where the integrity of the material is a major concern. The composition is their chromium that creates passive oxide that prevents rusting, scaling and chemical attack and that makes them suitable in hygienic and aggressive service conditions.
- Production Processes and Finish: These pipes are manufactured either in seamless or welded as per pressure needs and size needs. The manufacturing is controlled to assure consistency of wall thickness, the inner surfaces, and the system contamination is also limited, particularly in high purity fluid handling, pharmaceutical, and food processing.
- Grade Range and Characteristics of performance: Systemic grades available are SS 304, SS 316, SS 321 and duplex grades, each having varying grades of corrosion resistance, strength and temperature range. The chloride exposure, operating pressure, and thermal cycling are used in determining the grade selection to guarantee long-term reliability.
- Service Life, Cleanability & maintenance: Stainless steel pipes are very clean and do not get fouled easily, minimizing downtimes and maintenance expenses. Their resistance to repeated cleaning, change in pressure and their constant flow make them a reliable solution in critical industrial, marine, and processing.
Client Project Report of Fastener
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| Stainless Steel Pipes for Chemical Process Lines | 171 Pieces | Vapi |
| Stainless Steel Pipes for Food & Beverage Installations | 208 Pieces | Baramati |
| Stainless Steel Pipes for Pharmaceutical Utilities | 164 Pieces | Hyderabad |
| Stainless Steel Pipes for Offshore & Marine Applications | 197 Pieces | Kochi |
Type of Sub-products

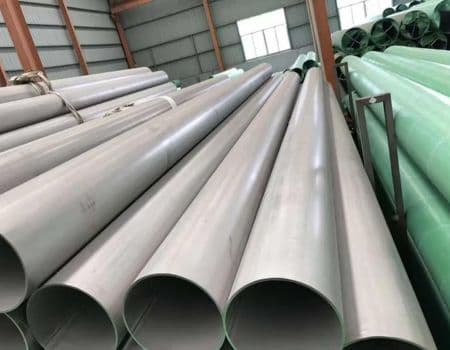

Ss 304 Seamless Pipes Ss 304 Seamless Pipes
These pipes offer excellent corrosion resistance and are ideal for moderate temperature fluid systems in water supply, marine, and structural applications.

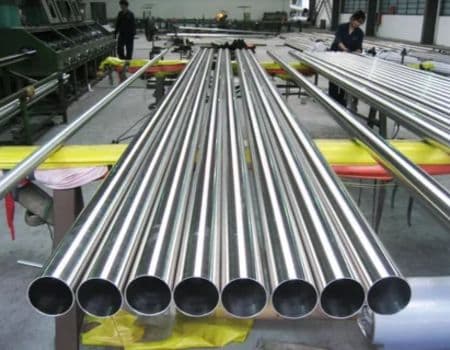

Ss 316 Welded Pipes Ss 316 Welded Pipes
With enhanced molybdenum content, SS 316 welded pipes are preferred in highly corrosive settings like chemical processing, seawater applications, and pharmaceuticals.
