Stainless Steel Seamless Pipes | Astm A312 Tp304 Manufacturer & Supplier In India

Name: Stainless Steel Seamless Pipes | Astm A312 Tp304 Manufacturer & Supplier In India
Brand: Magmite Steel & Alloys
Availability: InStock
Rating: 4 (1 reviews)

Specification Details
Specifications	Astm, Asme, Din, Nfa
Thickness	100mm, 4.0mm
Pipes Size	1/8” Nb, 24” Nb, 1/4” Od, 24” Od Sizes
Tubes Size	8″ Od, 1/2″ Od
Length:	Cut Length, Required Length, Fix Length, Single Random, Double Random
End	Plain End, Beveled End, Threaded

Stainless Steel Seamless Pipes | ASTM A312 TP316 Industrial Pipe Manufacturer

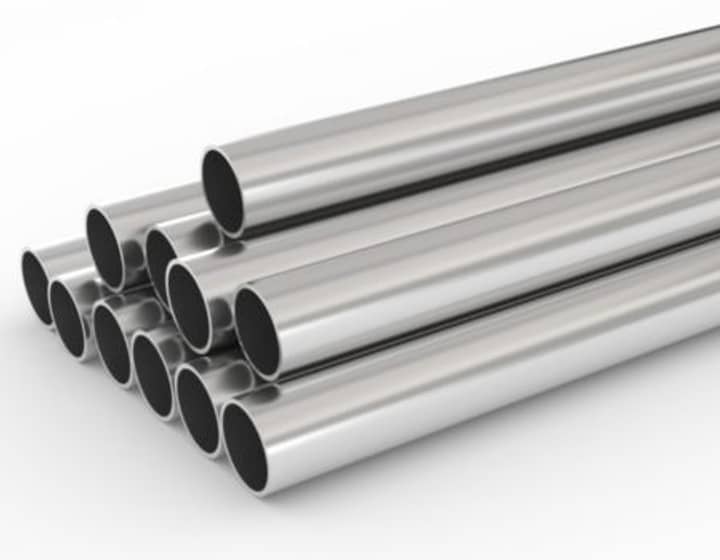

Magmite Steel & Alloys is one of the best stainless steel seamless pipe manufacturers, offering high-quality seamless pipes for various industries with a focus on strength, durability, and corrosion resistance. The stainless steel seamless pipe is produced by the technology of the extrusion process so that there is no welded joint in the pipe, with better structure and pressure-bearing capacity. The pipes are widely utilized in chemical plants, refineries, power stations, marine projects, and heat exchanger systems where reliability in harsh operating conditions is required.

We provide stainless steel welded pipes, which are highly weldable and have high dimensional accuracy with good coating properties, to service industries through a reliable B2B portal. Grades like SS 304 are generally used in many applications because they are very corrosion resistant and formable, while SS 304L offers a lower carbon content to enhance weldability. Because of their molybdenum content, SS 316 and SS 316L are appropriate for use in aggressive environments; SS 321 has superior high-temperature oxidation resistance. Stainless steel pipes are suitable for use in processing equipment, fluid transportation systems, and structural applications in these grades.

Stainless Steel Seamless Pipe - Dimensions Chart

NPS	Outside Diameter		Nominal Wall Thickness
Designator	in.	mm	Schedule 5S		Schedule 10S		Schedule 40S		Schedule 80S
	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
1/8	0.41	10.29	…	…	0.049	1.24	0.068	1.73	0.095	2.41
1/4	0.54	13.72	…	…	0.065	1.65	0.088	2.24	0.119	3.02
3/8	0.68	17.15	…	…	0.065	1.65	0.091	2.31	0.126	3.2
1/2	0.84	21.34	0.065	1.65	0.083	2.11	0.109	2.77	0.147	3.73
3/4	4.05	26.67	0.065	1.65	0.083	2.11	0.113	2.87	0.154	3.91
1	1.32	33.4	0.065	1.65	0.109	2.77	0.133	3.38	0.179	4.55
1 1/4	1.66	42.16	0.065	1.65	0.109	2.77	0.14	3.56	0.191	4.85
1 1/2	1.90	48.26	0.065	1.65	0.109	2.77	0.145	3.68	0.2	5.08
2	2.38	60.33	0.065	1.65	0.109	2.77	0.154	3.91	0.218	5.54
2 1/2	2.88	73.03	0.083	2.11	0.12	3.05	0.203	5.16	0.276	7.01
3	3.50	88.9	0.083	2.11	0.12	3.05	0.1216	5.49	0.3	7.62
3 1/2	4.00	101.6	0.083	2.11	0.12	3.05	0.226	5.74	0.318	8.08
4	4.50	114.3	0.083	2.11	0.12	3.05	0.237	6.02	0.337	8.56
5	5.56	141.3	0.10*9	2.77	0.134	3.4	0.258	6.55	0.375	9.52
6	6.63	168.28	0.10*9	2.77	0.134	3.4	0.28	7.11	0.432	10.97
8	8.63	219.08	0.109	2.77	0.148	3.76	0.322	8.18	0.5	12.7
10	10.75	273.05	0.134	3.4	0.165	4.19	0.365	9.27	0.5	12.7
12	12.75	323.85	0.156	3.96	0.18	4.57	0.375	9.52	0.5	12.7
14	14.00	355.6	0.156	3.96	0.188	4.78	…	…	…	…
16	16.00	406.4	0.165	4.19	0.188	4.78	…	…	…	…
18	18.00	457.2	0.165	4.19	0.188	4.78	…	…	…	…
20	20.00	508	0.188	4.78	0.188	4.78	…	…	…	…
22	22.00	558.8	0.188	4.78	0.218	5.54	…	…	…	…
24	24.00	609.6	0.218	5.54	0.25	6.35	…	…	…	…
30	30.00	762	0.25	6.35	0.312	7.92	…	…	…	…

Stainless Steel Seamless Pipes - Mechanical Properties

Type	UNS	Tensile (ksi) min	Yield (ksi) min	Elongation min	Hardness (Brinell) max	Hardness (Rockwell B) max
304	S30400	75	30	40% in 2"	183	88
304L	S30403	70	30	40% in 2"	183	88
310	S31000	75	30	40% in 2"	217	95
316	S31600	75	30	40% in 2"	217	95
316L	S31603	70	25	35% in 2"	217	95
317L	S31703	75	30	35% in 2"	217	95
321	S32100	75	30	40% in 2"	183	88
