Are Stainless Steel Weld Neck Flanges leak proof?

Yes, when properly welded, Stainless Steel Weld Neck Flanges provide a secure, leak free joint.

What sizes are available for Stainless Steel Weld Neck Flanges?

Stainless Steel Weld Neck Flanges are available in a wide range of diameters, from small bore to large industrial piping sizes.

Which standards do Stainless Steel Weld Neck Flanges comply with?

They are manufactured according to ASTM, ASME, DIN, EN, and API standards.

Can Stainless Steel Weld Neck Flanges be welded?

Yes, Stainless Steel Weld Neck Flanges are designed for butt welding with piping systems for strong, leak proof connections.

Are Stainless Steel Weld Neck Flanges suitable for high temperature applications?

Yes, Stainless Steel Weld Neck Flanges maintain strength and corrosion resistance at elevated temperatures.

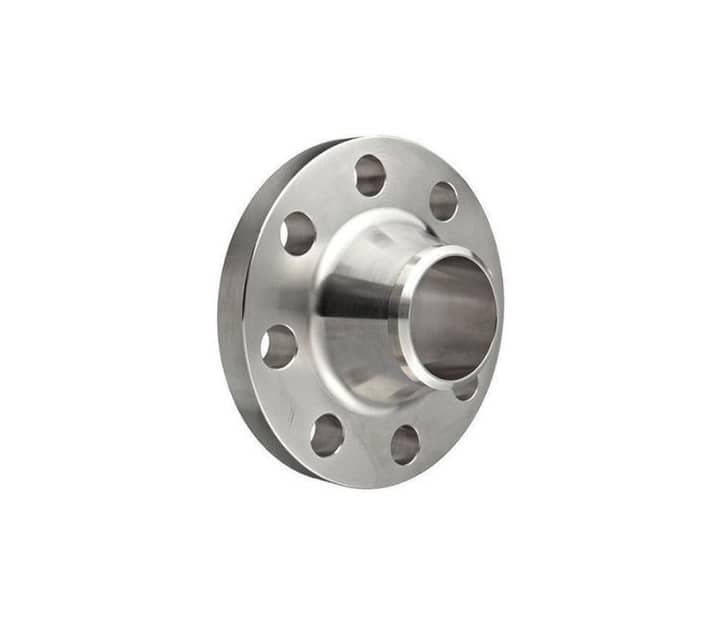

Stainless Steel Weld Neck Flanges Supplier In Uae Supplying Astm A182 F304, F304l, F316 & F316l

Name: Stainless Steel Weld Neck Flanges Supplier In Uae Supplying Astm A182 F304, F304l, F316 & F316l
Brand: Akai Metal
Availability: InStock
Rating: 4 (1 reviews)

₹82 - ₹173

Minimum Order : 50 piece

Customization as per requirements

Specification Details
Flanges Types	Slip On, Weld Neck, Long Weld Neck, Threaded, Blind, Companion, Lap Joint
Class	150 Lbs, 300 Lbs, 600 Lbs, 900 Lbs, 1500 Lbs, 2500 Lbs Asa 150, Asa 300, Pn 6, 10, 16, 25, 40, 64, 100, 160
Size	1/2″ (15 Nb), 48″ (1200nb) Dn10~dn5000
Type	Raised Face (rf), Flat Face (ff), Ring Type Joint (rtj), Lap Joint Face (ljf), Large Male Female (lmf), Small Male Female (smf), Large Tongue & Groove, Small Tongue, Groove

Stainless Steel Weld Neck Flanges Supplier in UAE Offering ASME B16.5 & B16.47 Standard Flanges

Akai Metal is one of the best Stainless Steel Weld Neck Flanges Supplier In UAE and it deals with high-pressure and high-temperature piping systems flanges. The stainless steel weld neck flanges are used in the oil and gas, petrochemical, power generation, and marine sectors because it is very strong, has leak resolution connection and is very resistant to corrosion. Tapered hub is long and it ensures reinforcement and less concentration of stress at the flange base.

These flanges manufactured with different classes and sizes of pressure according to the international standards are available by trusted B2B marketplace. Stainless Steel Studding Flange is applied in special purpose such as compact systems and Stainless Steel Companion Flange are usually connected with stub ends to achieve the flexible piping systems.

Stainless Steel Weld Neck Flanges provide the experience of smooth flow transition and structural integrity in piping installations that are of critical nature. In the case of metering and flow measuring systems, there is the frequent use of Stainless Steel Orifice Flanges that are used to support the instrumentation needs. They are high quality products, so as a reputable Stainless Steel Weld Neck Flanges Dealer in UAE, they are provided with quality control issues, which are used to provide the desired dimensional accuracy and long life of product in the harsh environment.

Material & Grades of Stainless Steel Weld Neck Flanges

Stainless Steel Weld Neck Flanges are available in multiple stainless steel grades to meet corrosion resistance and pressure-handling requirements. Selecting the appropriate grade ensures durability and operational safety.

Material	Grade / Standard	Pressure Class	Size Range (Inch)	Typical Applications
Stainless Steel	304 / 304L	150 – 2500	½” – 48”	Chemical processing
Stainless Steel	316 / 316L	150 – 2500	½” – 48”	Marine & offshore
Stainless Steel	321	150 – 1500	½” – 24”	High-temperature systems
Stainless Steel	904L	150 – 1500	½” – 24”	Acid handling units

Key Features & Advantages

High strength and pressure resistance
Excellent corrosion and oxidation resistance
Smooth bore alignment for reduced turbulence
Suitable for high-temperature applications
Leak-proof welded connection
Available in standard and customized specifications

Size & Specification

Specification	Details
Size Range	1/2” NB to 48” NB
Pressure Class	150#, 300#, 600#, 900#, 1500#, 2500#
Standards	ASME B16.5, ASME B16.47
Face Type	RF, RTJ, FF
Manufacturing	Forged
Testing	PMI, UT, Hydro Test

Chemical Composition (Typical – SS 316)

Element	% Content
Chromium	16.0 – 18.0
Nickel	10.0 – 14.0
Molybdenum	2.0 – 3.0
Carbon	0.08 max
Manganese	2.0 max

Type of Sub-products

Stainless Steel Flat Face (ff) Weld Neck Flanges
Stainless Steel Flat Face (ff) Weld Neck Flanges
Stainless Steel Flat Face Weld Neck Flanges are manufactured from premium stainless steel, offering excellent strength, corrosion resistance, and dimensional stability. The flat face design ensures uniform load distribution and secure sealing with gaskets, making them suitable for pipelines, pressure vessels, and industrial systems where reliable flange connections and long lasting performance are required.
Stainless Steel Ring Type Joint (rtj) Weld Neck Flanges
Stainless Steel Ring Type Joint (rtj) Weld Neck Flanges
Stainless Steel RTJ Weld Neck Flanges are precision engineered from high grade stainless steel, designed for high pressure and high temperature applications. Featuring a metal ring groove, they provide a robust, leak proof seal in critical pipeline systems. These flanges are ideal for oil & gas, petrochemical, and chemical processing industries, ensuring durability, corrosion resistance, and reliable long term performance.
