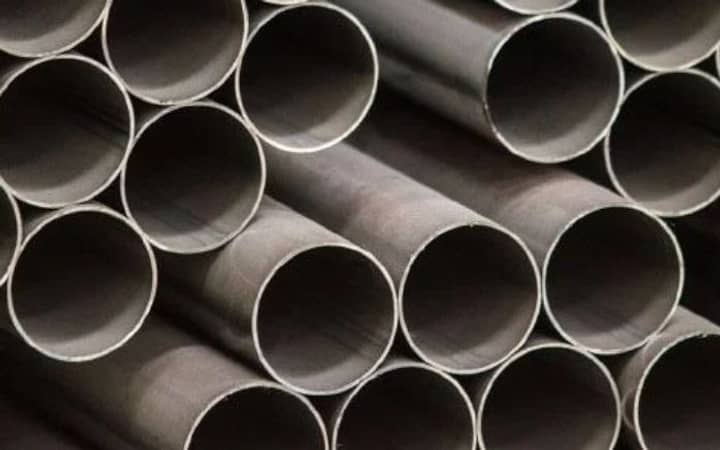

Stainless Steel Welded Pipes | Astm A312 Tp304 Manufacturer & Supplier In India
| Specifications | Astm, Asme, Din, Nfa, Jis |
|---|---|
| Thickness | 4.0mm, 100mm |
| Pipes Size | 1/8” Nb, 24” Nb, 1/4” Od, 24” Od Sizes |
| Tubes Size | 1/2″ Od, 8″ Od |
| Length: | Cut Length, Required Length, Fix Length, Single Random, Double Random |
| End | Beveled End, Plain End, Threaded |
Stainless Steel Welded Pipes | ASTM A312 TP316 Supplier and Manufacturer
Magmite Steel & Alloys is a leading stainless steel welded pipes manufacturer offering high-quality piping solutions engineered to meet the requirements of modern industries. Produced by high-quality welding technology and high-level stainless steel coils, these pipes ensure precise dimensions, a smooth surface, and strong mechanical properties. The stainless steel welded pipes are widely utilized in building, chemical processing, food production, papermaking, and water systems because of their durability and cost-effectiveness. They are chosen for projects both in industry and business because of their resistance to corrosive effects.
Industries can obtain a complete line of piping products, such as stainless steel seamless pipes used in high-pressure and critical service applications, through a well-established B2B wholesaler network. The performance of pipe depends greatly on the material grade, and SS 304 is a popular choice for general engineering applications due to its good corrosion resistance and workability. SS 304L provides lower carbon content to ensure better welding properties, and SS 316 has molybdenum to provide greater resistance to chemicals and chlorides. SS 316L offers enhanced resistance to corrosion from welding, making it ideal for marine, pharmaceutical, and petrochemical use in demanding environments.
Stainless Steel Welded Pipes - Chemical Composition
| Type | C | Mn | P | S | Si | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/10.50 | - |
| 304L | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/12.00 | - |
| 310 | 0.25 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | - |
| 316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 316L | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 317L | 0.03 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 321 | 0.08 | 2.00 | 0.040 | 0.030 | 1.00 | 17.00/19.00 | 9.00/12.00 | 0.75/0.75 |
Stainless Steel Welded Pipes Mechanical Properties
| Type | UNS | Tensile (ksi) min | Yield (ksi) min | Elongation min | Hardness (Brinell) max | Hardness (Rockwell B) max |
|---|---|---|---|---|---|---|
| 304 | S30400 | 75 | 30 | 40% in 2" | 183 | 88 |
| 304L | S30403 | 70 | 30 | 40% in 2" | 183 | 88 |
| 310 | S31000 | 75 | 30 | 40% in 2" | 217 | 95 |
| 316 | S31600 | 75 | 30 | 40% in 2" | 217 | 95 |
| 316L | S31603 | 70 | 25 | 35% in 2" | 217 | 95 |
| 317L | S31703 | 75 | 30 | 35% in 2" | 217 | 95 |
| 321 | S32100 | 75 | 30 | 40% in 2" | 183 | 88 |
Stainless Steel Welded Pipe Dimensions Chart & Size Chart
| NPS | Outside Diameter | Nominal Wall Thickness | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Designator | in. | mm | Schedule 5S | Schedule 10S | Schedule 40S | Schedule 80S | ||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 1/8 | 0.41 | 10.29 | … | … | 0.049 | 1.24 | 0.068 | 1.73 | 0.095 | 2.41 |
| 1/4 | 0.54 | 13.72 | … | … | 0.065 | 1.65 | 0.088 | 2.24 | 0.119 | 3.02 |
| 3/8 | 0.68 | 17.15 | … | … | 0.065 | 1.65 | 0.091 | 2.31 | 0.126 | 3.2 |
| 1/2 | 0.84 | 21.34 | 0.065 | 1.65 | 0.083 | 2.11 | 0.109 | 2.77 | 0.147 | 3.73 |
| 3/4 | 4.05 | 26.67 | 0.065 | 1.65 | 0.083 | 2.11 | 0.113 | 2.87 | 0.154 | 3.91 |
| 1 | 1.32 | 33.4 | 0.065 | 1.65 | 0.109 | 2.77 | 0.133 | 3.38 | 0.179 | 4.55 |
| 1 1/4 | 1.66 | 42.16 | 0.065 | 1.65 | 0.109 | 2.77 | 0.14 | 3.56 | 0.191 | 4.85 |
| 1 1/2 | 1.90 | 48.26 | 0.065 | 1.65 | 0.109 | 2.77 | 0.145 | 3.68 | 0.2 | 5.08 |
| 2 | 2.38 | 60.33 | 0.065 | 1.65 | 0.109 | 2.77 | 0.154 | 3.91 | 0.218 | 5.54 |
| 2 1/2 | 2.88 | 73.03 | 0.083 | 2.11 | 0.12 | 3.05 | 0.203 | 5.16 | 0.276 | 7.01 |
| 3 | 3.50 | 88.9 | 0.083 | 2.11 | 0.12 | 3.05 | 0.1216 | 5.49 | 0.3 | 7.62 |
| 3 1/2 | 4.00 | 101.6 | 0.083 | 2.11 | 0.12 | 3.05 | 0.226 | 5.74 | 0.318 | 8.08 |
| 4 | 4.50 | 114.3 | 0.083 | 2.11 | 0.12 | 3.05 | 0.237 | 6.02 | 0.337 | 8.56 |
| 5 | 5.56 | 141.3 | 0.10*9 | 2.77 | 0.134 | 3.4 | 0.258 | 6.55 | 0.375 | 9.52 |
| 6 | 6.63 | 168.28 | 0.10*9 | 2.77 | 0.134 | 3.4 | 0.28 | 7.11 | 0.432 | 10.97 |
| 8 | 8.63 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.5 | 12.7 |
| 10 | 10.75 | 273.05 | 0.134 | 3.4 | 0.165 | 4.19 | 0.365 | 9.27 | 0.5 | 12.7 |
| 12 | 12.75 | 323.85 | 0.156 | 3.96 | 0.18 | 4.57 | 0.375 | 9.52 | 0.5 | 12.7 |
| 14 | 14.00 | 355.6 | 0.156 | 3.96 | 0.188 | 4.78 | … | … | … | … |
| 16 | 16.00 | 406.4 | 0.165 | 4.19 | 0.188 | 4.78 | … | … | … | … |
| 18 | 18.00 | 457.2 | 0.165 | 4.19 | 0.188 | 4.78 | … | … | … | … |
| 20 | 20.00 | 508 | 0.188 | 4.78 | 0.188 | 4.78 | … | … | … | … |
| 22 | 22.00 | 558.8 | 0.188 | 4.78 | 0.218 | 5.54 | … | … | … | … |
| 24 | 24.00 | 609.6 | 0.218 | 5.54 | 0.25 | 6.35 | … | … | … | … |
| 30 | 30.00 | 762 | 0.25 | 6.35 | 0.312 | 7.92 | … | … | … | … |

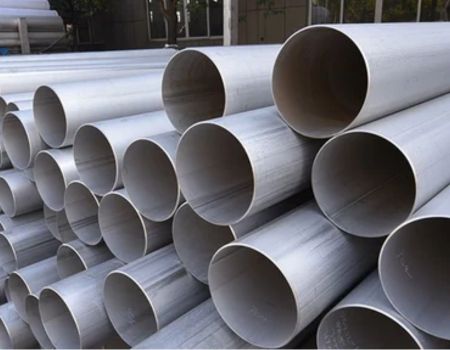

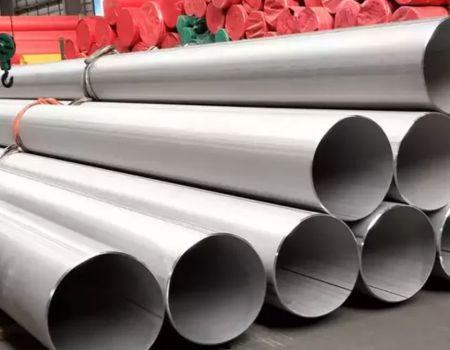

Type of Sub-products
Frequently Asked Questions
Where are Stainless Steel Welded Pipes used?
How to select the right Stainless Steel Welded Pipe?
