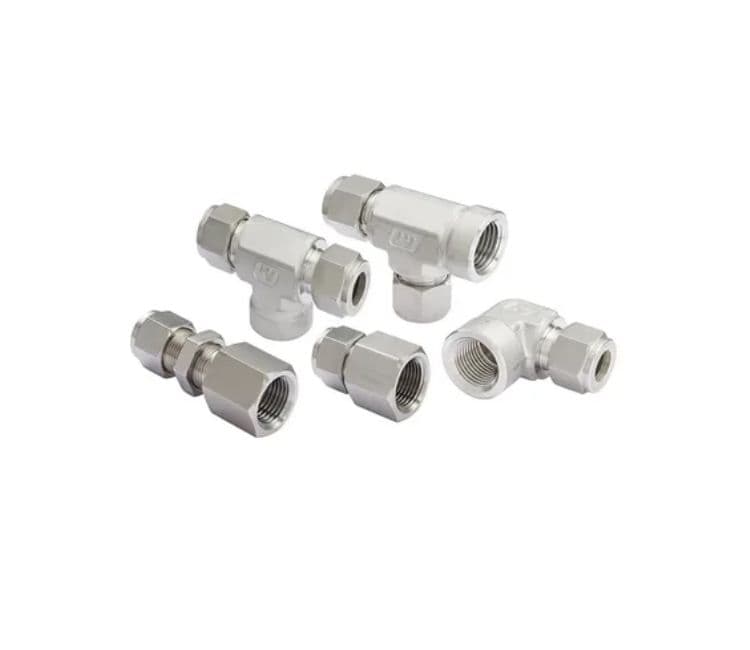

Tube Fittings

₹69 - ₹162

Minimum Order : 100 piece

Customization as per requirements


Tube Fittings – Specification

Specification Details
MaterialBrass, Carbon Steel, Alloy Steel, Plastic Pvc/ Ptfe
Thread TypeMetric, Iso, Bspt, Bsp, Npt
Connection TypeCompression, Push To Connect, Threaded, Flared, Welded, Barbed
Compliance StandardsAstm, Iso, Din, Asme, Sae, Jic

Tube Fittings





Type of Sub-products

  • Compression Tube Fittings

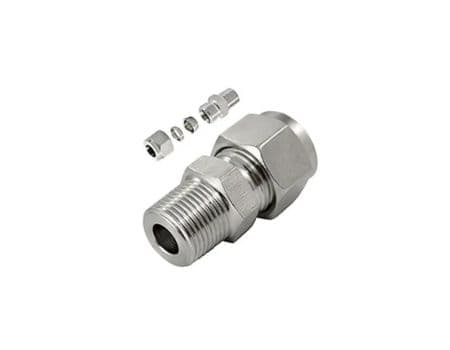

    Compression Tube Fittings

    Compression Tube Fittings

    These fittings create a mechanical, leak tight seal by compressing a ferrule onto the tube. They are popular in instrumentation, chemical, and hydraulic systems where assembly and disassembly must be quick and repeatable.

  • Tube Unions

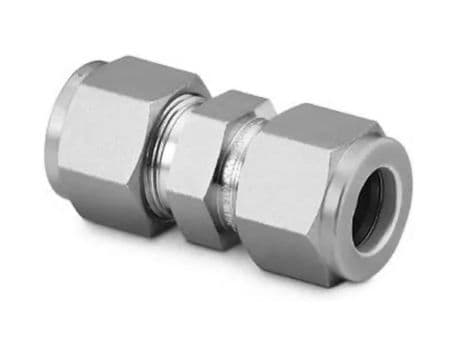

    Tube Unions

    Tube Unions

    Straight, reducing, and bulkhead unions are used to join two tubes in a secure, inline connection. They maintain consistent bore alignment for smooth fluid flow and are available in a wide range of materials and pressure ratings.

  • Adapters & Connectors
    Adapters & Connectors

    Adapters & Connectors

    Threaded or welded adapters convert tube connections to pipe threads, male/female ends, or special couplings, making them essential when integrating multiple connection standards in one system.


Frequently Asked Questions

What are the major types of Tube Fittings available?

Common categories include compression fittings, unions, elbows, tees, adapters, bulkhead fittings, ferrule sets, and quick connect couplings. Compression fittings are especially popular because they achieve a secure seal through a ferrule system that grips the tubing without deforming it. Other specialty designs—like needle valves integrated into tube fittings or swivel nut connectors—are used when precise flow control or frequent disassembly is required. Each type addresses specific layout, orientation, and maintenance needs within a piping or instrumentation network.

What testing and quality control measures are applied to Tube Fittings?

Reputable manufacturers perform hydrostatic and pneumatic pressure tests, positive material identification (PMI), dimensional inspections, and, where required, non destructive testing (NDT) such as dye penetrant or ultrasonic checks. Surface finish, hardness, and ferrule geometry are verified to maintain consistent sealing. Certifications such as EN 10204 3.1 or 3.2 may accompany each batch, providing traceability and compliance with global B2B supply chain standards.

What steps should be followed to ensure correct Tube Fitting installation?

Successful installation starts with cutting the tube squarely, deburring edges, and cleaning both the tube and fitting. Insert the tube fully into the fitting body, tighten the nut to the manufacturer’s recommended turns or torque, and mark the nut position for future reference. Avoid using lubricants on ferrule contact surfaces unless specified. A pressure test after installation validates the integrity of the joint. Proper alignment prevents bending stresses that can lead to premature leakage or cracking.
