| Specifications | Astm, Asme, Din, Nfa, Jis |
|---|---|
| Thickness | 4.0mm, 100mm |
| Pipes Size | 1/8” Nb, 24” Nb, 1/4” Od, 24” Od Sizes |
| Tubes Size | 1/2″ Od, 8″ Od |
| Length: | Cut Length, Fix Length, Single Random, Double Random, Required Length |
| End | Plain End, Beveled End, Threaded |

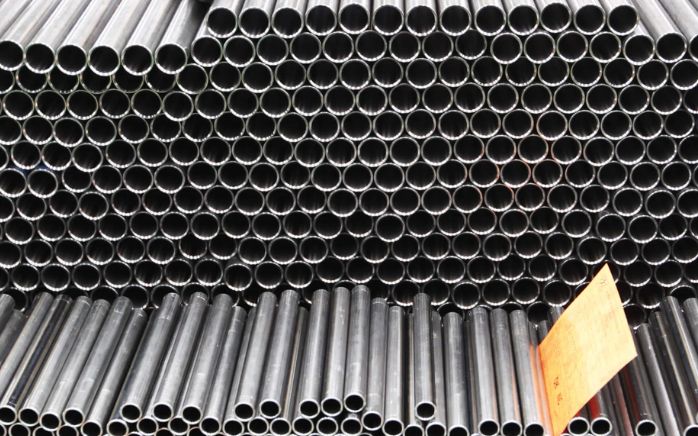

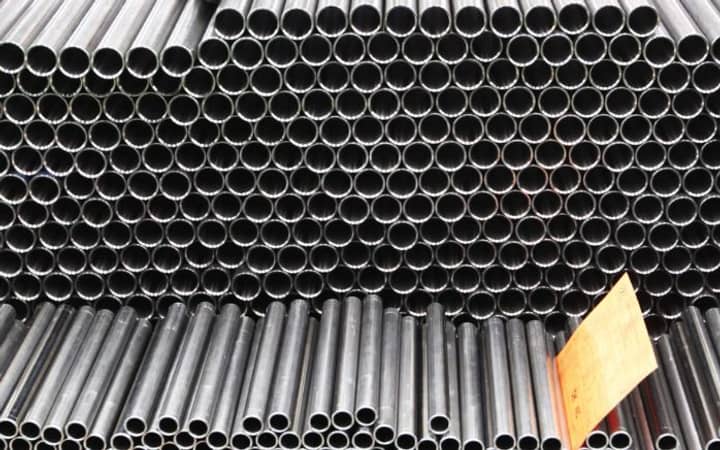

Tubes Manufacturer in India
Reminox Metal And Alloys is a Tubes Manufacturer in India, offering a wide range of high-quality tubes designed for various industrial applications. These tubes are crafted from stainless steel, carbon steel, and alloy steel, providing excellent durability, strength, and corrosion resistance. Tubes are ideal for use in fluid and gas transportation, mechanical engineering, construction, and heat exchangers. With a focus on quality and timely delivery, we continue to be a reliable partner for all your tube requirements. With their smooth inner surface and resistance to wear and tear, tubes provide efficient flow and long-lasting performance in critical systems.
Tubes – Mechanical Properties Table
| Tube Standard / Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Max Service Temp (°C) | Typical Applications |
|---|---|---|---|---|---|
| ASTM A179 (CS) | ≥325 | ≥180 | ≥35 | ~400 | Heat exchangers |
| ASTM A192 (CS) | ≥325 | ≥180 | ≥25 | ~500 | Boilers |
| ASTM A210 Gr A1 | ≥415 | ≥255 | ≥30 | ~500 | Boiler & superheater |
| ASTM A213 TP304 | ≥515 | ≥205 | ≥35 | ~870 | Heat exchangers |
| ASTM A213 TP316 | ≥515 | ≥205 | ≥35 | ~870 | Chemical & marine service |
| ASTM A269 TP304 | ≥515 | ≥205 | ≥40 | ~870 | Instrumentation |
| ASTM A249 TP316 | ≥515 | ≥205 | ≥35 | ~870 | Welded exchanger tubes |
| EN 10216 E235 | ≥360 | ≥235 | ≥25 | ~300 | Mechanical tubes |
| EN 10297 E355 | ≥490 | ≥355 | ≥22 | ~300 | Precision tubes |
Tubes – Chemical Composition Table (Typical %)
| Grade | C | Mn | Si | Cr | Ni | Mo |
|---|---|---|---|---|---|---|
| ASTM A179 | ≤0.06 | 0.27–0.63 | ≤0.25 | — | — | — |
| ASTM A192 | ≤0.18 | 0.45–0.90 | ≤0.25 | — | — | — |
| ASTM A210 A1 | ≤0.27 | 0.93 | ≤0.10 | — | — | — |
| ASTM A213 TP304 | ≤0.08 | ≤2.00 | ≤1.00 | 18–20 | 8–11 | — |
| ASTM A213 TP316 | ≤0.08 | ≤2.00 | ≤1.00 | 16–18 | 10–14 | 2–3 |
| ASTM A269 TP304 | ≤0.08 | ≤2.00 | ≤1.00 | 18–20 | 8–11 | — |
| EN 10297 E355 | ≤0.22 | ≤1.60 | ≤0.55 | — | — | — |
Type of Sub-products

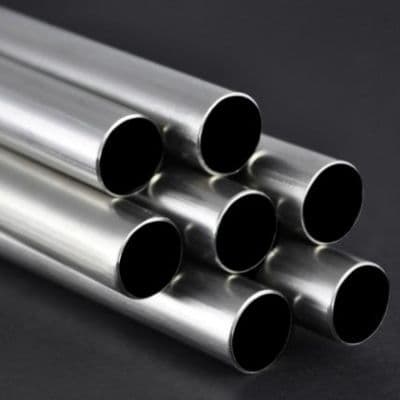

Stainless Steel Tubes Stainless Steel Tubes
Known for corrosion resistance, ideal for harsh environments.

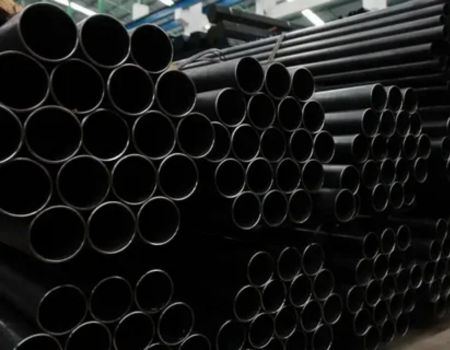

Carbon Steel Tubes Carbon Steel Tubes
Offers strength and durability for structural and industrial applications.
