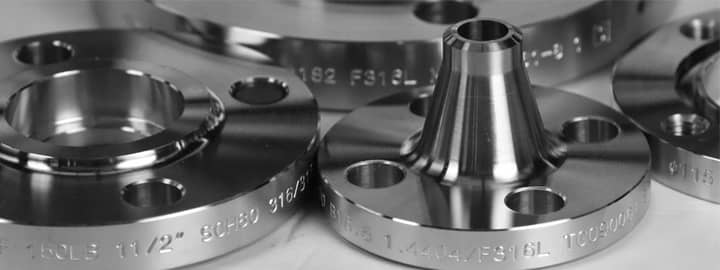

Weld Neck Flanges Manufacturer In India Supplying Asme B16.5 Astm A105 Astm A182 F304

Name: Weld Neck Flanges Manufacturer In India Supplying Asme B16.5 Astm A105 Astm A182 F304
Brand: Nitech Stainless Inc
Availability: InStock
Rating: 5 (20 reviews)

Specification Details
Flanges Types	Slip On, Weld Neck, Long Weld Neck, Threaded, Blind, Companion, Lap Joint, Slip On, Weld Neck, Long Weld Neck, Threaded, Blind, Lap Joint, Companion
Class	150 Lbs, 300 Lbs, 600 Lbs, 900 Lbs, 1500 Lbs, 2500 Lbs Asa 150, Asa 300, Pn 6, 10, 16, 40, 64, 100, 160, 25, 150 Lbs, Pn 6, 300 Lbs, 600 Lbs, 900 Lbs, 1500 Lbs, 2500 Lbs Asa 150, Asa 300
Size	48″ (1200nb) Dn10~dn5000, 1/2″ (15 Nb), 1/2″ (15 Nb), 48″ (1200nb) Dn10~dn5000
Type	Raised Face (rf), Flat Face (ff), Lap Joint Face (ljf), Ring Type Joint (rtj), Large Male Female (lmf), Small Male Female (smf), Large Tongue & Groove, Small Tongue, Groove, Raised Face (rf), Large Male Female (lmf), Small Tongue, Groove, Small Male Female (smf), Flat Face (ff), Ring Type Joint (rtj), Lap Joint Face (ljf), Large Tongue & Groove

Weld Neck Flanges Manufacturer In India for Oil & Gas Refineries and High Pressure Piping Industries

Nitech Stainless Inc is a Weld Neck Flanges manufacturer that manufactures flanges that are precision engineered to fit high pressure and high temperature piping systems. Tapered hub allows the smooth conversion of stress on flange to pipe, thus enhancing the integrity of the weld and minimizing turbulence in the flow path. The individual flanges are made of highly chosen alloy grades and stainless steel to enhance the corrosion resistance, dimensional and structural voltage over the portion of time. The smooth bore ensures steady flow and strict quality control is made so that it does not leak in the harsh industrial settings.

Product Grade & Specification Table

Material	Standard (Common)	Pressure Class	Size Range	Facing Type	Finish	Typical Application
Carbon Steel	ASTM A105 / ASME B16.5	Class 150 – 2500	½” – 48”	RF / RTJ	Black / Coated	Refineries, Petrochemical, Oil & Gas
Low Temp Carbon Steel	ASTM A350 LF2	Class 150 – 1500	½” – 24”	RF / RTJ	Coated	Cryogenic & low-temperature systems
Alloy Steel	ASTM A182 F11/F22	Class 300 – 2500	½” – 36”	RF / RTJ	Black / Coated	High temperature & high pressure
Stainless Steel	ASTM A182 F304/316	Class 150 – 2500	½” – 48”	RF / RTJ	Machined	Corrosive & marine environments
Duplex / Super Duplex	ASTM A182 F51/F55	Class 300 – 1500	½” – 24”	RF / RTJ	Machined	Offshore, desalination, chemical exposure
Nickel Alloy	ASTM B564 (Alloy 400/625)	Class 150 – 600	½” – 12”	RF / RTJ	Machined	Marine & chemical process plants

Key Features

Application Scope: Weld Neck Flanges are common where there are petrochemical piping, power stations, offshore platforms, refinery units, LNG system and industrial process lines that require high strength welded joints.

Structural Design: The long tapered hub forms facilitate the stress flow between flange and pipe, less turbulence, and eliminates erosion at the weld region.

Material Grades: Materials are available in the Carbon Steel, Low Temp, Stainless Steel (304/316) depending on process media and temperature, as well as Duplex, Super Duplex, Alloy Steel and Nickel Alloys.

Technical Attributes:

Withstands high-pressure and high temperature.
Welded connection which is airtight.
ANSI compatible with ASME Standards and API Standards
Best suited to cyclic pressure & thermal variation.

Other Alternatives: Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), custom machining, NACE compliance, and anti-corrosion coating depending on application end use.

Weld Neck Flanges Clients Project

The weld neck flange has been identified to be very reliable in stressful and high-temperature setting. The type of flange that is selected by industries is based on the fact that it offers high strength in the weld, accuracy of dimensions and high sealing performance. It usually gets welded to the neck of the pipe to create a smooth passage of flow to eliminate loss of pressure. In procurement, engineers consider media compatibility, temperature range, pressure class and facing flange to guarantee safe operation of the system.

Product Supplied	Quantity	Industry / Facility	Location (India)
SS 316 Weld Neck Flanges Class 300	121 Pieces	Offshore Platform	Mumbai
CS ASTM A105 Weld Neck Flanges Class 600	182 Pieces	Petrochemical Refinery	Vadodara
Alloy Steel F22 Weld Neck Flanges Class 900	94 Pieces	Power Generation Unit	Chennai
Duplex F51 Weld Neck Flanges Class 150	159 Pieces	Desalination Plant	Jamnagar

These flanges find extensive industry application in global b2b trade with refineries, petrochemical plants, offshore platforms, power generation and heavy process industries where safety and uptime are critical. The compatibility to international standard, simplicity in fabrication, and reliable service life even in case of cyclic loading and thermal fluctuations are valued by the customers. Our weld neck flanges are a strong, time-tested product with great weldability and very low maintenance requirements; whether you are renovating existing lines or installing new ones. We also suggest our high quality Slip On Flanges of the very brand to be used as a complement to space-constrained layouts.
