Monel K500 Sheet Manufacturer In India As Per Astm B622 Standard

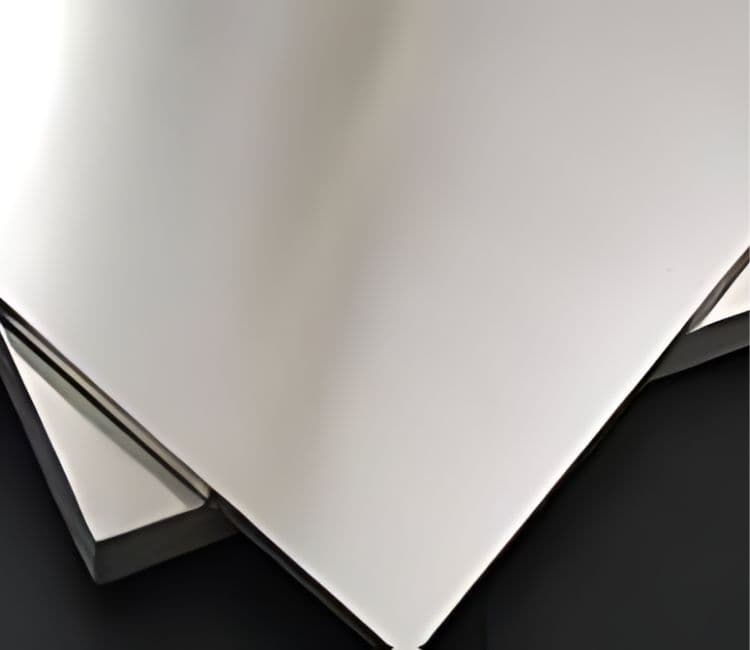

Monel k500 sheet manufacturer in india
$0.67 - $1.89

Minimum Order : 100 unit

Customization as per requirements

Specification Details
Size range1000 Mm X 2000mm, 1220mm X 2440mm, 4' X 8', 1250mm X 2500mm, 1500mm X 3000mm To 6000mm, 2000mm X 4000mm To 6000mm
Range5mm, 150mm
Thickness4.0mm, 100mm
SpecializeShim Sheet, Perforated Sheet

Monel K500 Sheet Manufacturer in India Supplying ASTM B164 / ASME SB164 Standard Sheets for Marine, Petrochemical & Chemical Industries

K500 Monel Sheet is widely employed in maritime engineering, aerospace, and chemical processing industries as well as in high-performance pump and valve components in which both mechanical and resistance to seawater corrosion are vital.
Its range also covers Monel Sheets used in a general corrosion-resistant application and Monel 400 Sheet used in seawater and chemical exposure environment.
Being a reliable Monel K500 Sheet Supplier In India, these sheets find huge applications in seawater equipment, desalination plants, chemical vessels, and offshore structures where the performance and durability are very important. We offer Nickel Alloy Sheets ideal for chemical processing, aerospace, power generation, and marine environments.

Material & Grades of Monel K500 Sheet

Monel K500 Sheet is produced under stringent quality controls to ensure uniform composition, high mechanical properties, and excellent corrosion resistance for demanding industrial and marine applications.

MaterialGrade / StandardUNS No.Thickness (mm)Width (mm)Typical Applications
Monel AlloyK500N055000.5 – 50.01000 – 2000Marine & offshore structures
Monel Alloy400N044000.5 – 50.01000 – 2000Seawater equipment
Monel Alloy405N044050.8 – 30.01000 – 1500Chemical processing units
Monel Alloy450N044501.0 – 25.01000 – 1500Aerospace & high-strength components

Key Features & Advantages

  • Superior strength and hardness for high-performance applications
  • Excellent resistance to seawater, acids, and chemical corrosion
  • Outstanding resistance to pitting and stress corrosion cracking
  • Good weldability and formability
  • Long service life in marine and industrial environments
  • Supplied in standard and custom sizes

Monel K500 Sheet Chemical Composition

Monel K500 Sheets are corrosion resistant due to the presence of carbon, silicon, sulfur, and other elements.

Monel K500 Sheet Chemical Composition
GradeNiFeCMnSiCuAlS
Monel K50063.0 min05 – 20.25 max1.5 max0.5 max27.0 – 33.02.3 – 3.150.010 max

Monel K500 Sheet Mechanical Properties

Mechanical Properties of Monel K500 Sheets are listed below to assist you understand the product's durability.

Monel K500 Sheet Mechanical Properties
GradeDensityMelting PointTensile Strength Psi, MpaYield Strength (0.2%Offset)Elongation
Monel K5008.44 g/cm31350 °C (2460 °F)1,60,000, 1100790 Mpa20 %

Monel K500 Sheet Equivalent Grade

Our dedication to quality guarantees that every Monel Sheet meet the highest standards, establishing us as a reliable Monel K500 Sheet Manufacturer in India.

Monel K500 Sheet Equivalent Grade
STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
Monel K5002.4375N05500–––––

Monel K500 Sheet Size Chart

Monel K500 Sheets may be customized in any thickness to meet the needs of the client; the table below shows the standard thickness of Monel K500 Sheet.

Monel K500 Sheet Size Chart
Width (mm)Length (mm)
914 & 12191828 & 2438
914, 1219 & 15001828, 2438, 3000, 3048 & 3658
12192438
1219 & 15002438, 3000 & 3658
1500 & 20003000 & 6000
914 & 12191828 & 2438
12502500
1250 & 15002500, 3000 & 6000


Type of Sub-products

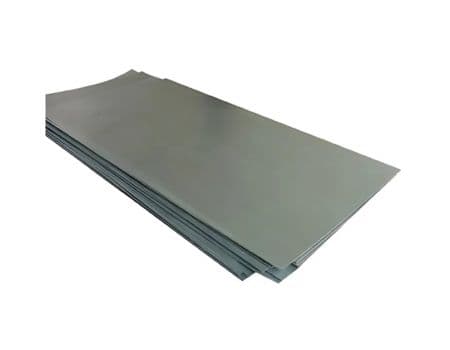

  • Monel K500 Polished Sheet
    Monel K500 Polished Sheet

    Monel K500 Polished Sheet

    Monel K500 Polished Sheet features a refined surface finish along with superior strength and corrosion resistance, making it suitable for both functional and aesthetic applications. Its durability and precision polish ensure long lasting performance in marine, chemical, and industrial environments.

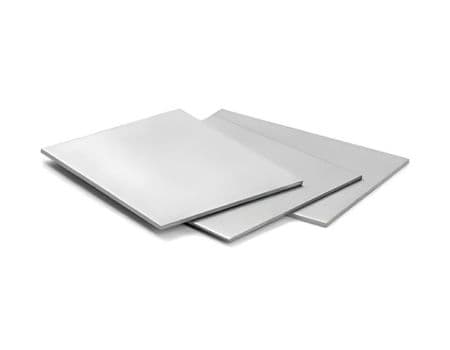

  • Monel K500 Shim Sheet
    Monel K500 Shim Sheet

    Monel K500 Shim Sheet

    Monel K500 Shim Sheet is designed for precision applications, offering excellent strength, corrosion resistance, and dimensional accuracy. Its thin profile makes it ideal for adjustments, insulation, and alignment in critical engineering and industrial setups.
