Button Head Cap Screws Manufacturer & Supplier | Ss 304 & Ss 316 Grade | Caliber Enterprise

Button Head Cap Screws Manufacturer & Supplier | Ss 304 & Ss 316 Grade | Caliber Enterprise

Specification Details
SizeM3 to M100
TypeBolt, Screw, Studs, Coated, Custom Fasteners
StandardDin, Iso, Gb, Bs, Astm, Is
Length1/8″, 4″
MaterialStainless Steel, Monel, Inconel, Nickel, Phosphor Bronze, Silicon Bronze, Incoloy

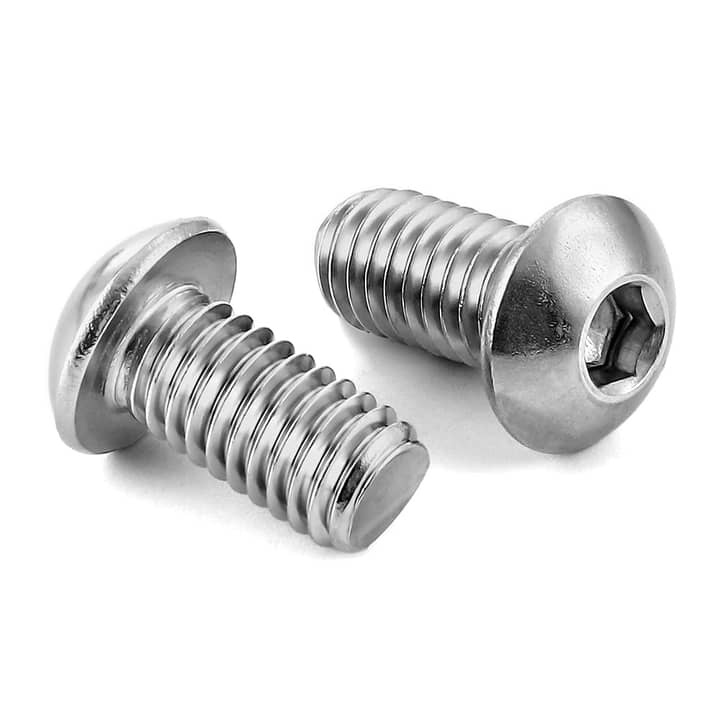

Button Head Cap Screws Manufacturer – ASTM F593 SS304/SS316

Caliber Enterprise is a leading Button Head Cap Screws Manufacturer in India, delivers solutions that are aimed at satisfying requirements in applications that demand both strength, good appearance, and dependable torque. These fasteners are conveniently designed with a low profile, rounded head, and a smooth surface of finish to be used in assemblies where space is a constraint and esthetic is a consideration. They are made of high quality stainless steel, alloy steel, and carbon steel, and this gives them a good corrosion protection, mechanical and dimensional reliability. Allen Grub Screws may be regarded as supplementing them in any precision assembly where compact fastening is required and secure locking needs to be achieved in tight areas.


Having a design able to work well with a constant load, constant vibration, and constant tightening, these screws find extensive application in machinery, automotive components, electronic housing, and industrial equipment. Their smooth shape of head is less snagging, yet has reliable clamping force and is long lasting. Hex Screws are often added as a complementary fastener to achieve flexibility in both structural and mechanical applications, where the application needs a higher transmissional torque and ease of access to the wrenches. With these fastening solutions, there is security in assembly, aesthetic appeal and uniform performance among a wide variety of industrial applications.


Material

Grade / Standard

Thread Size

Length Range (mm)

Head Diameter (mm)

Head Height (mm)

Drive Type

Thread Type

Tensile Strength

Approx. Weight (kg/1000 pcs)

Alloy SteelASTM A574M48–307.62.2Hex SocketMetric1200 MPa1.6
Alloy SteelASTM A574M610–5011.43.3Hex SocketMetric1200 MPa4.9
Stainless SteelA2-70M58–409.52.8Hex SocketMetric700 MPa3.2
Stainless SteelA4-80M816–6015.24.4Hex SocketMetric800 MPa11.8
Alloy SteelISO 7380M1020–8018.95.5Hex SocketMetric1200 MPa22.6

Button head cap screws are used in situations where the low-profile smooth head is needed to minimize snagging and provide high clamping forces which makes them suitable in machinery covers, automation, electronics enclosures, and precision assemblies. The broader and rounded head, when compared to the Socket Head Cap Screws, spreads load over a large surface area and provides a smaller visual appearance. In sourcing situations that center around B2B Leads, precise tabular data on head geometry, mechanical strength, and weight per order supply engineers and buyers with the right fastener to be used in space-constrained designs, allows torque to be compatible, and allows planners to inventory stock levels effectively used by the assembly system and maintenance system.

Key Features & Advantages

  • Low-profile rounded head provides a smooth finish
  • Internal hexagonal drive enables efficient tightening
  • Suitable for compact and restricted-clearance assemblies
  • Excellent dimensional accuracy and thread consistency
  • Stainless steel options provide good corrosion resistance
  • High-strength grades support demanding mechanical applications
  • Available in customized sizes, grades, coatings, and finishes

Chemical Composition

Representative Grade: Stainless Steel 304

ElementPercentage (%)
Chromium (Cr)18.0–20.0
Nickel (Ni)8.0–10.5
Manganese (Mn)2.00 max.
Carbon (C)0.080 max.
Silicon (Si)1.00 max.
Iron (Fe)Balance

Mechanical Properties

PropertyValue
Tensile Strength515 MPa min.
Yield Strength205 MPa min.
Elongation40% min.
Hardness92 HRB max.

Equivalent Grade

StandardGrade
ASTMF879 Type 304
UNSS30400
EN1.4301
DINX5CrNi18-10



Type of Sub-products

Frequently Asked Questions

Which grades are available for Stainless Steel 304/316 Button Head Cap Screws?

What specifications are available for Stainless Steel 304/316 Button Head Cap Screws?

How do I select the right Stainless Steel 304/316 Button Head Cap Screws?

Are Stainless Steel 304/316 Button Head Cap Screws suitable for corrosive environments?

Where are Stainless Steel 304/316 Button Head Cap Screws commonly used?

Can I place a bulk order for Stainless Steel 304/316 Button Head Cap Screws?

How can I request a quotation for Stainless Steel 304/316 Button Head Cap Screws through PipeX.ai?
