High Integrity Dutch Wire Mesh Manufacturer & Supplier | Stainless Steel Grade | Bhansali Wire Mesh
| Standard | Astm A580, A493 / Asme Sa580 |
|---|---|
| Length | 0.125", 72 |
| Diameter | 10 Microns 1.0 Mm |
| Technique | Cold Rolled, Hot Rolled |

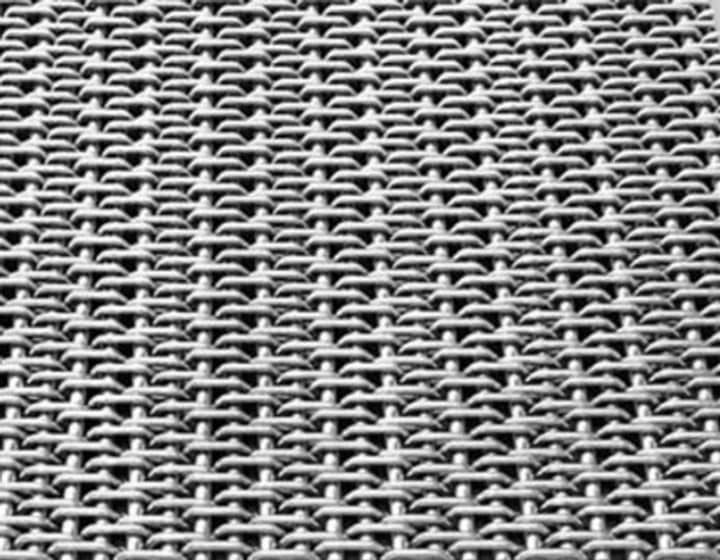

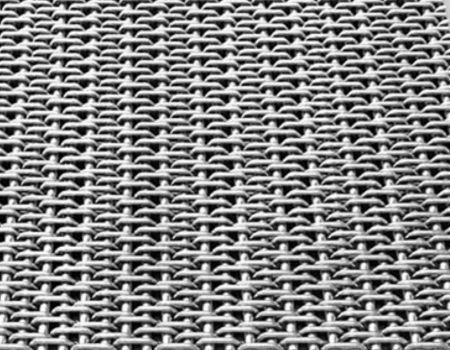

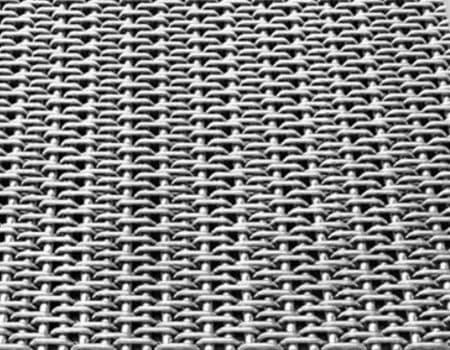

Dutch Wire Mesh Manufacturer In India
Bhansali Wire Mesh is a reputed brand and a leading Dutch Wire Mesh Manufacturer, that provides high-quality woven wire mesh products aimed at high-precision filtration and fine separation use. High-tensile stainless steel wires are used to make these meshes and offer them durability, corrosion resistance, and very high mechanical strength. The Dutch wire mesh guarantees a high level of retention and a steady flow of the particles with the technique of advanced weaving, which is used in petrochemical, pharmaceutical, and water treatment industries.
B2B marketing is key in the competitive industrial market to link businesses to trusted partners that rely on Dutch wire mesh for their production systems. The sub-products include one of the main products, the Expanded Metal Mesh, which has richer warp wires and finer weft wires, with a high level of mechanical stability and high-pressure resistance. This kind of mesh is commonly employed in extrusion, polymer filtration, and fine separation systems where accuracy and robustness are very crucial.
Dutch Wire Mesh – Weight Chart
| Mesh Size (Warp × Weft) | Wire Diameter (mm) | Mesh Width (mm) | Weight per Meter (kg/m) | Total Weight (kg) – 10 m Roll |
|---|---|---|---|---|
| 12 × 64 | 0.50 × 0.30 | 1000 | 4.80 | 48.00 |
| 14 × 88 | 0.45 × 0.28 | 1000 | 5.60 | 56.00 |
| 20 × 150 | 0.35 × 0.25 | 1000 | 6.90 | 69.00 |
| 24 × 200 | 0.30 × 0.22 | 1000 | 8.10 | 81.00 |
| 30 × 250 | 0.25 × 0.20 | 1000 | 9.40 | 94.00 |
Dutch Wire Mesh is common in filtration and separation applications that involve the need to have a high degree of control in terms of particle retention and high mechanical integrity. It is widely used in the processing of chemicals, hydraulics, and polymer filtrations. The weight chart plays an important role in the identification of load capacity, pressure resistance, and handling requirements. Correct weight data enables proper material choice, planning of installation, and cost estimation in industrial use.
Key Features & Advantages
- Excellent fine-particle filtration capability
- High mechanical strength despite fine openings
- Suitable for high-pressure filtration applications
- Good resistance to backwashing and repeated cleaning

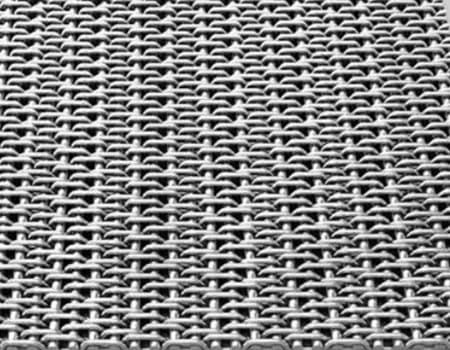

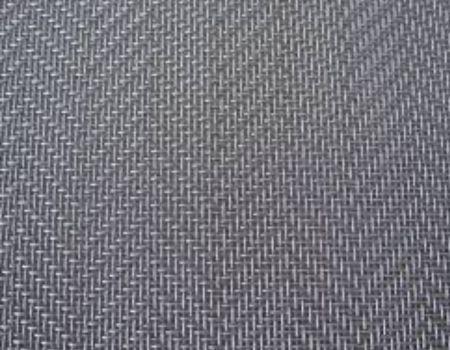

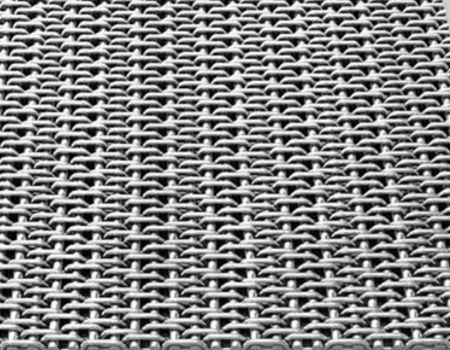

- Available in plain Dutch, twilled Dutch, and reverse Dutch designs
- Excellent corrosion resistance with suitable alloy selection
- Customizable filtration ratings, wire diameters, and dimensions
Chemical Composition
Representative Grade: Stainless Steel 316L
| Element | Percentage (%) |
| Chromium (Cr) | 16.0–18.0 |
| Nickel (Ni) | 10.0–14.0 |
| Molybdenum (Mo) | 2.0–3.0 |
| Manganese (Mn) | 2.00 max. |
| Carbon (C) | 0.030 max. |
| Iron (Fe) | Balance |
Mechanical Properties
| Property | Value |
| Tensile Strength | 485 MPa min. |
| Yield Strength | 170 MPa min. |
| Elongation | 40% min. |
| Hardness | 95 HRB max. |
Equivalent Grade
| Standard | Grade |
| ASTM | 316L |
| UNS | S31603 |
| EN | 1.4404 |
| DIN | X2CrNiMo17-12-2 |
Type of Sub-products
Frequently Asked Questions
Which material should I choose for Dutch Wire Mesh?
Which industries use Dutch Wire Mesh?
What standards does Dutch Wire Mesh comply with?
How can I select suitable Dutch Wire Mesh?
Does Bhansali Wire Mesh manufacture customized Dutch Wire Mesh?
How do I request a quote for Dutch Wire Mesh?
