Specification Details
Material	Ptfe (polytetrafluoroethylene), Graphite
Temperature Range	Operating Temperature: 200°c To 800°c (depending On Material), Maximum Temperature For Graphite: 300°c

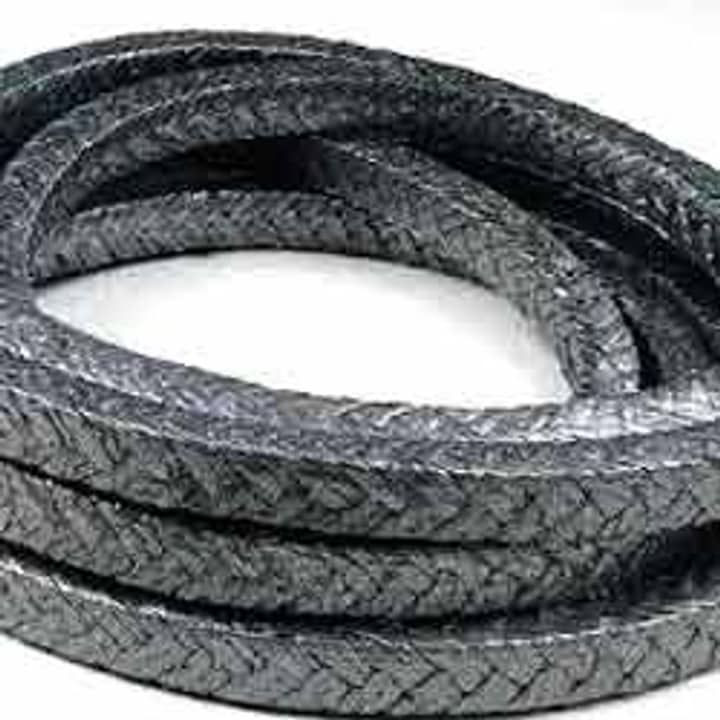

Graphite Braided Gland Packing Manufacturer | Flexible Graphite Packing

Petromet Sealings is known for being a trusted Graphite Braided Gland Packing manufacturer. It is used for providing sealing solutions in various industries. It is a high-performance material used for sealing in pumps, valves, and various equipment in industries where high temperatures and pressures are involved. It is made up of flexible graphite yarns, which have high thermal conductivity, chemical resistance, and low friction properties. In essence, it is used as a replacement for conventional sealing materials in industries. Asbestos Replacement Gland Packing is used because it is safe and eco-friendly.

Graphite Braided Gland Packing is made according to international standards. It is used for providing leak-proof sealing in industries. It has a high potential for being used for a longer period, even in harsh conditions. It is commonly obtained from a trusted b2b marketplace for various industries like oil & gas, power plants, and chemical plants. It can be used in pumps, valves, agitators, and mixers, where sealing is required at high pressures and temperatures. It has self-lubricating properties, which help in reducing friction in equipment. It is flexible, making it easy to install in equipment.

Material & Grades Table – Graphite Braided Gland Packing

Material	Grade	Standard	OD (mm)	Thickness (mm)	Weight (kg/m)
Graphite	Pure Graphite	ASTM F2168	4 – 50	3 – 25	As per size
Graphite	Reinforced Graphite	ASTM F2191	6 – 50	5 – 25	As per size
Graphite	Graphite with Inconel Wire	API 622	8 – 50	5 – 30	As per size
Graphite	Flexible Graphite	ASTM F1315	4 – 40	3 – 20	As per size
Graphite	Carbon Graphite Blend	DIN 28090	6 – 50	5 – 25	As per size

The above table shows the commonly used materials and grades of Graphite Braided Gland Packing, their dimensions, and their standards. These specifications can be used in choosing the right type of packing according to the working conditions, such as temperature, pressure, etc.
