Instrumentation Pipes And Tubes Small Bore Line Products For Accurate Control And Signal Transmission Supplier In Dubai Uae

Name: Instrumentation Pipes And Tubes Small Bore Line Products For Accurate Control And Signal Transmission Supplier In Dubai Uae
Brand: Star Tubes & Fittings
Availability: InStock
Rating: 4 (1 reviews)

Specification Details
Specifications	Asme, Astm, Din, Nfa, Jis
Thickness	100mm, 4.0mm
Pipes Size	1/8” Nb, 24” Nb, 1/4” Od, 24” Od Sizes
Tubes Size	1/2″ Od, 8″ Od
Length:	Fix Length, Single Random, Double Random, Required Length, Cut Length
End	Threaded, Beveled End, Plain End

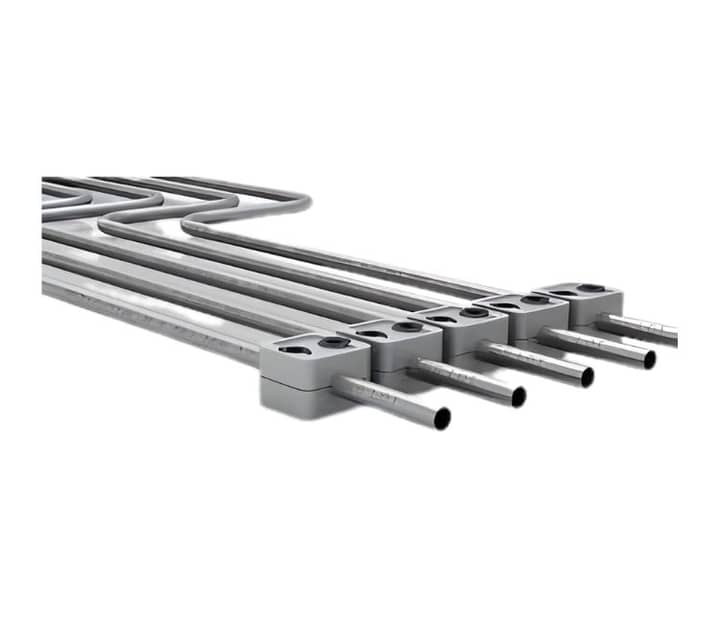

Instrumentation Pipes and Tubes Used for Process Measurement Control Systems and Analyzer Connections in Dubai

Star Tubes & Fittings is reputed to provide sound piping solutions that help to drive accuracy, safety and consistency of operation in industrial systems. The company as an Instrumentation Pipes and Tubes Supplier in Dubai specializes in products that are designed to be used in the accurate measurement, control and transmission of signals. These pipes and tubes are mainly used in oil and gas, chemical processing plants, power plant and refinery where a consistent flow and non-leaky connection is needed. Tolerances are controlled and the internal surfaces are smooth and this assists in keeping the readings accurate and reliable. Their capacity to work under different pressure and temperature conditions, makes them fit in the industrial environment which has demanding conditions.

The offering also incorporates Box Pipes and Tube to satisfy the needs of various types of installation with both structural strength and dimensional stability needed in addition to flow support. These products are appreciated as being manufactured in a consistent manner, their durability and their ability to be easily fabricated in industrial arrangements. They help to achieve efficient system layout and a high life span of processing facilities. A lot of customers are on the lookout of having a trusted B2B Portal that would help ease the sourcing and bulk procurement. This will contribute to the maintenance of quality, supply on time, and a flawless execution of any project in the various fields.

Dimensions & Size Chart

Outside Diameter (OD)	Wall Thickness	Standard Length	Finish	Standard
1/8" (3.18 mm)	0.035" / 0.049"	6 m	Seamless / Bright Annealed	ASTM A269
1/4" (6.35 mm)	0.035" / 0.049"	6 m	Seamless / Bright Annealed	ASTM A269
3/8" (9.53 mm)	0.035" / 0.049" / 0.065"	6 m	Seamless / Bright Annealed	ASTM A269
1/2" (12.70 mm)	0.049" / 0.065"	6 m	Seamless / Bright Annealed	ASTM A269
3/4" (19.05 mm)	0.065" / 0.083"	6 m	Seamless / Bright Annealed	ASTM A269
1" (25.40 mm)	0.065" / 0.083"	6 m	Seamless / Bright Annealed	ASTM A269

Mechanical Properties

Grade	Tensile Strength (Min)	Yield Strength (Min)	Elongation	Hardness	Equivalent Grades
ASTM A269 TP304	515 MPa	205 MPa	35%	≤201 HB	EN 1.4301, UNS S30400
ASTM A269 TP304L	485 MPa	170 MPa	35%	≤201 HB	EN 1.4307, UNS S30403
ASTM A269 TP316	515 MPa	205 MPa	35%	≤217 HB	EN 1.4401, UNS S31600
ASTM A269 TP316L	485 MPa	170 MPa	35%	≤217 HB	EN 1.4404, UNS S31603
ASTM A789 S31803	620 MPa	450 MPa	25%	≤290 HB	EN 1.4462, UNS S31803
ASTM B622 UNS N10276	690 MPa	283 MPa	40%	≤100 HRB	Alloy C276, UNS N10276

Type of Sub-products

Frequently Asked Questions

What are instrumentation pipes and tubes?

What materials are commonly used for instrumentation tubes and pipes?

What is the difference between seamless and welded instrumentation tubing?
