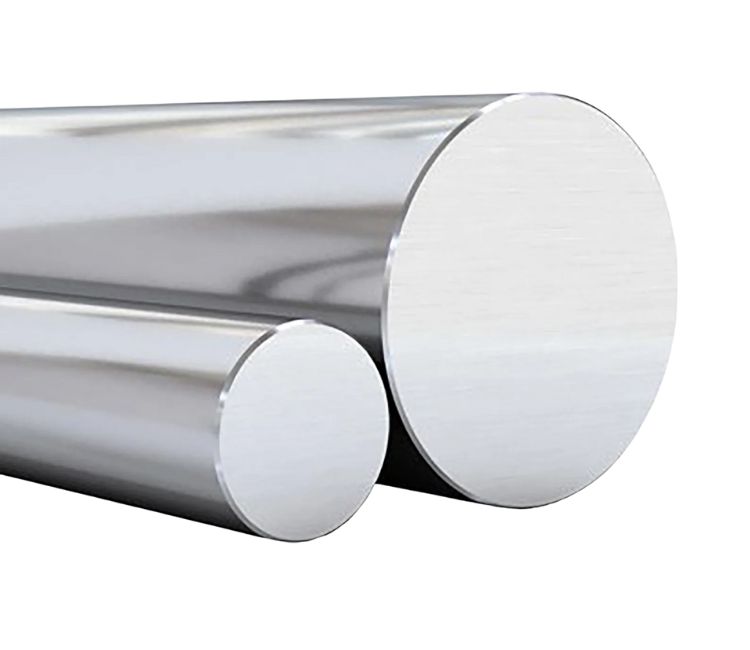

Monel Round Bar, Corrosion Protection, Pump Shafts

Name: Monel Round Bar, Corrosion Protection, Pump Shafts
Brand: Sagar Steel Corporation
Availability: InStock
Rating: 5 (24 reviews)

Specification Details
Size Range	6 mm to 200 mm
Length	1-6meter
Standards	Astm, Asme, Din, Nf, Jis, En
Finished	Black, Bright, Cold Drawn, Polish, Polished, Centreless Ground

Monel Round Bar Manufacturer in India

Sagar Steel Corporation is a major Monel Round Bar manufacturer that produces high-quality bars using high-performance nickel-copper alloys like Monel 400 and Monel K500. These bars are said to be of high strength, high durability, and high resistance to adverse chemicals, acids, and seawater. Our Monel bars are of international quality, such as ASTM, DIN, and ISO, and can be used to address critical needs in the chemical processing, oil and gas, offshore, marine, and power generation industries. We also provide Round Bar to meet other industrial needs.

Monel Round Bars – Material & Grade Table

Material	Common Grade / UNS No.	Typical Composition	Applications
Monel	Monel 400 – N04400	~67% Ni, 30% Cu, balance Fe, and trace elements	Marine equipment, chemical processing, heat exchangers, valves, pumps
Monel	Monel K500 – N05500	~63% Ni, 28–34% Cu, Al + Ti for hardening	Aerospace, marine shafts, high-strength components, seawater fittings

Monel‍‌‍‍‌‍‌‍‍‌ 400 round bars are made from corrosion-resistant nickel-copper alloys, which make them the perfect choice for use in the marine, chemical, and industrial sectors. The size and weight chart offers precise size and weight information both in metric and imperial units, thus facilitating the quick specification review and appropriate bar selection by B2B platforms for the realization of the construction, machinery, and offshore projects. Consequently, this provides the making of the material plan to be efficient, the load calculations to be accurate, and the performance to be stable even in the most challenging ‍‌‍‍‌‍‌‍‍‌environments.

Monel Round Bars – Dimensional & Weight Reference Guide

The chart below offers a general weight and size reference for Monel Round Bars produced in accordance with common industrial specifications. These values are approximate and intended for estimation, inventory planning, machining calculations, and engineering applications. Actual dimensions and weights may differ slightly depending on alloy grade, tolerance, and manufacturing process.

Monel Round Bars

Nominal Diameter	Diameter (MM)	Standard Length (Mtr)	Approx. Weight Per Meter (Kg)	Estimated Weight (6 Mtr Bar) (Kg)
10 MM	10	6	0.62	3.7
12 MM	12	6	0.89	5.3
16 MM	16	6	1.58	9.5
20 MM	20	6	2.47	14.8
25 MM	25	6	3.86	23.1
32 MM	32	6	6.31	37.8
40 MM	40	6	9.86	59.1
50 MM	50	6	15.42	92.5
65 MM	65	6	26.05	156.3

Our Monel round bars are manufactured using premium nickel-copper alloy materials to ensure superior resistance against seawater corrosion, acidic environments, and high-temperature applications. Widely used in marine engineering, chemical processing, oil & gas industries, and heat exchangers, these bars deliver excellent mechanical strength, durability, and long service life.

Each bar undergoes strict quality checks and precision finishing to maintain dimensional accuracy and consistent performance. Available in multiple grades, finishes, and custom-cut sizes, Monel round bars are suitable for demanding industrial and structural applications where reliability is essential.
