Screwed Equal Tee Manufacturer & Supplier | Astm A105, Ss 304 & 316 Grades | Bharat Steel Tech
| Size | ½ Nb, 48nb. |
|---|---|
| Type | Erw, Seamless |

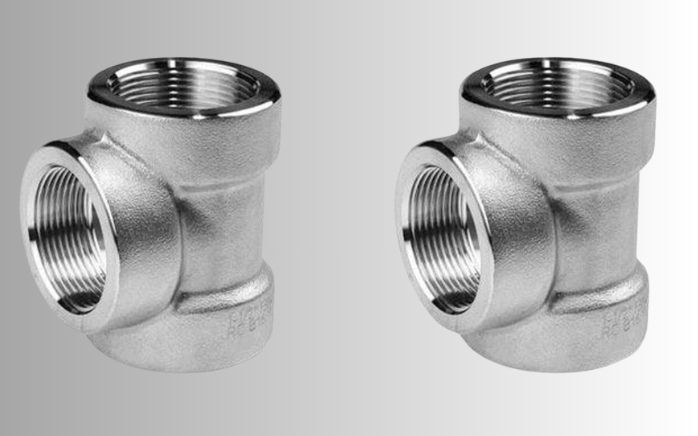

Screwed Equal Tee Manufacturer | Stainless Forged Tee ASTM A182 F304 F316
Bharat Steel Tech is known as a reputed Screwed Equal Tee Manufacturer, providing excellent quality screwed equal tees for industrial piping systems. Screwed Equal Tee is used to join 3 pipes of equal diameter so that there is a smooth flow distribution in plumbing, petrochemical, gas, and fluid transfer systems. These fittings are precision threaded to provide leak-proof connections, minimal installation hassles, and reliable performance under pressure conditions. Screwed Reducing Tee fittings are also popularly used in piping systems that need to reduce the size of the branch lines, as they are compact and provide efficient flow control. Screwed Equal Tee fittings come in a range of materials, pressure ratings, and dimensional standards for industrial and commercial use.
Screwed Equal Tee fittings are manufactured to ASTM, ASME, DIN, and ANSI dimensional and material specifications for superior strength, corrosion resistance, and durability in critical operating conditions. They are often provided by a trusted b2b marketplace for EPC contractors, fabrication companies, and industrial buyers across the globe. For high-pressure piping assemblies that must be welded, Socket Weld Reducing Tee fittings are also used for their strong joint integrity and compact assembly. Screwed Equal Tee fittings are widely utilized in water supply, chemical plants, oil & gas pipelines, steam lines, and process equipment used in industry where secure fluid distribution is a critical requirement. For compact piping systems that need to change direction, 90° Socket Weld Elbow fittings are also frequently chosen for their ability to provide a secure fit and effective flow control.
The following table underscores some of the more frequently ordered materials, grades, standards, and dimensions for use with Screwed Equal Tee Connectors in industrial piping applications. Manufactured for the purposes of secure threaded connections, excellent pressure handling capability, corrosion resistance, and reliable fluid distribution performance, these fittings are suitable for use in oil & gas pipelines, chemical plants, water systems, steam lines, and industrial process applications.
Material & Grades Table – Screwed Equal Tee
| Material | Grade / Standard | Size / Thickness / Diameter | Extra Specification | Weight (kg/pcs) |
|---|---|---|---|---|
| Stainless Steel | SS 304 / ASTM A182 | 1/8"–4" | General-purpose corrosion-resistant threaded tee | Approx. 0.03–5.50 |
| Stainless Steel | SS 316 / ASTM A182 | 1/8"–4" | Marine and chemical applications | Approx. 0.03–5.50 |
| Stainless Steel | SS 316L / ASTM A182 | 1/8"–4" | Low-carbon corrosion-resistant construction | Approx. 0.03–5.50 |
| Carbon Steel | ASTM A105 | 1/8"–4" | Forged carbon steel threaded fitting | Approx. 0.03–6.00 |
| Alloy Steel | ASTM A182 F11 | 1/2"–4" | Elevated-temperature service | Approx. 0.05–7.00 |
| Alloy Steel | ASTM A182 F22 | 1/2"–4" | High-temperature and pressure applications | Approx. 0.05–7.00 |
| Brass | ASTM B16 | 1/8"–4" | Plumbing and general service applications | Approx. 0.03–5.50 |
| Nickel Alloy | ASTM B564 | 1/8"–4" | Corrosive and specialized process applications | Approx. 0.04–6.00 |
Key Features & Advantages
- Three-way equal-size connection for branch piping
- Internal threaded ends enable convenient installation
- No welding equipment required for threaded assembly
- Excellent dimensional accuracy and thread consistency
- Stainless steel grades provide strong corrosion resistance
- Available for different pressure and temperature requirements
- Suitable for plumbing, process piping, chemical, and industrial systems
Chemical Composition
Representative Grade: Stainless Steel 316
| Element | Percentage (%) |
|---|---|
| Chromium (Cr) | 16.0–18.0 |
| Nickel (Ni) | 10.0–14.0 |
| Molybdenum (Mo) | 2.0–3.0 |
| Manganese (Mn) | 2.00 max. |
| Carbon (C) | 0.080 max. |
| Iron (Fe) | Balance |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 515 MPa min. |
| Yield Strength | 205 MPa min. |
| Elongation | 40% min. |
| Hardness | 95 HRB max. |
Equivalent Grade
| Standard | Grade |
|---|---|
| ASTM | A182 F316 |
| UNS | S31600 |
| EN | 1.4401 |
| DIN | X5CrNiMo17-12-2 |
Type of Sub-products
Frequently Asked Questions
Which material should I choose for a Screwed Equal Tee?
What is the difference between Stainless Steel 304 and 316 Screwed Equal Tees?
What specifications are important when sourcing Screwed Equal Tees?
Can Screwed Equal Tees be used for different industrial piping applications?
Can Bharat Steel Tech supply Screwed Equal Tees according to project requirements?
How can I request a quotation for Screwed Equal Tees through PipeX.ai?
