Square Bolts Manufacturer & Supplier | Stainless Steel Grades | Caliber Enterprise

Name: Square Bolts Manufacturer & Supplier | Stainless Steel Grades | Caliber Enterprise
Brand: Caliber Enterprise
Availability: InStock
Rating: 4 (19 reviews)

Specification Details
Size	M3 to M100
Type	Bolt, Threaded Rod, Studs, Coated
Standard	Din, Iso, Jis, Gb, Is, Bs, Astm
Length	1/8″, 4″
Material	Stainless Steel, Monel, Phosphor Bronze, Inconel, Incoloy, Hastelloy, Nickel, Silicon Bronze

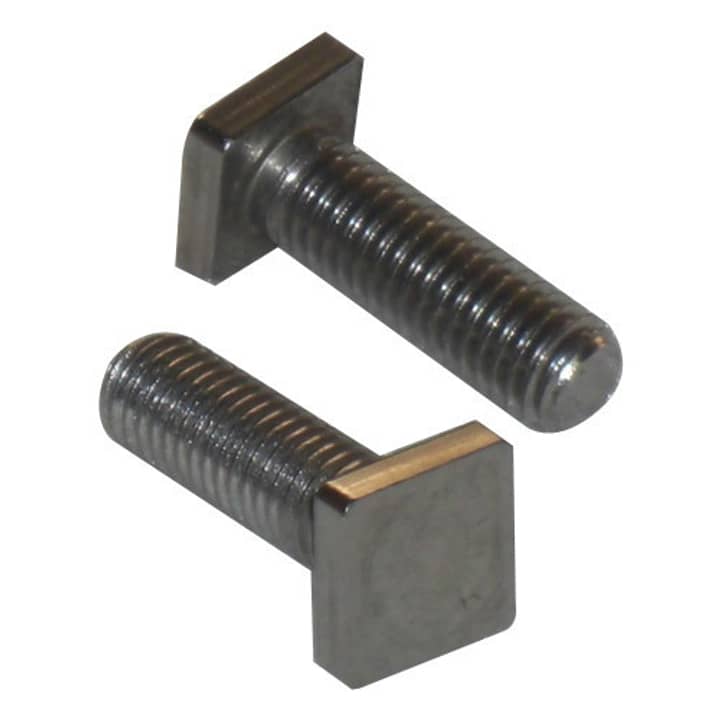

Square Bolts Manufacturer – ASTM A193

Caliber Enterprise is one of the leading Square Bolts Manufacturer in India, that provides fastening solutions that are urged to be used in heavy-duty industrial use to be strong, stable, and reliably work. Construction structures, machinery assembly, and industrial frameworks are some of the other areas of application of Square Bolts, which are designed with a square head that gives it the advantage of better grip and reduced slippage during installation. These bolts are manufactured with high-quality steel and alloy materials, which provides them with high load bearing capacity, resistance against corrosion and long durability. In assembling fastening applications that require rapid manual tightening and frequent adjustments, Wing Nuts are as well widely utilized in combination with square bolts to aid in the ease of installations and efficiency of the operations in the assembly work.

Designed to work reliably in mechanical loads and where the environment is hostile, Square Bolts provide certain fastening and structural integrity in the most demanding jobs. Their strong building renders them to be used in projects with vibration, heavy loads as well as repetition. Shoulder Bolts are commonly used as a secondary fastener when high accuracy and constrained movement is needed between assemblies and when it is necessary to maintain a certain level of spacing between parts during assembly; this is to ensure the other components are fastened in the most effective way. These fastening solutions combined will result in reliable operation, lower maintenance needs and extended service life of industrial, mechanical and structural installations.

Square Bolts – Technical & Material Specification Table

Material	Grade / Standard	Bolt Type	Shank Diameter (mm)	Head Size (mm × mm)	Length Range (mm)	Thread Type	Surface Finish	Approx. Weight (kg/100 pcs)
Carbon Steel	ASTM A307 Gr A	Square Head Bolt	10	16 × 16	30–150	Metric / UNC	Black	8.2
Carbon Steel	IS 1363	Square Head Bolt	16	24 × 24	40–200	Metric	Hot Dip Galvanized	19.6
Alloy Steel	ASTM A193 B7	Square Head Bolt	20	30 × 30	50–250	UNC	Plain	36.4
Stainless Steel	ASTM F593 304	Square Head Bolt	12	19 × 19	35–180	Metric	Plain	12.1
Stainless Steel	ASTM F593 316	Square Head Bolt	24	36 × 36	60–300	Metric	Plain	68.9

Usage Area: Usage Structural joints, heavy equipment bases, steel structures: This type of fastening is mostly used in structural joints, heavy machinery bases, and steel structures in which hard seating and resistance to rotation are needed during tightening

Quality in Manufacturing: Made with square heads of proper shape giving it more wrench grip and distribution of the load, which minimizes chances of slippage at high tightening force.

Material /Grades: It comes in Mild steel, Carbon steel and Alloy steel grades with options of IS1364, ASTM A307 and ASTM A325 grade depending on the load carrying.

Other Attributes: The square head style is also very appropriate in maintenance intensive environments because it is easy to loosen despite years of service or corrosion of the surface.

The square bolts are mostly applied in the old buildings, railway structures, timber formations and industrial machines where it is needed to have anti-rotation behavior and large torque requirements. The square head profile has enhanced grip in recessed slots and does not turn when tightening and is therefore applicable in applications that require a high level of maintenance and also in the replacement of old installations. On the B2B portal, lengthy tables will be used to list the dimensions of the head, the weight per quantity of shank, and size, enabling engineers and purchasing teams to determine compatibility with existing designs, make correct measurements of handling loads, and obtain fasteners of the correct size and type based on the engineers and purchasing teams requirements.
